171′ 8″ Palmer Johnson 2010/2019 DB9





Length: 171′ 8″ (52.32)
Beam: 31′ 3″ (9.53m)
Draft: 7′ 11″ (2.41m)
Year: 2010
Refit: 2019
Builder: Palmer Johnson
Model: Sport Yacht 170
Hull Configuration: Semi Displacement
Hull Material: Aluminum
Gross Tonnage: 495
Flag: Cayman Islands
Engines: 2x MTU Model: 16V 4000 M93L
Fuel: 59308 / 15667.52
Water: 6900 / 1822.79
Cruising speed: 18 Knots
Max speed: 32 Knots
Staterooms: 5
Guests: 12
Total Crew: 11
Location: Sardinia, Italy

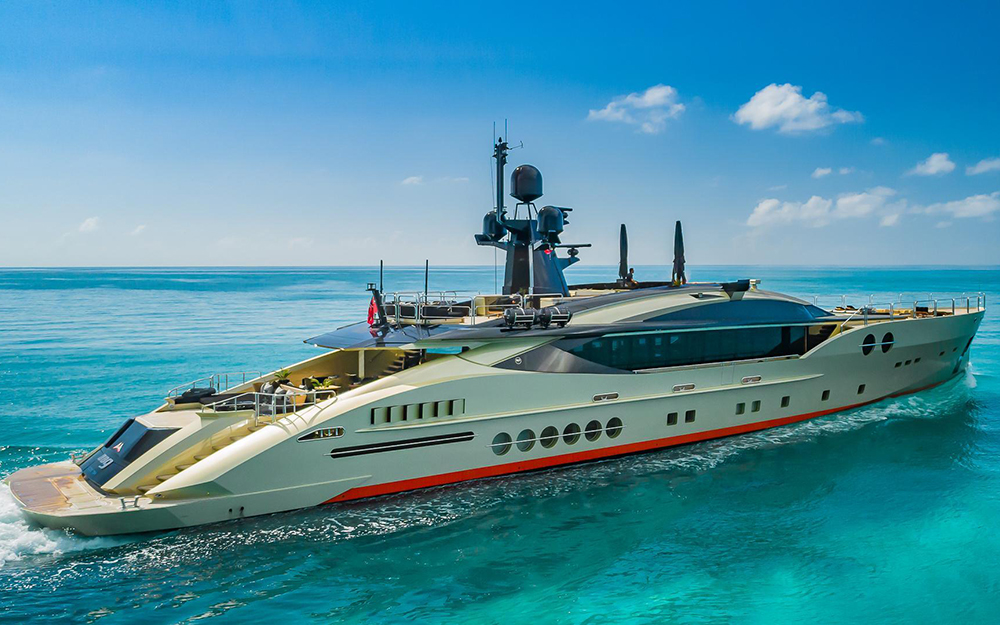

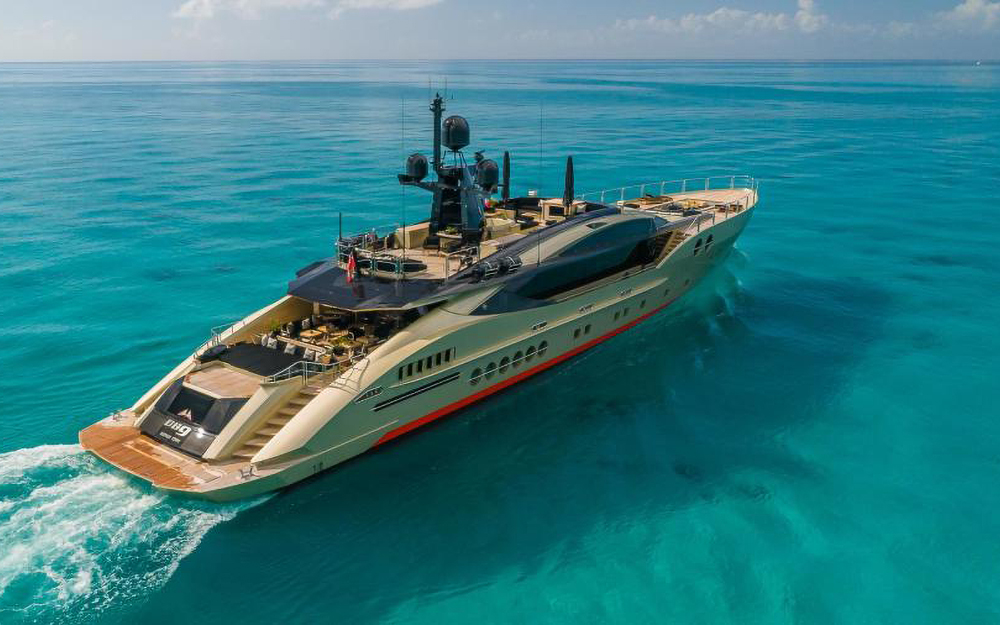

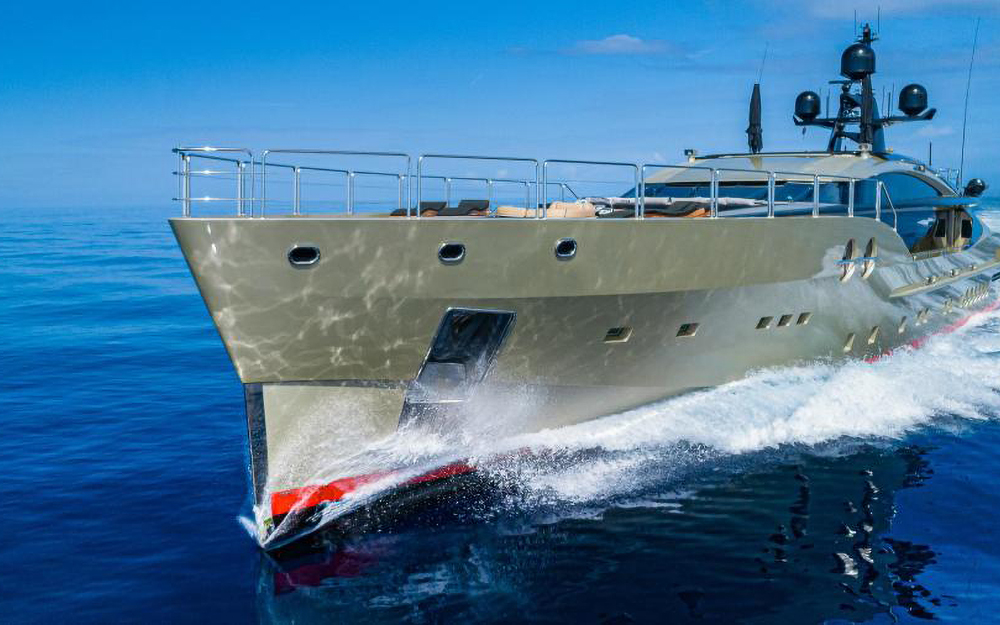

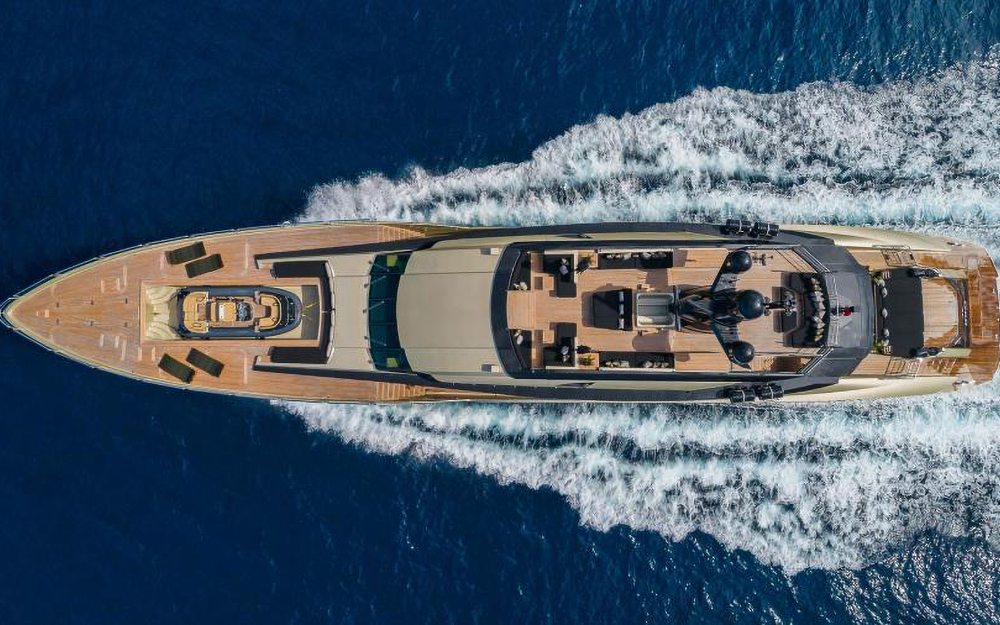

The groundbreaking PJ 170 Sport Yacht is Palmer Johnson’s even more sensational upgrade to the 150’ model preceding her. “DB9” is a sleek 52m/171’ superyacht and the only yacht of the series, of 3, to feature an open sundeck for a sleek and aggressive profile while keeping her under 500GT. DB9’s sweeping curves and striking metallic champagne exterior ensure she turns heads wherever she travels.

The timeless styling from Nuvolari & Lenard offers a sleek profile paired with an elegant contemporary interior and is one of the largest sport yachts afloat. Setting new standards in comfort and luxury, her highlights include a full-beam Owner’s suite, three separate pool areas, plus a fabulous open-air cinema on the sundeck.

With accommodation for 12 guests across her 5 luxurious staterooms, DB9’s interior layout is both spacious and versatile for an exceptional owner and guest experience. She also has accommodations for her dedicated and professional 11-person crew on the lower deck.

Key Features
Sleeps 12 in 5 cabins with 11 in crew
Full metallic “Champagne” exterior paint with 5 clear coats (2019)
Zero speed stabilizers and speeds to 30kts
25’/8m foredeck pool + transom aft facing jacuzzi pool + hot tub on flybridge

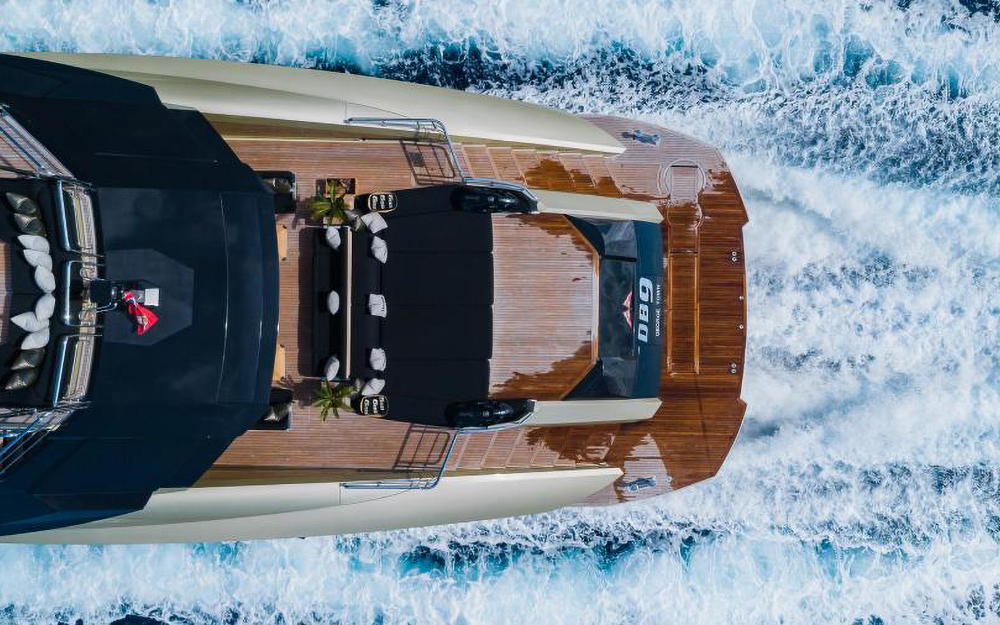

Aft Deck

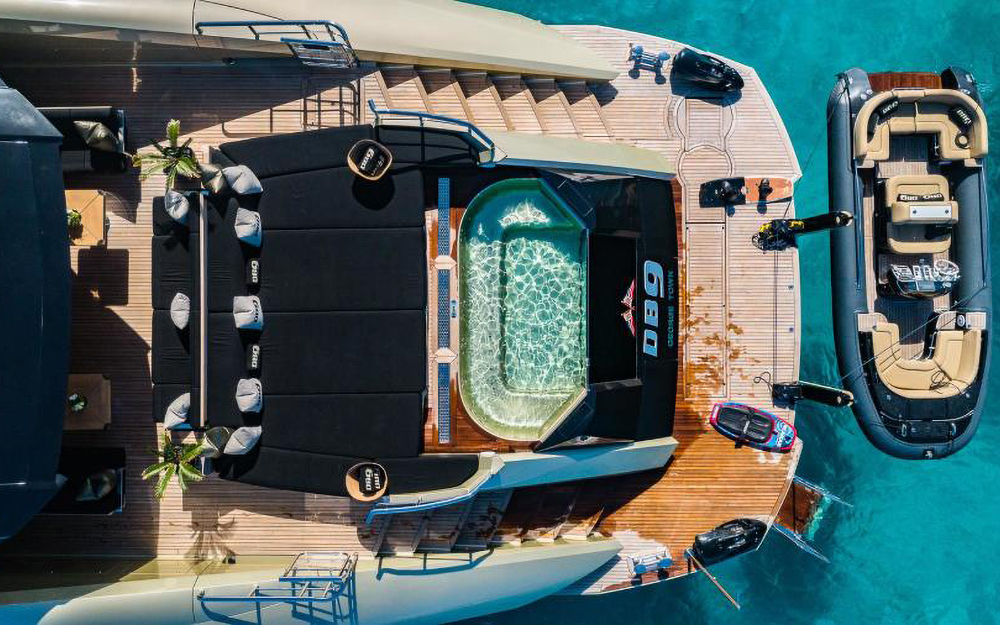

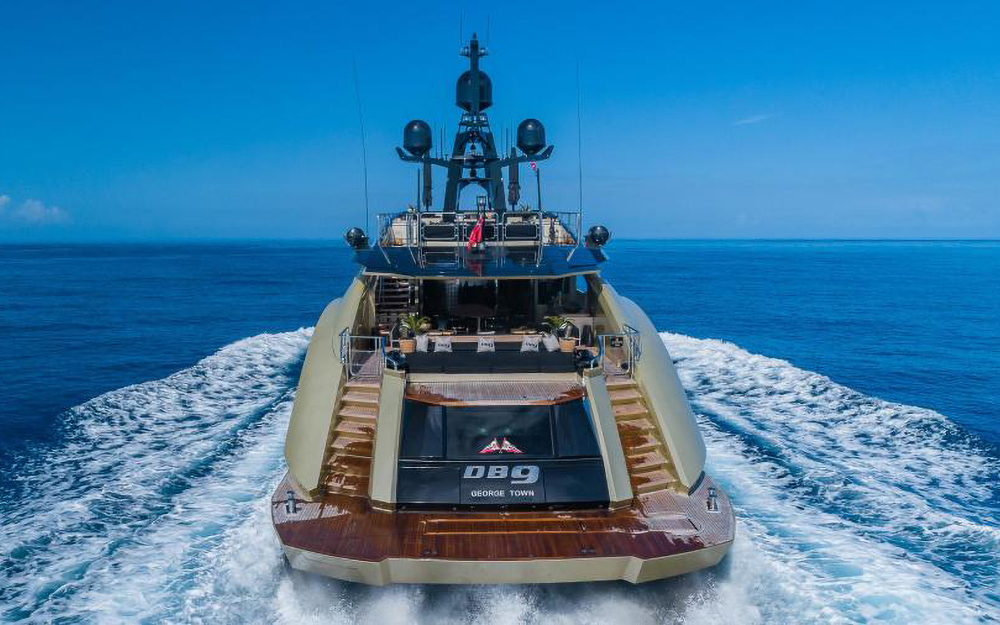

Designed to enhance the outdoor lifestyle, DB9’s aft deck offers direct access to the water when swimming or using her impressive collection of water toys. The integral teak clad swim-platform houses a hidden “pop-up” Passarelle that affords boarding from aft or the starboard side dock. It can also be used as a diving platform when at anchor.

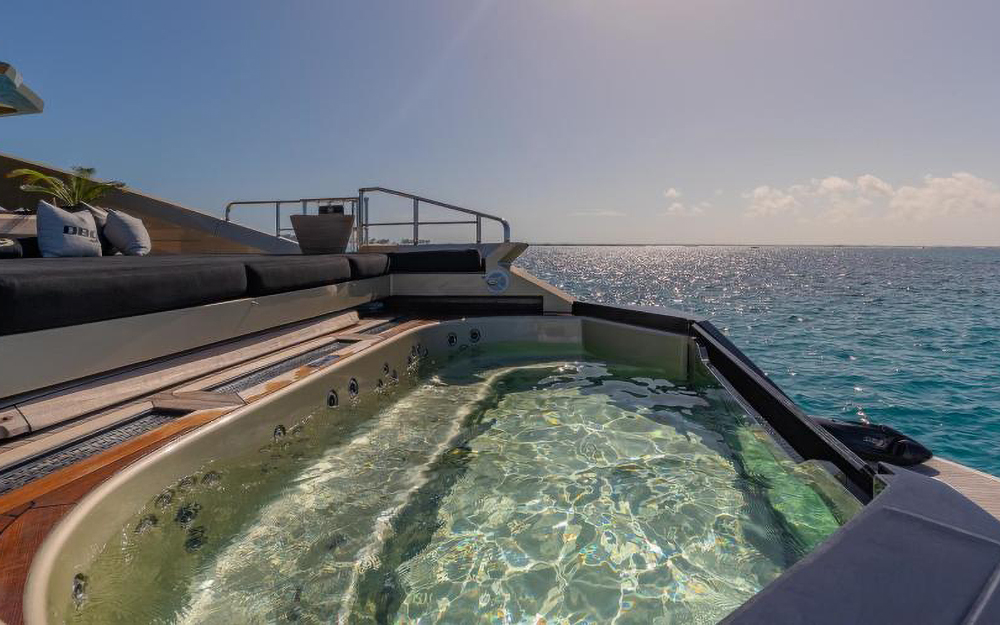

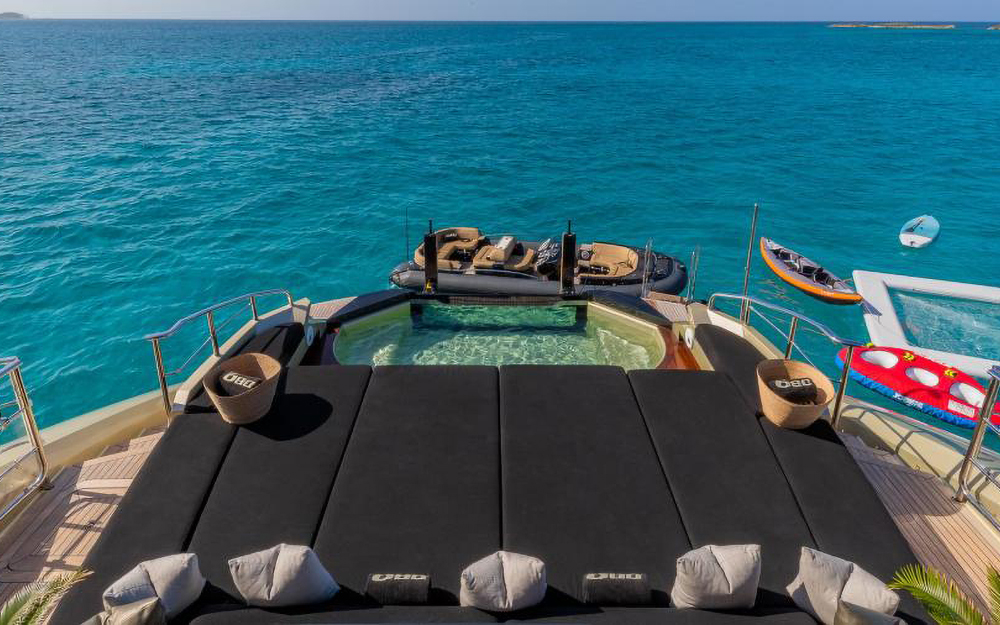

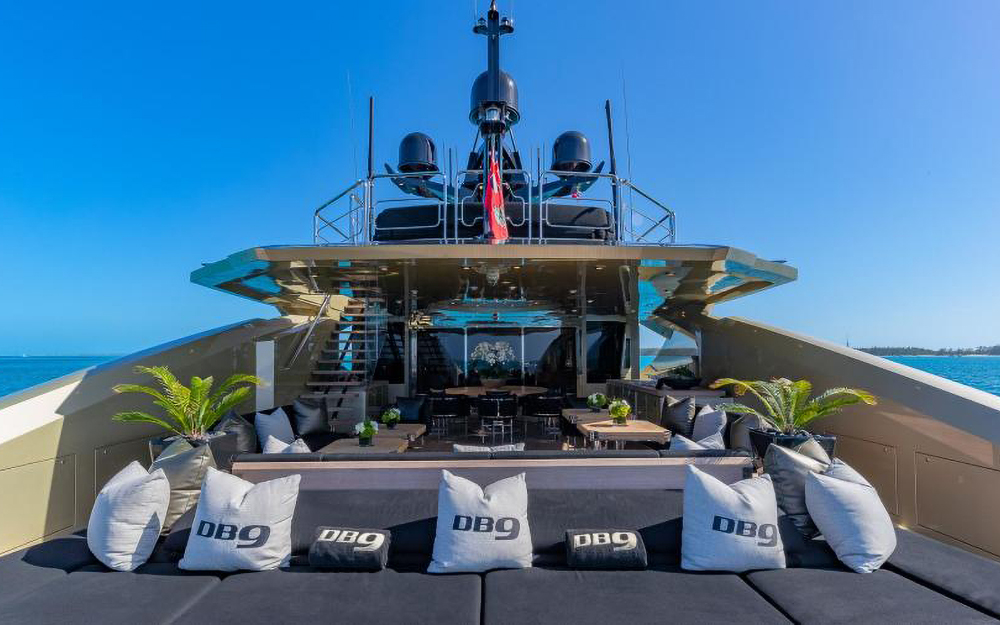

Twin stairs lead up to an infinity-edge jacuzzi pool, configured so guests can enjoy the wonderful vistas aft, while underway, or at anchor with an oversized sun pad just behind.

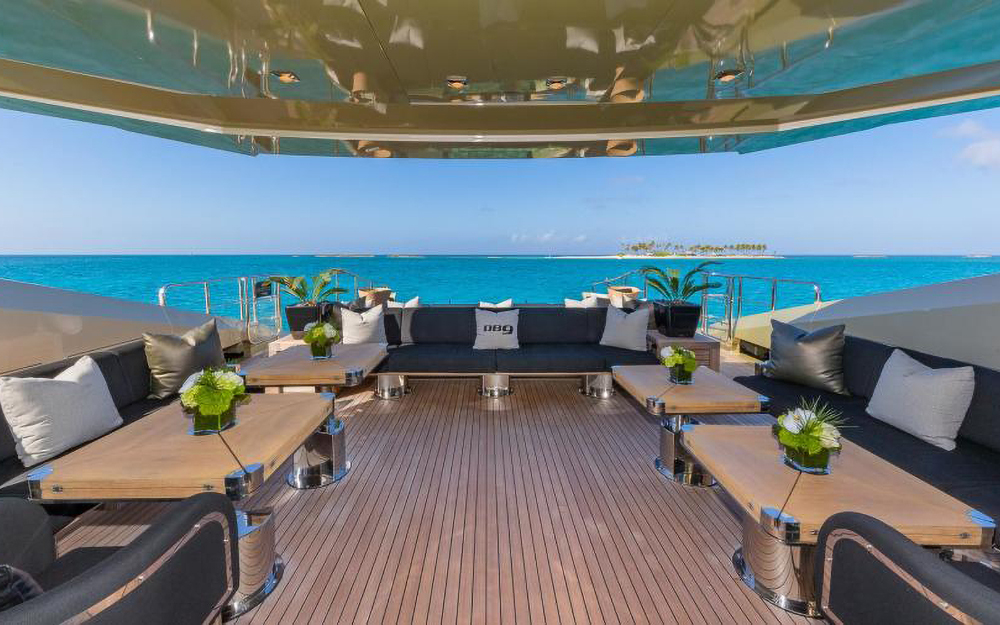

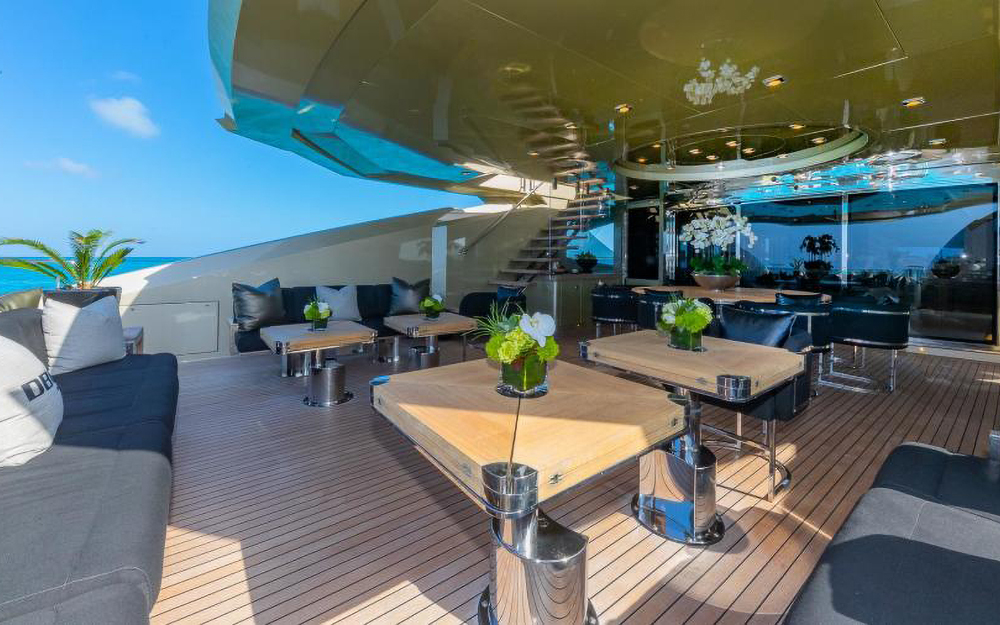

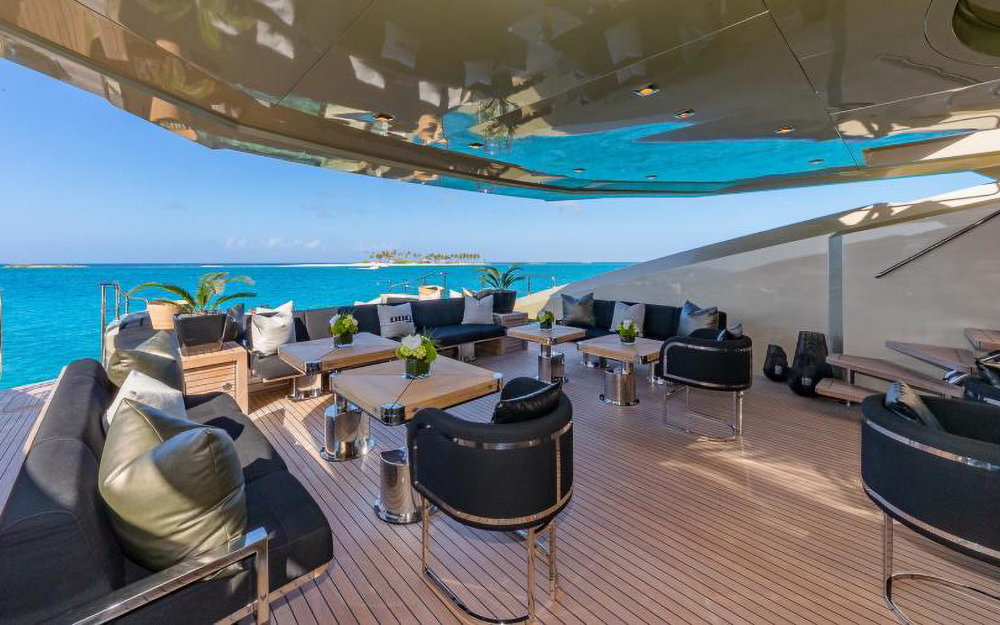

The capacious aft deck also features an elegant seating area, most of which is under the hard-top, with a transom sofa, 2 x loveseats and 2 occasional chairs which can accommodate a full guest complement, around 4 teak and stainless cocktail tables, which can be expanded to create an informal dining area.

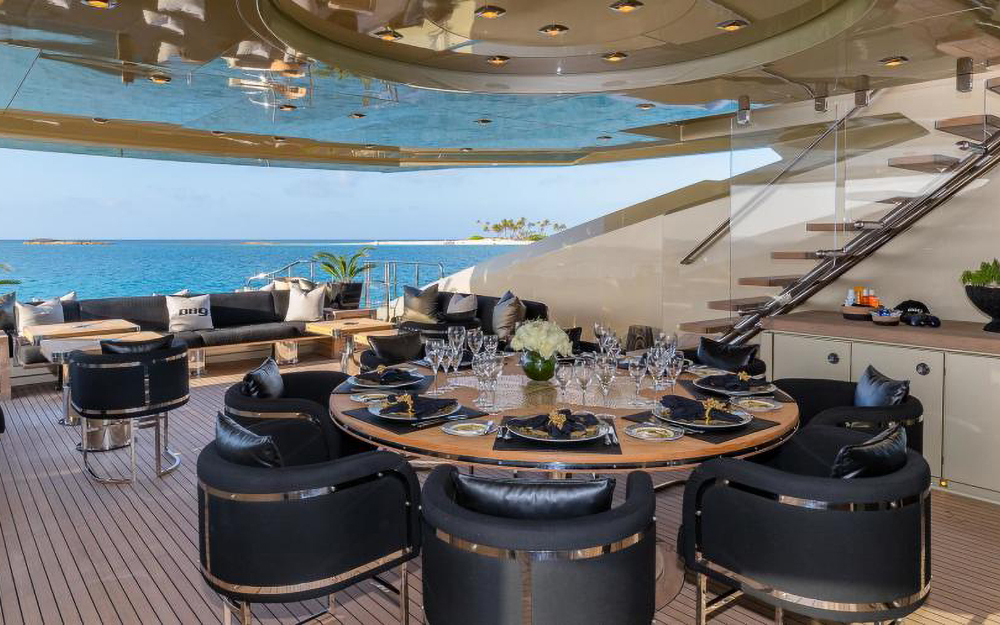

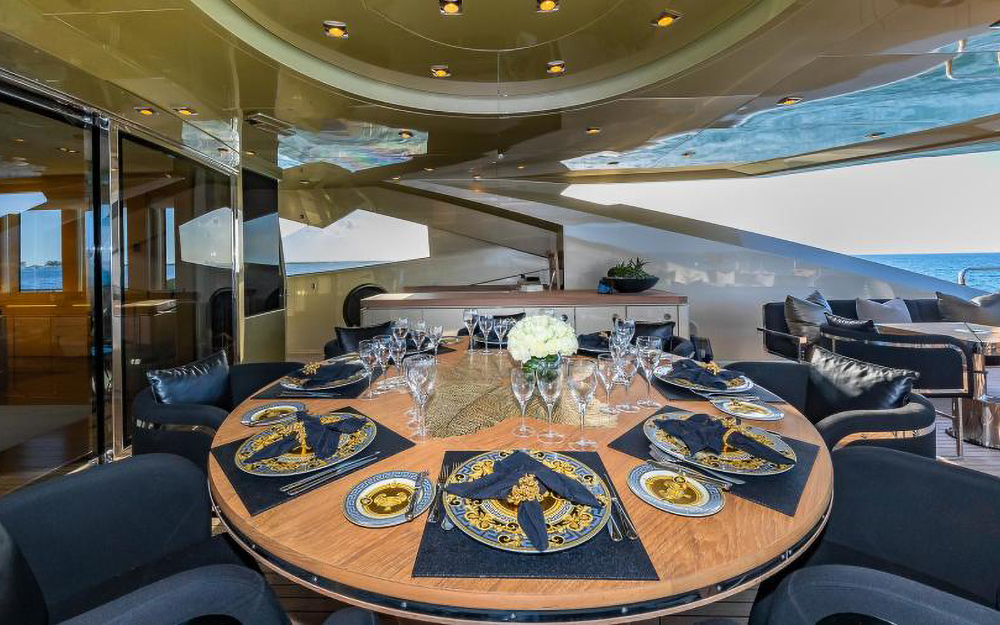

In addition, there is a round dining table and chairs under the covered aft deck, which comfortably seats 10, flanked by teak-topped buffet cabinets port and starboard, which house a fridge and ice maker. The current owner added 25 tons of sacrificial reverse cycle air conditioning to the covered aft deck area so it can be enjoyed in any weather.

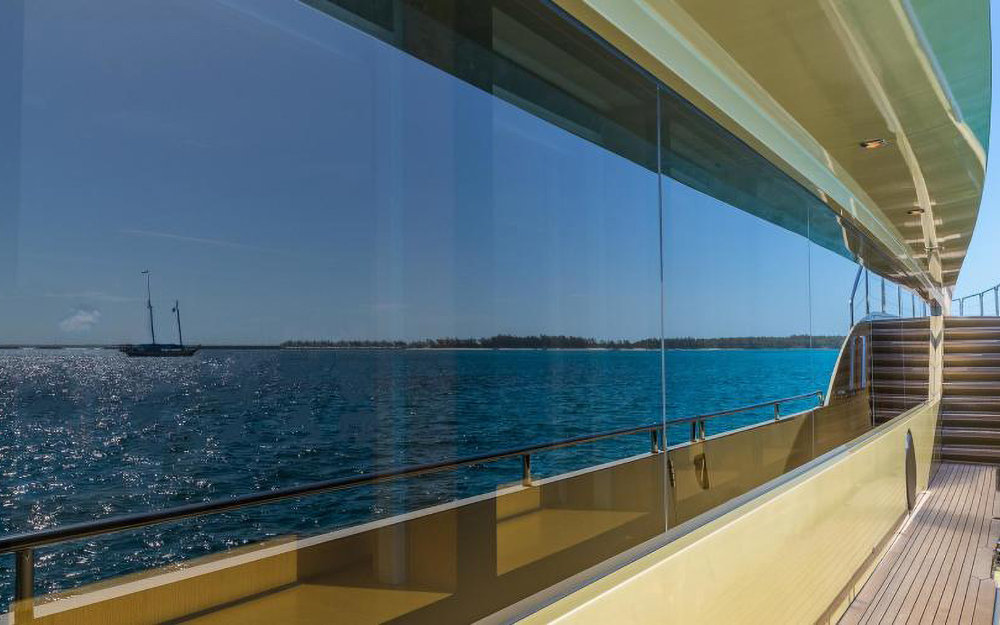

Elegant open tread stairs on the port side lead up to the sundeck, while curved passageways lead to side-decks proceeding forward to the large foredeck.

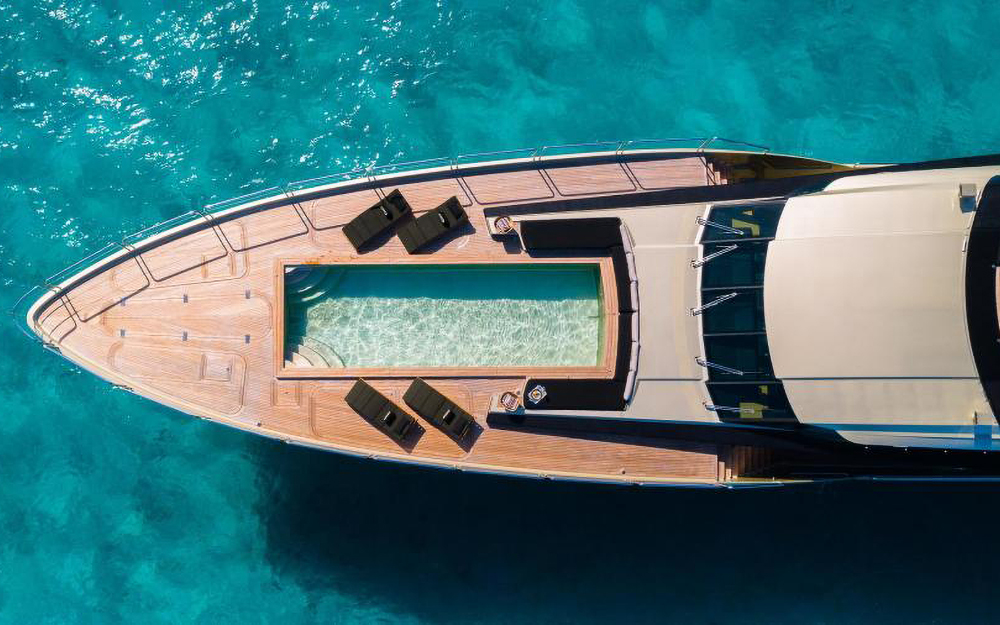

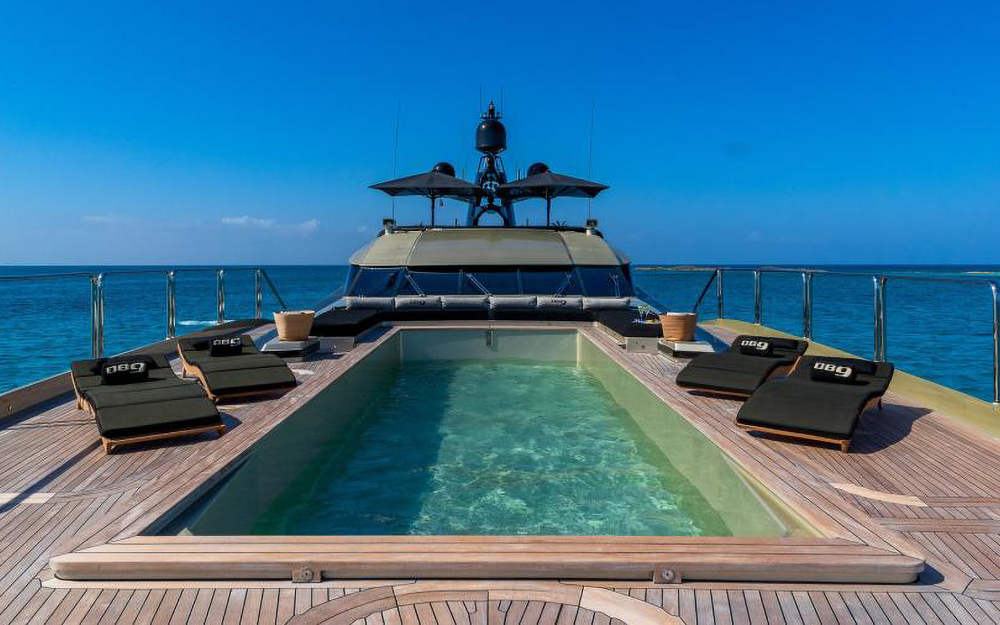

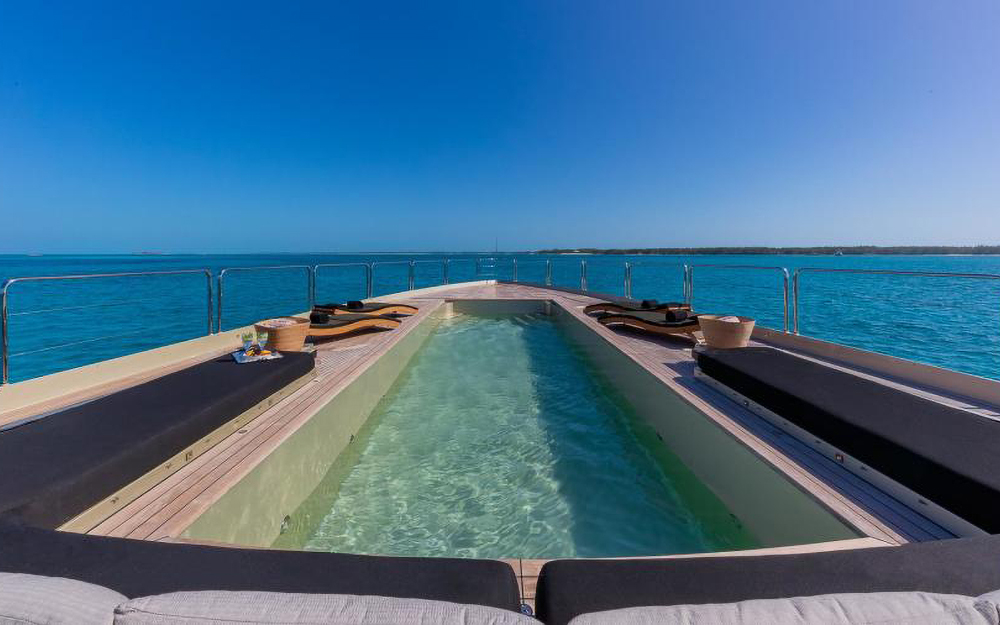

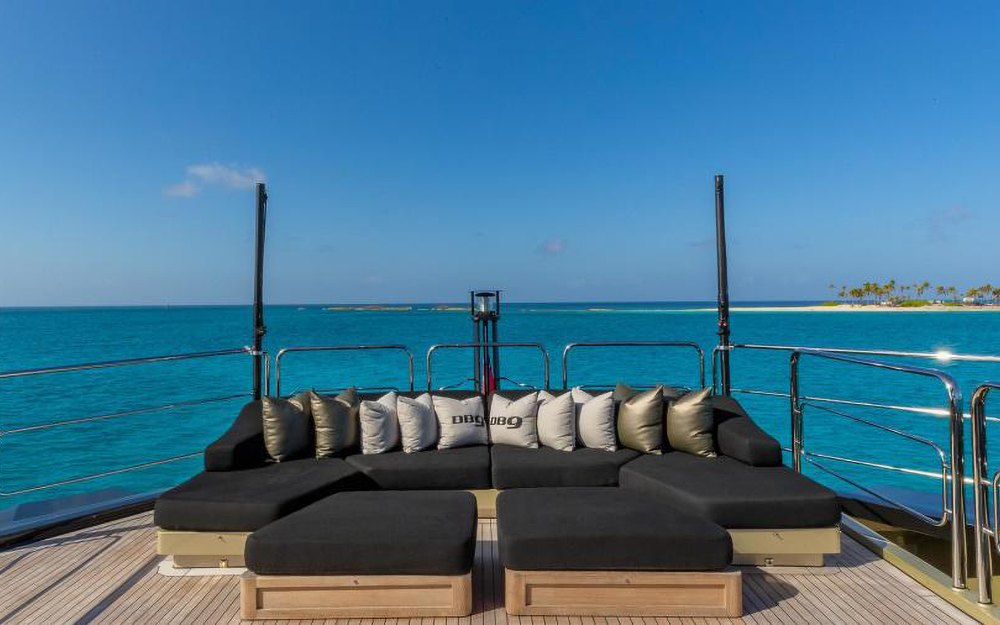

Ahead of her time, the teak-covered foredeck is another superlative guest entertaining area. Featuring a large 8m/25’ pool (which can double as a tender storage area), a U-shaped seating/lounging area aft of the pool, and flanked by teak loungers and parasols. Hidden under teak hatches are two garages for housing jet skis.

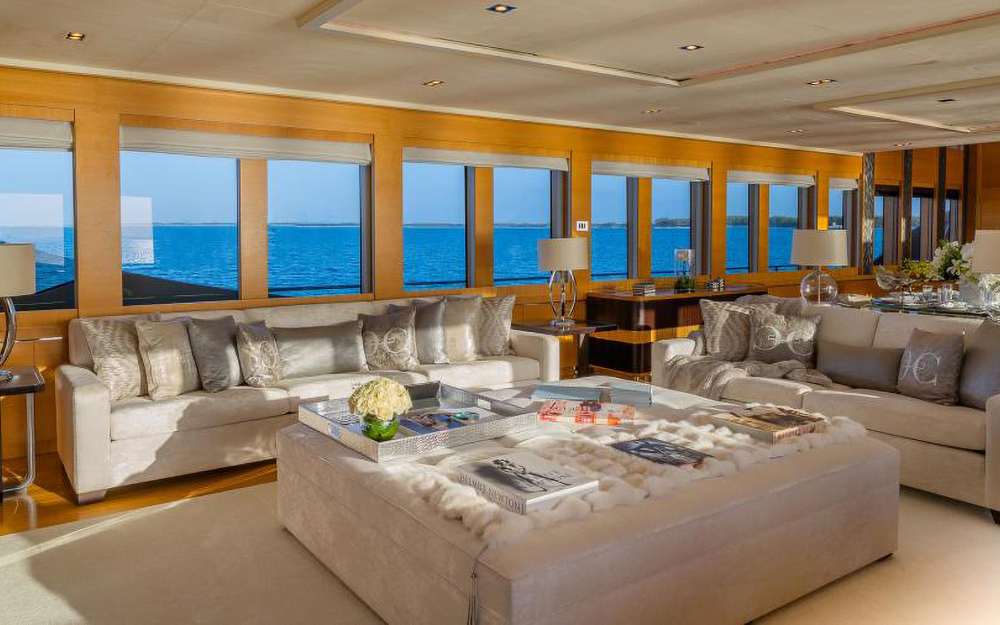

Main Salon

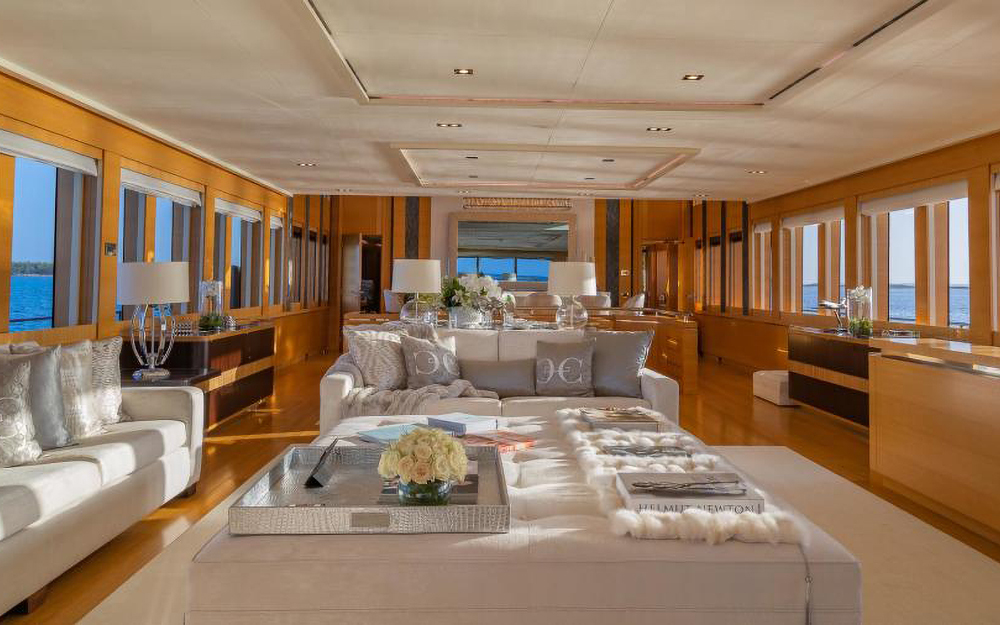

Sliding glass doors lead from the aft deck terrace into a large salon split into 3 zones, the sofa area aft, separated by a buffet from the formal dining area in the middle, separated from the forward formal bar area by a guest stateroom stairwell.

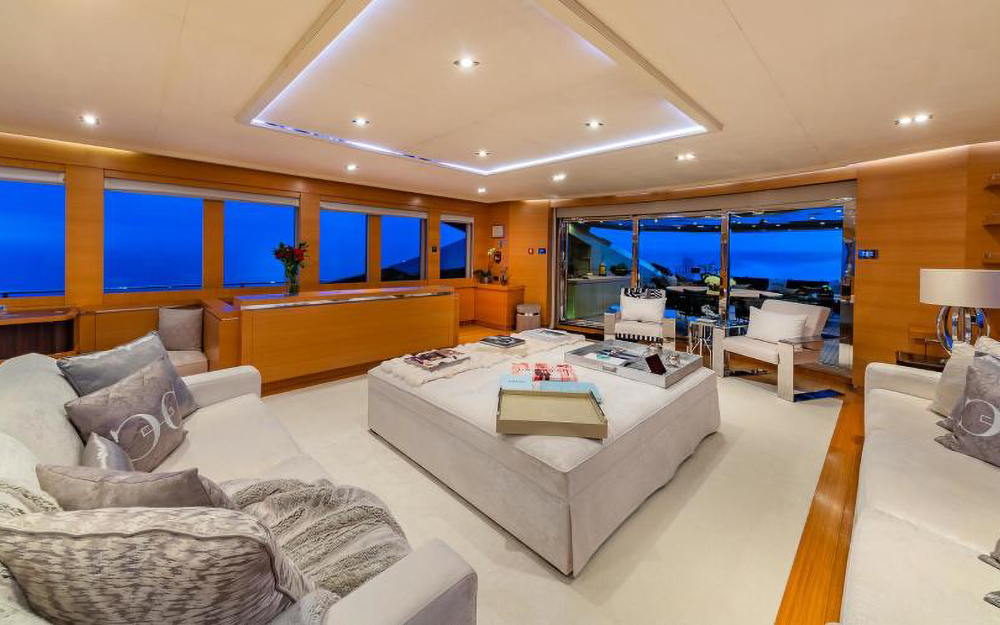

Proceeding forward from the aft deck, you enter the salon through fullheight glass and stainless door, which is one of 3 panels across the breadth of the salon aft. Upon entering the salon, you are immediately struck by the expanse of this bright and calming space. Large windows with minimum mullions surround the area, letting natural light flood in, this is enhanced by the light satin cabinetry, light wood floors with white rugs and white furniture.

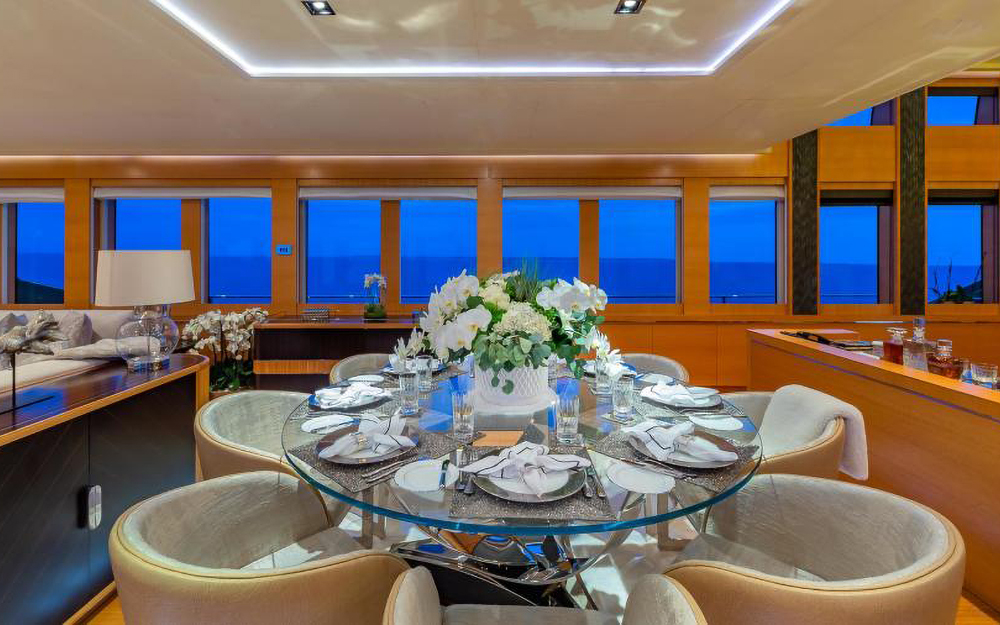

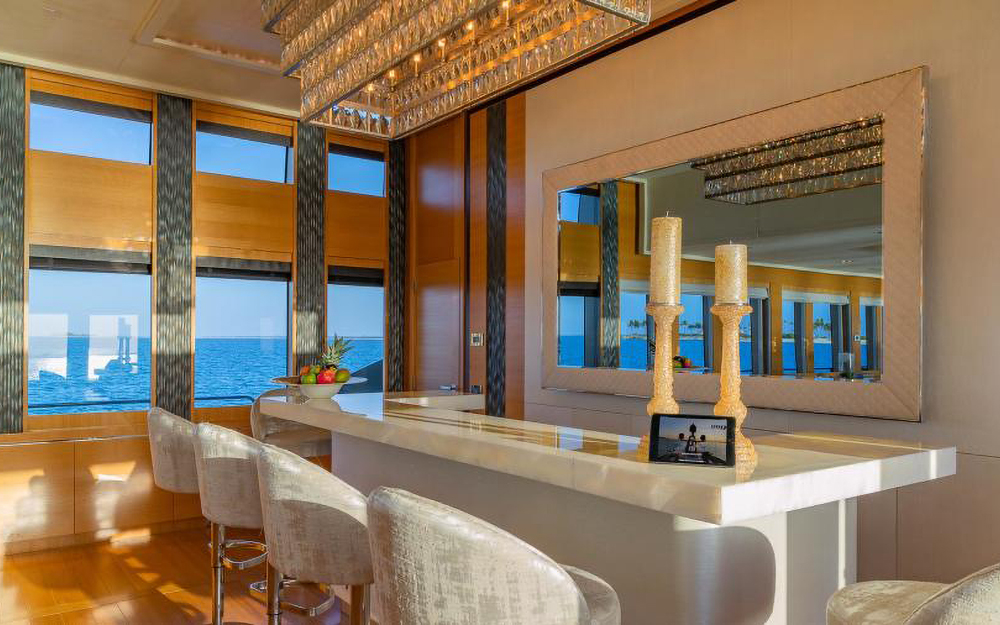

To port is the comfortable lounging area, opposite a 48” pop-up TV, which hides the dedicated Owner’s suite stairwell to starboard. There is an 84” TV on the forward bulkhead, behind the bar that is hidden behind a mirror. The circular glass-topped dining table for 10 guests is serviced by 3 buffet cabinets and tray ceilings. As you proceed forward to the centered formal bar across the forward bulkhead, you are struck by the vaulted ceiling which houses an art deco-inspired 3-tiered crystal chandelier. The elegant backlit white quartz bar top adds to the sophisticated ambiance of this full-service space, with 6 swivel barstools.

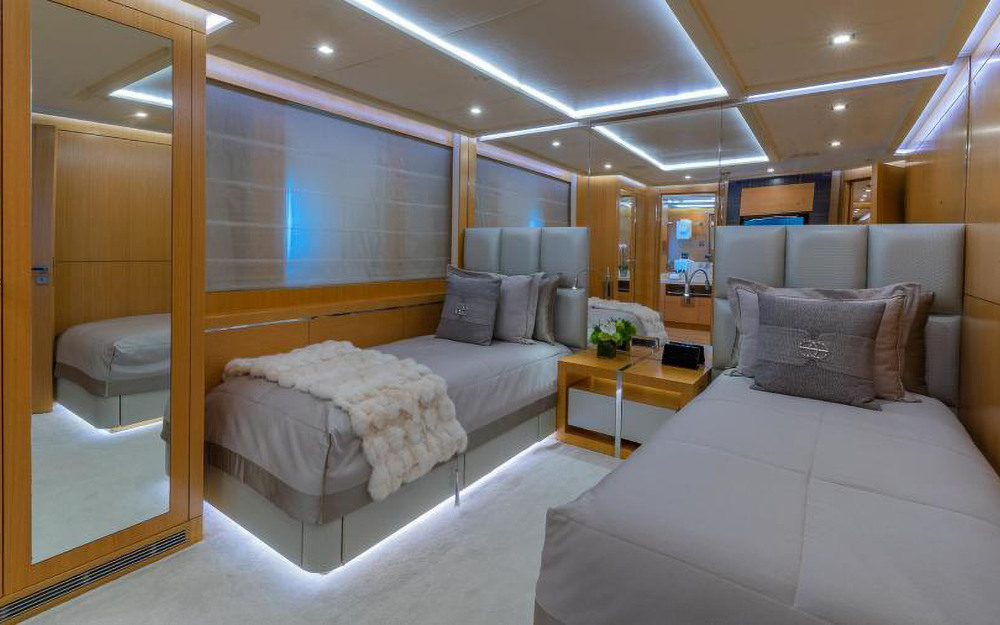

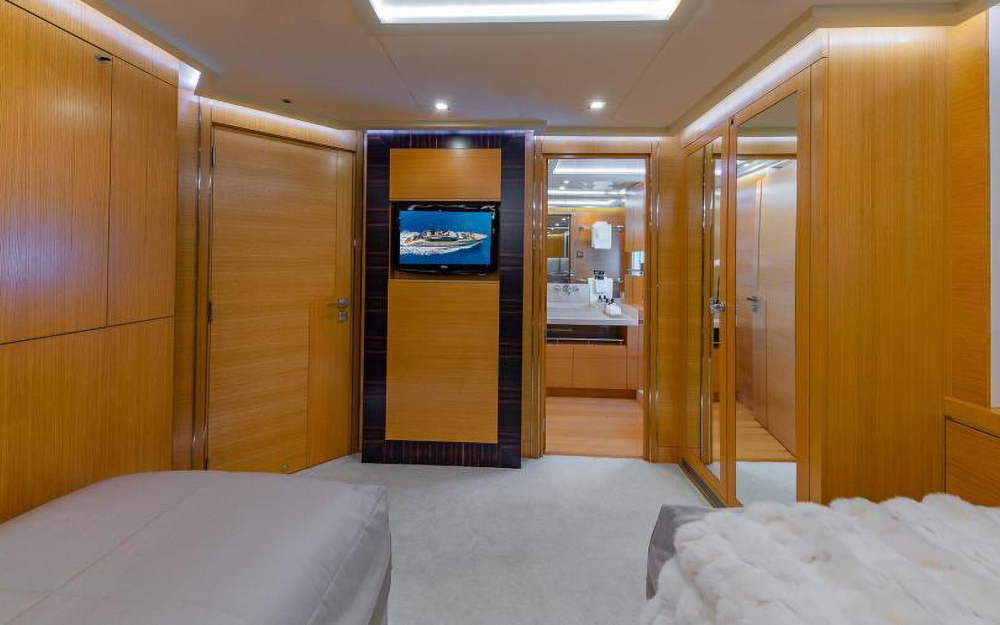

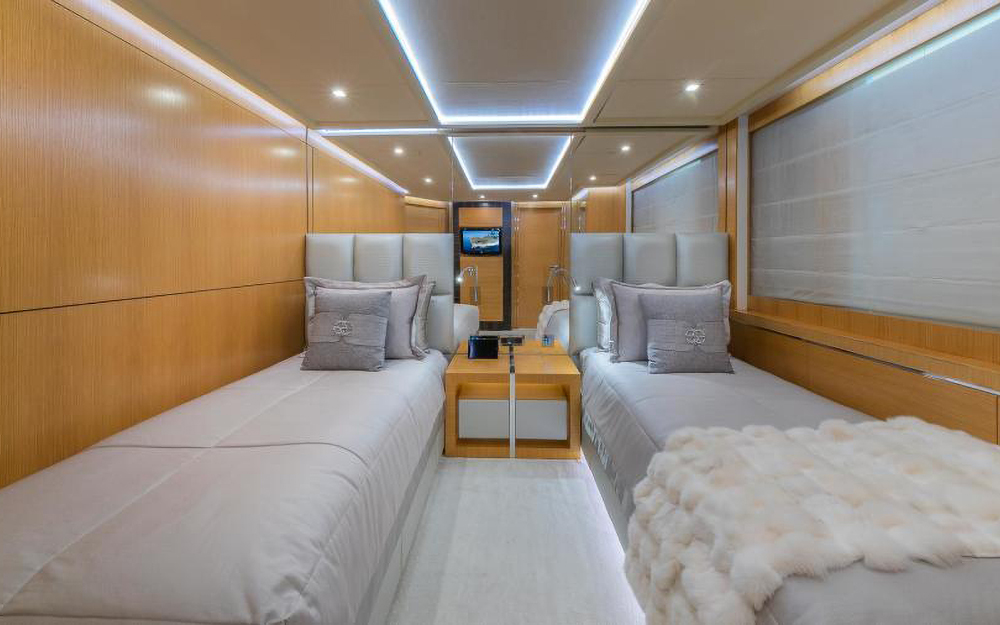

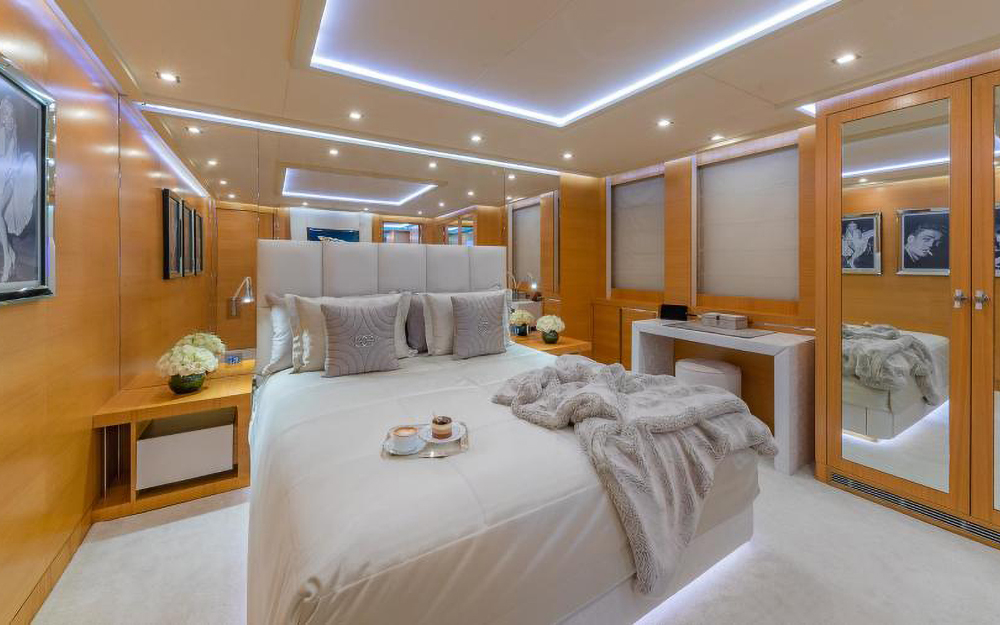

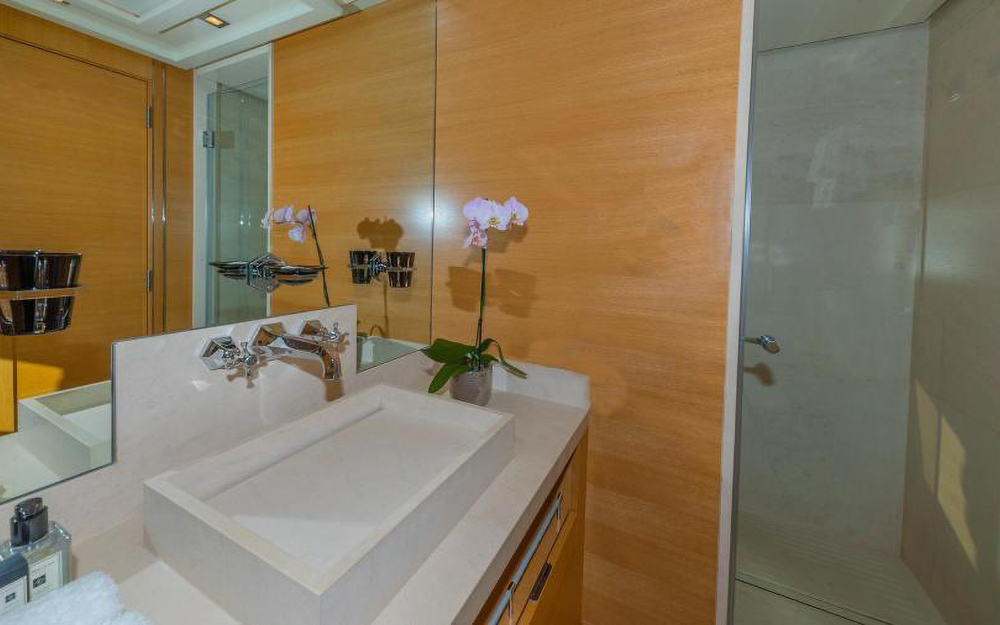

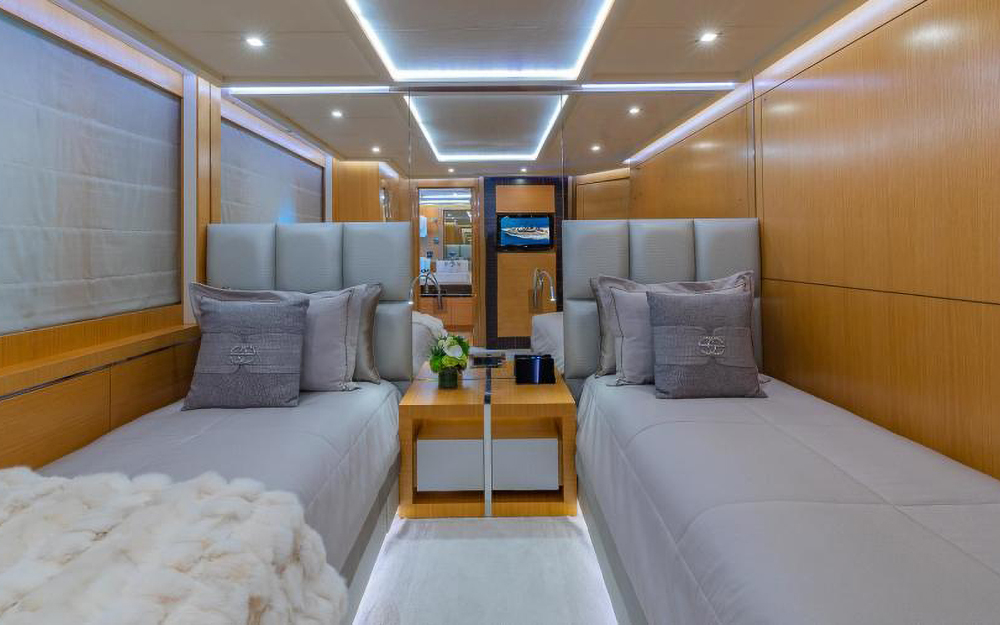

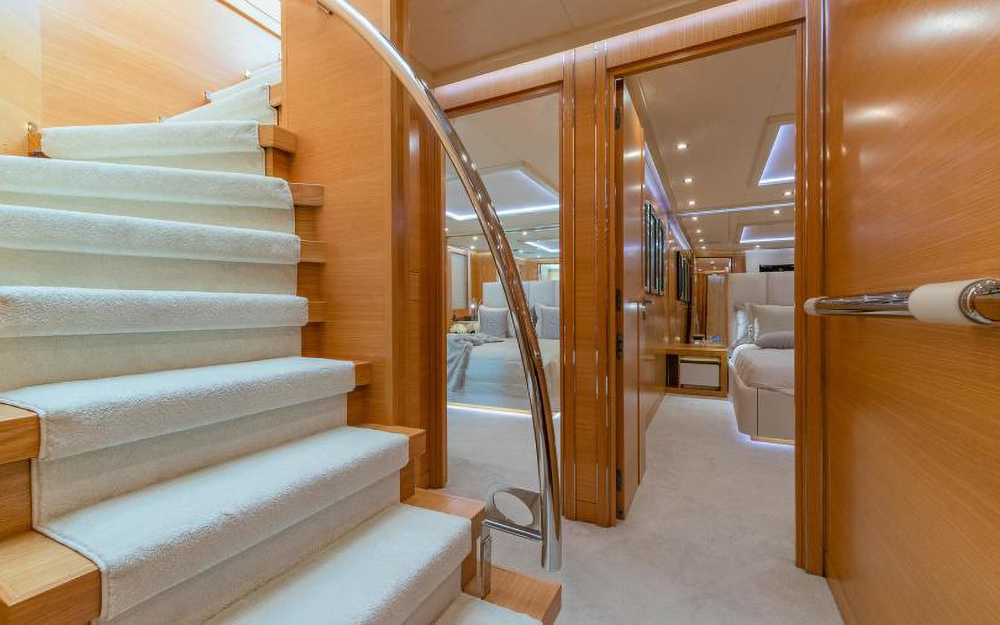

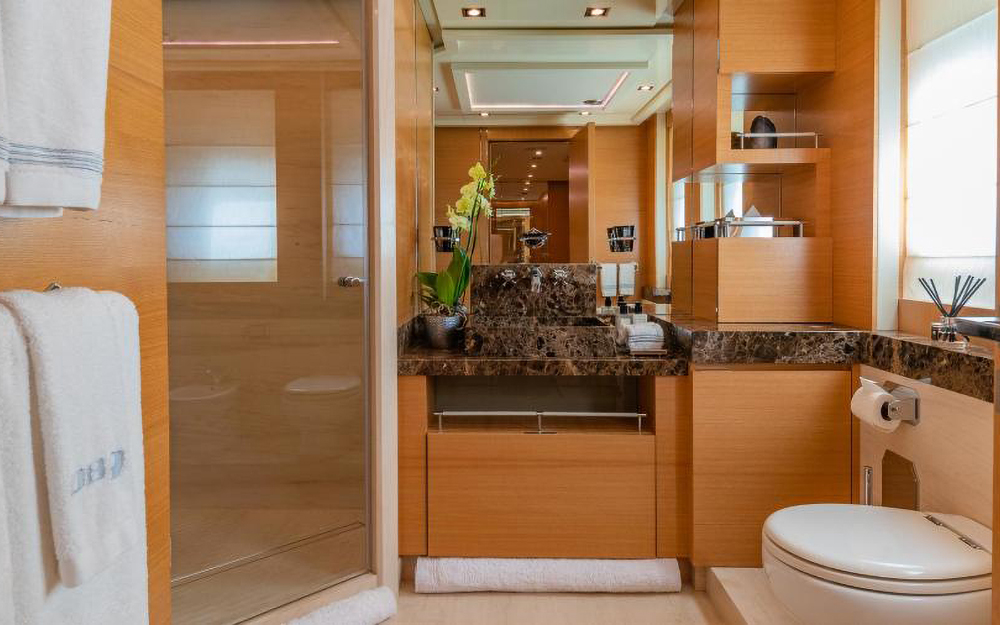

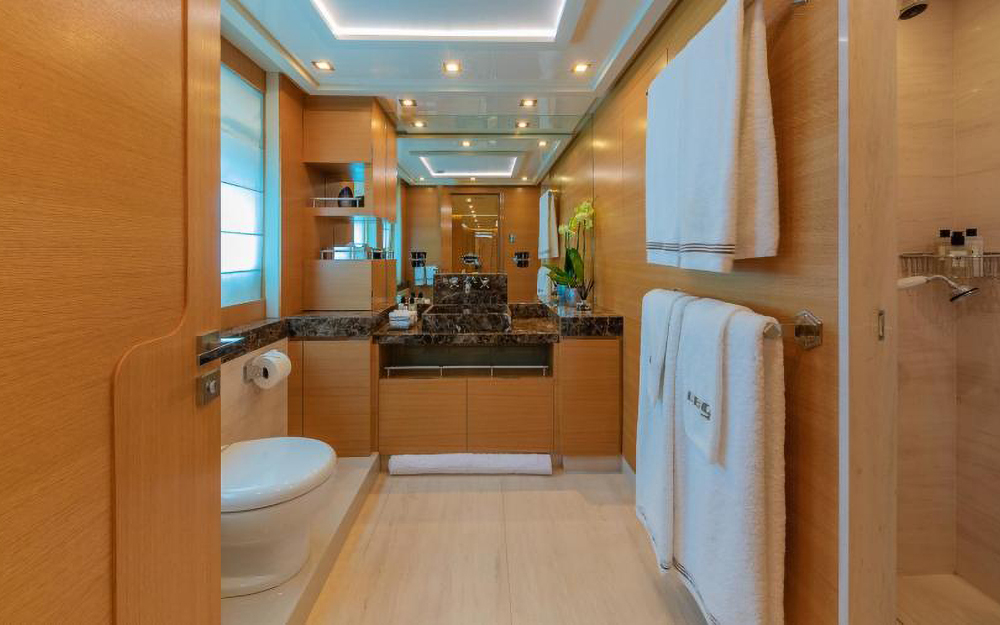

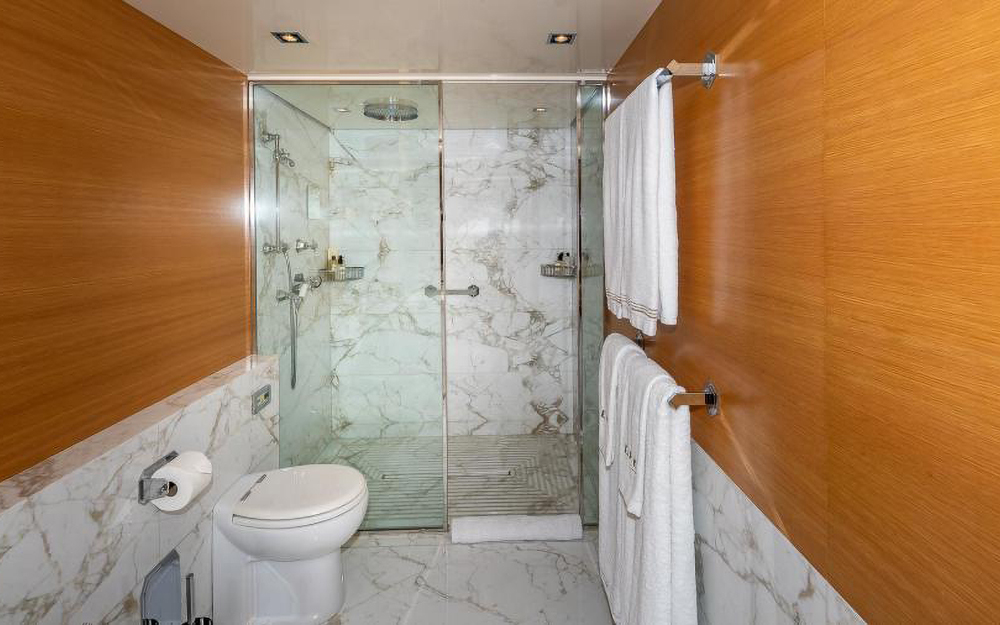

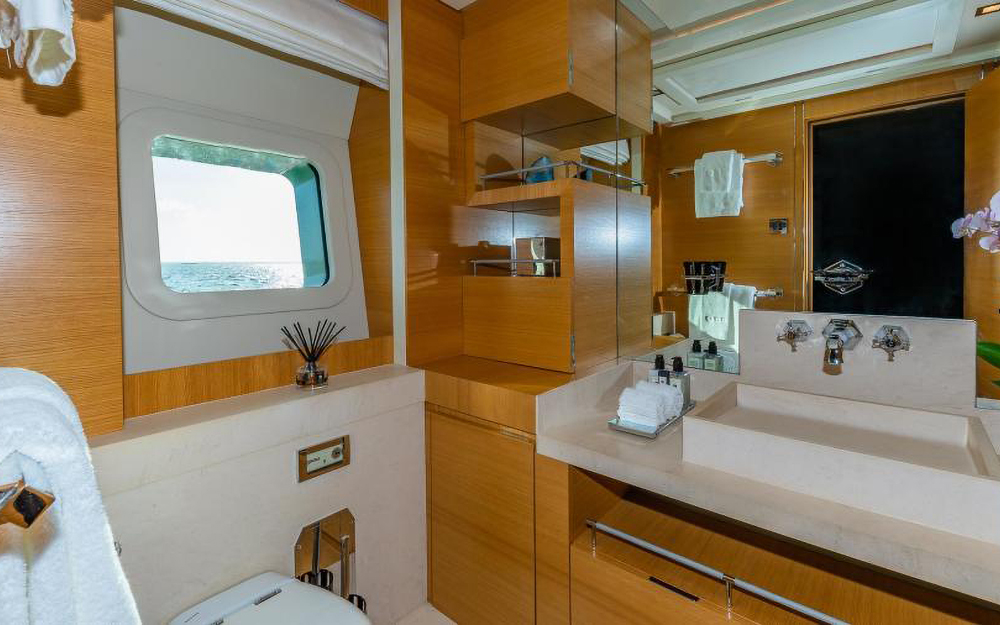

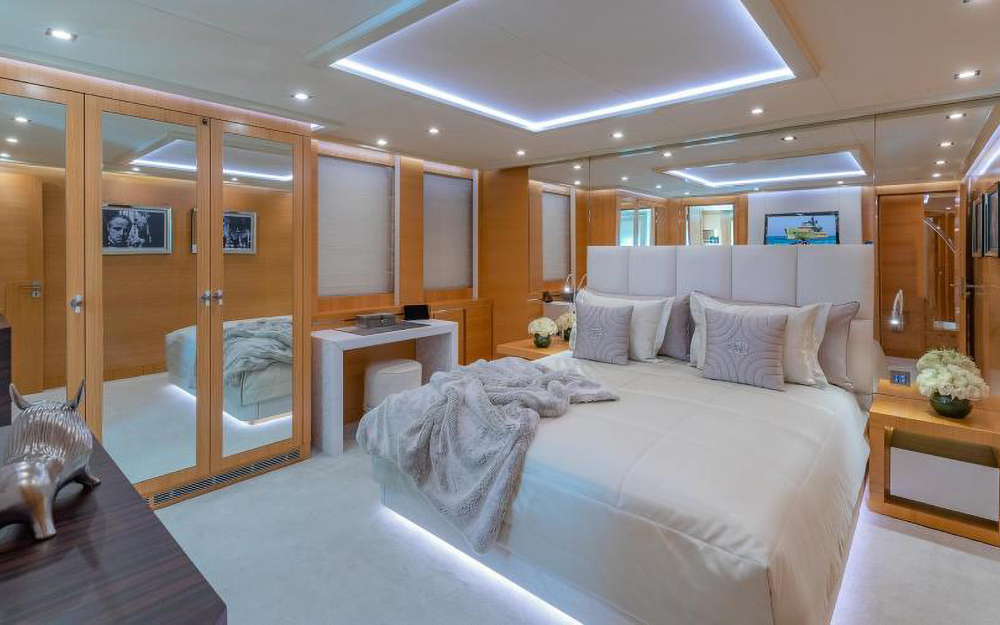

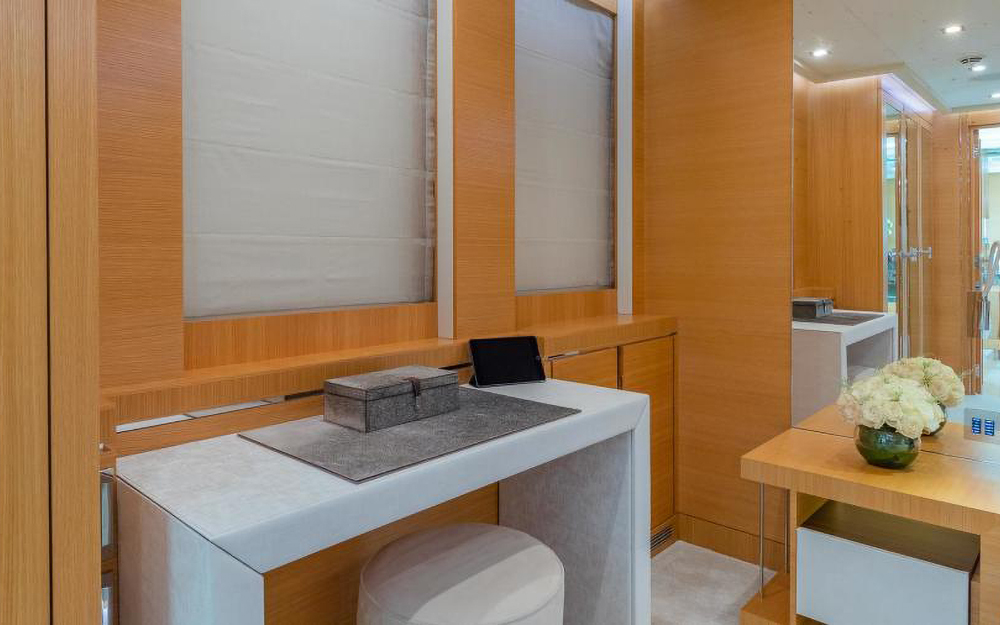

Set around a central foyer on the lower deck, DB9’s guest accommodation includes two queen staterooms and two twin staterooms with an additional Pullman berth. Beautifully finished with contrasting wood paneling, each stateroom enjoys ensuite bathroom facilities.

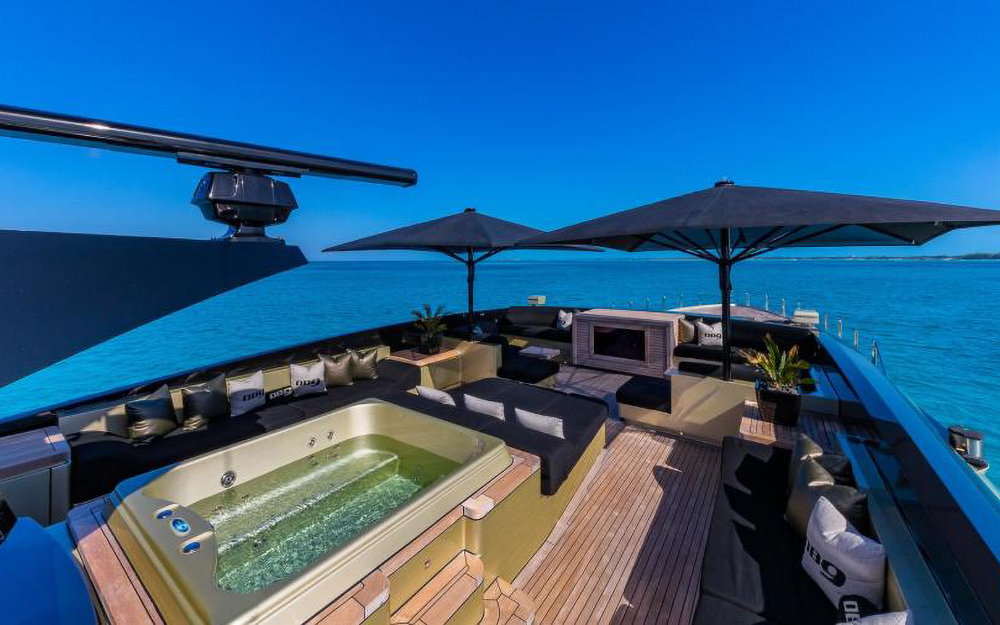

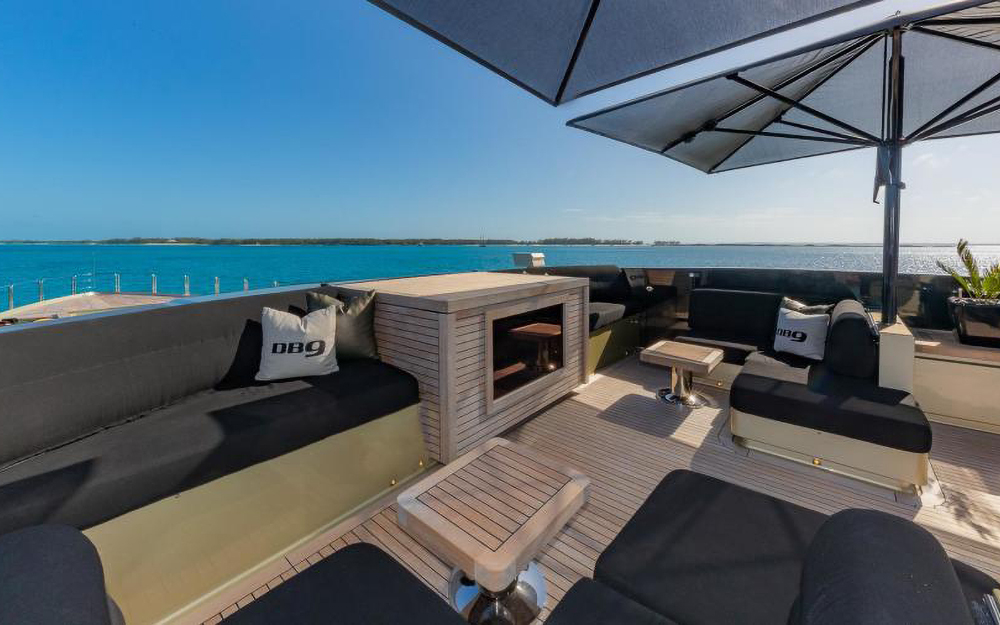

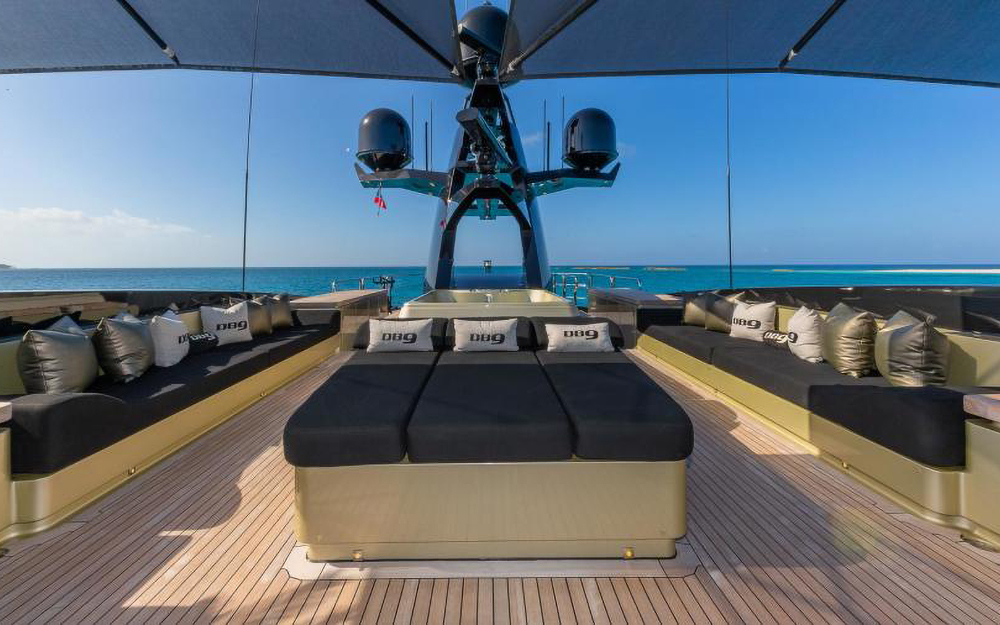

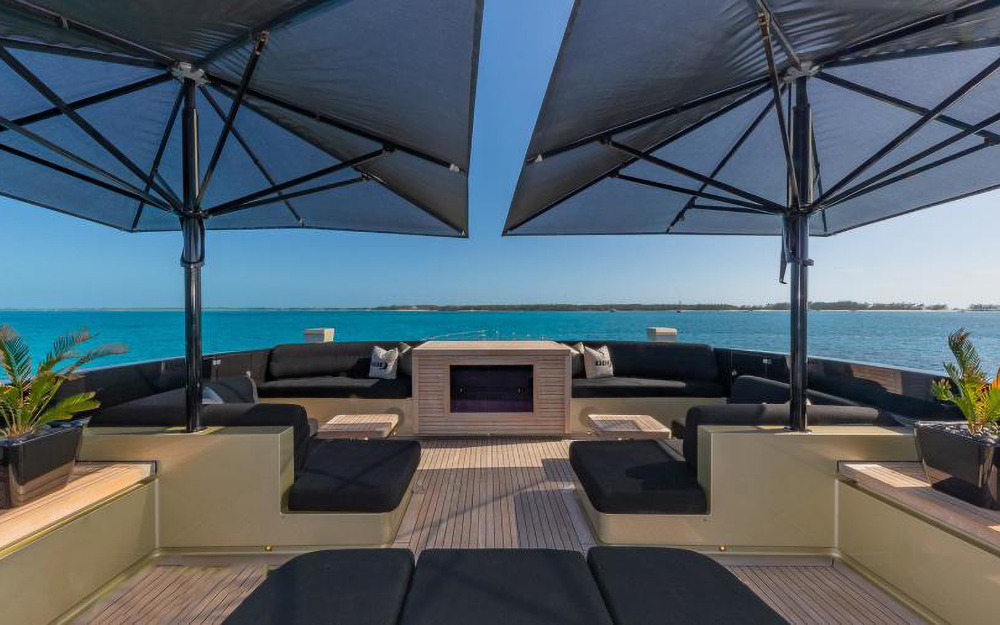

Beautifully finished with stylish black lounge furniture and oversized parasols, DB9’s vast sundeck is the ideal space to unwind. Take a dip in the on-deck spa, enjoy a leisurely lunch overlooking the Mediterranean or sit back and watch a movie screened on DB9’s open-air cinema.

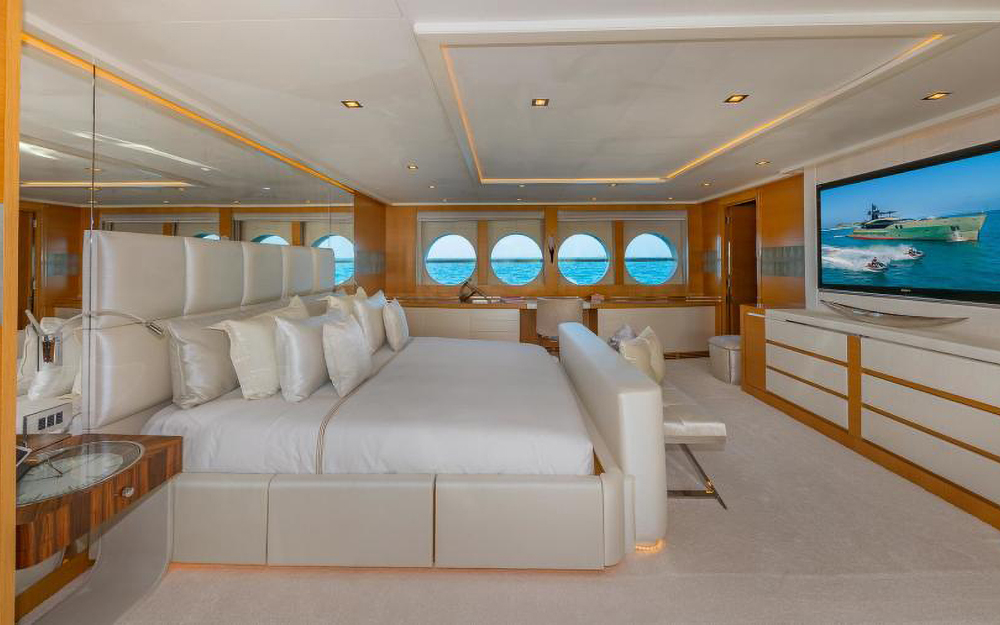

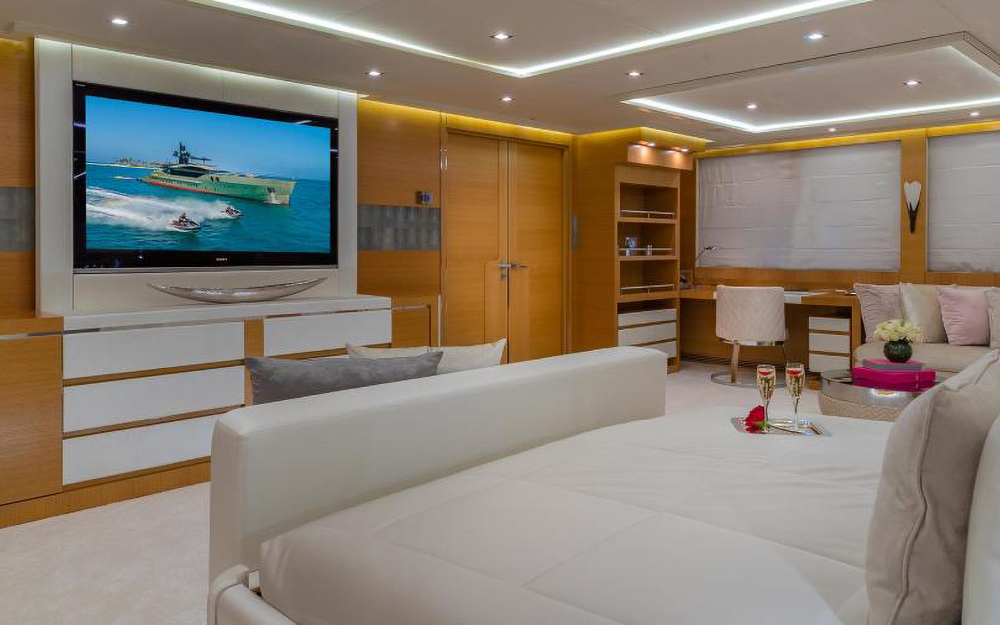

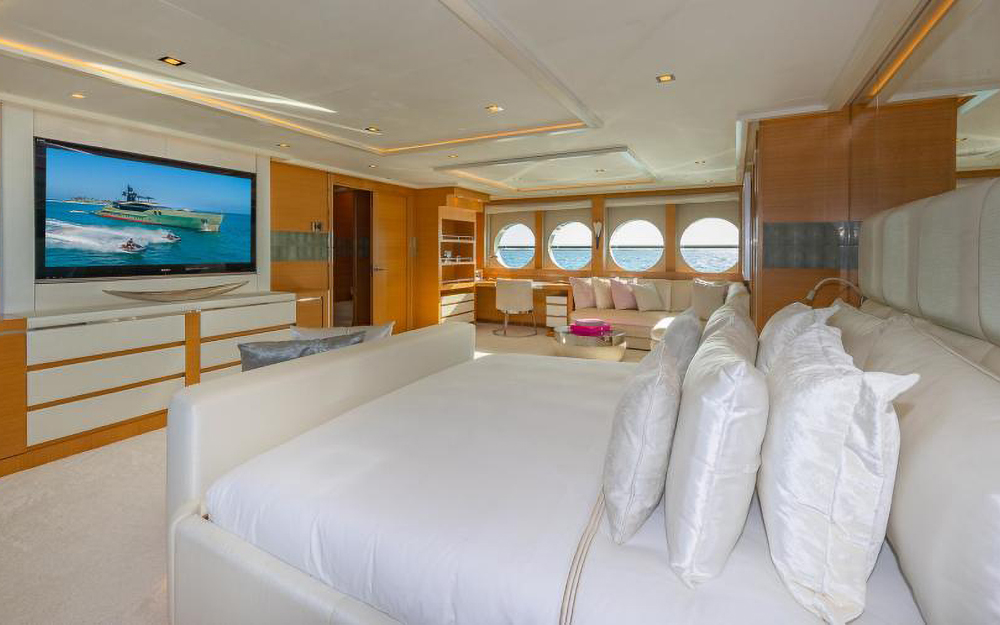

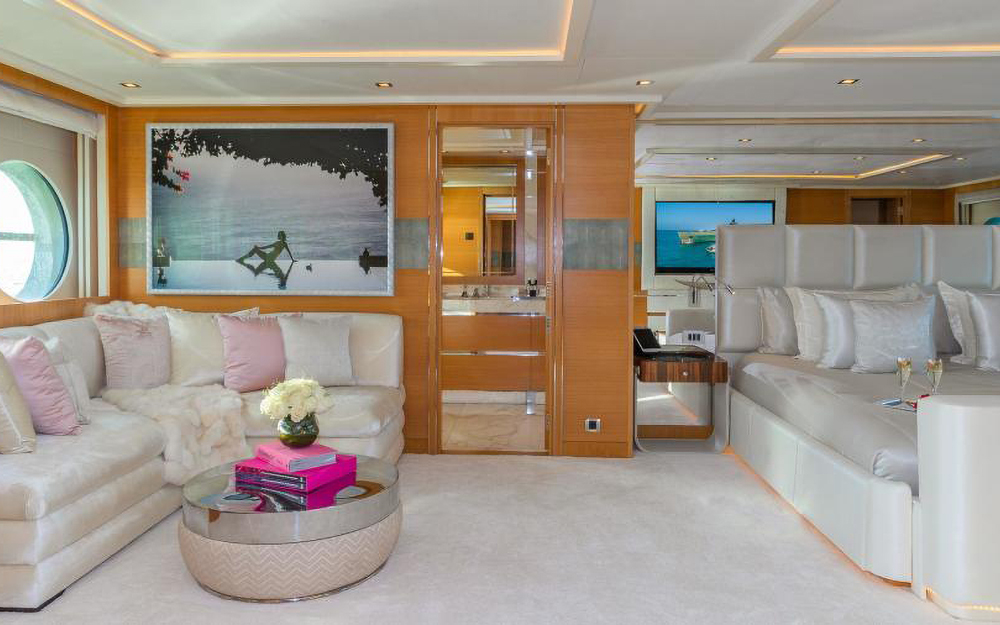

Full beam Owner’s king stateroom with private entrance amidship
2 x Queen VIP staterooms
2 x Twin cabins, each with a Pullman berth
Accommodation for 11 crew members



Main Engines 2 x MTU 16V 4000 M93L 4,613HP
Engine Hours: Running hours: Port 2,254; Stbd 2,270 (June 2022)
Gear Boxes 2 x ZF, 905v
Shafts: Reversed
Watermaker Duplex, with ultraviolet sterilizer

10kts (Maximum Range) 100 litres/hr – Range 5,267 miles
15kts (Economical cruising) 334 litres/hr – Range 2,366 miles
20kts (Cruising speed) 832 litres/hr – Range 1,266 miles
30kts (Maximum) 1,766 litres/hr – Range 895 miles



Electricity 230vAC / 400vAC
Shore Power 250 KVA & Shore Power Converter
3 x Kohler 80 kW generators with instrument panels
Generator Hours: Center 8,863; Starboard 8,883; Port 8,130 (July 2022)

Tank Capacities (approximate)
Fuel 59,038 litres/15,596 gallons
Water 6,900 litres/1,822 gallons
Clean Lub Oil 752 litres/198 gallons
Dirty Lub Oil 2,430 litres/641 gallons
Grey Water 1,525 litres/402 gallons
Black Water 1,525 litres/402 gallons



Communication Equipment
SATCOM Thrane & Thrane
INTERCOM Panasonic KXT7730
SAT C Furuno
HF/MF Radio Furuno
3 x Fixed VHF, including 2 x Sailor GMDSS sets + repeaters
4 x ICOM M-25 portable VHF
12 x Hytera PD685 portable UHF
Panasonic KXT7730 w/ 21 lines; 22 extensions
VSAT Sailor

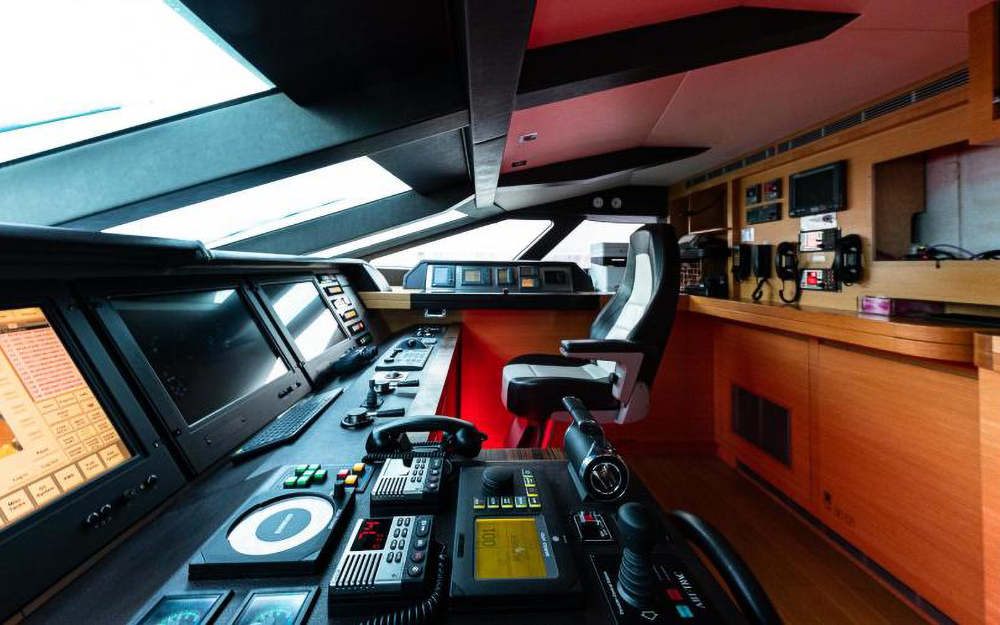

Navigation Equipment
Gyro Compass Simrad
2 X Furuno RCU – 0414 RADAR
Automatic Pilot Simrad
1 x Furuno digital/ 1 x Furuno FE – 700 Depthsounder
Chart Plotter Transas
Navtex Furuno Navtex NX – 700
Furuno Universql AIS FA-150
1 x Furuno GPS 50/1 x Furuno GPS 32



Anchors 2 x Manson HHP Kedge Anchors x 250kg/Ea
Anchor Chains 2 x 150m
2 x Maxwell windlasses
2 x Maxwell winches
Searchlights 2 x Francis 300w Xenon Joystick control
Jacuzzi(s)/Pools 1 x 4 Person on the Sundeck, 1 x 8 Person on the Aft deck, 1 x Outdoor Pool on foredeck
Tender crane Steelhead with SWL 3,870 lb/1,760 kg
Boarding Gangway Opacmare at stern



Central A/V system Crestron
Central video system Kaleidescape
8 x Apple TVs + 3 x IPTV boxes
8 x iPod docking stations

Master Cabin: 1 x 60” Sharp HD
Main saloon: 1 x 86” LG HD and 1 x 48” Sharp HD
Aft Deck: 1 x 55” Samsung HD
Guest Cabins: 2 x 32” Sharp HD and 2 24’ LG HD
Crew Mess/Galley/Captain Cabin: 3 x 32” LG HD
1 x Cinema projector

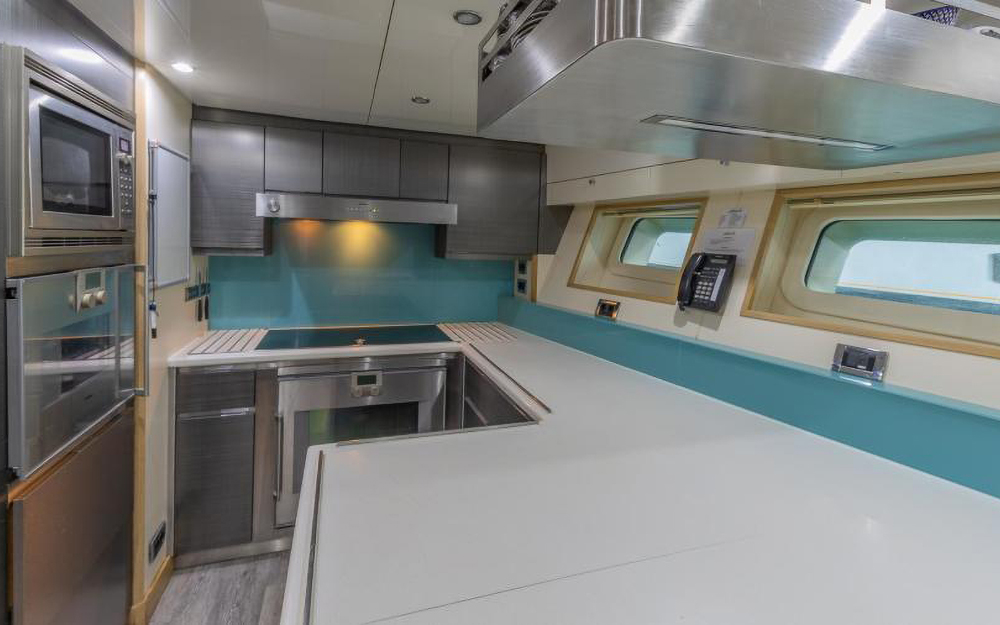

Main Galley
1 x Gaggenau oven
1 x Gaggenau hob plate
1 x Miele steamer oven
1 x Miele microwave
1 x Miele dishwasher
2 x Frigoboat refrigerators
1 x Insinkerator macerator
1 x Bimbi Thermomix

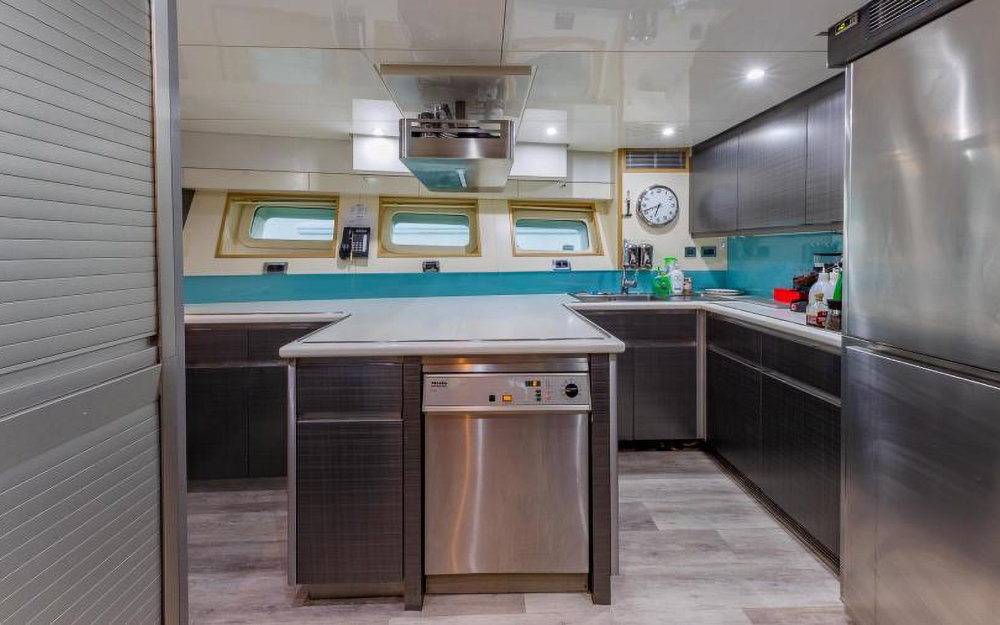

Crew Area
1 x Liebherr fridge/freezer
2 x Frigoboat freezers
1 x Frigoboat refrigerator
1 x Samsung Microwave
1 x Miele dishwasher
1 x Tramontin Wine Cooler
2 x Toasters (Bosch & DeLonghi)
1 x Cuisinart Subiia Kettle

2 x Miele professional washing machines
2 x Miele professional dryers
1 x Miele ironing roller
1 x Phillips steam iron
1 x Steam-One clothes steamer
1 x Miele power plus vacuum cleaner



Swimming Pool 25’/8m on the bow
1 x aft facing inset into the aft deck transom
1 x sundeck
Open-air cinema on sundeck
3 x Hoshizaki Icemakers (Flydeck, aft deck bar, saloon bar)
2 x external fridges: One x Klarstein / One x Isotherm (Flydeck & aft deck bar)
1 x Liebherr fridge (Saloon bar)
Mini fridges x three Frigoboat (Master suite, lower guest area, captain cabin)



5 x Zodiac, 12-person life rafts
4 x Float free life rafts + 1 x Fixed
4 x Life rings of which 2 with orange smoke
1 x EPIRB Jotron
12 x Parachute Flares (4 water)
10 x Medical bags – MCA
32 x Adult and Child life jackets
4 x Line throwing appliances
24 x Immersion suits
2 x Self-contained breathing apparatus sets and fire suits
2 x Emergency VHF sets



1 x Castoldi Jet 21 tender
2 x SEADOO 3 seat wave runners (in foredeck side garages)
2 x Jobe biscuits
1 x Jobe banana
2 x wakeboards
1 x Mono-ski
1 set x junior water-skis
1 set x adult water-skis
2 x Cargo Sea-bobs
1 x Bauer dive compressor
5 x Mares dive sets (Assorted sizes)
12 x snorkel sets (Assorted sizes)
3 x fishing rods and tackle



Full paint job on purchase and 5 coats of clear (2019)
Change main bearings on Gyro Stabilizers, replaced the sealed house casings
Stabilizers: Replace electronics. Rebuild hydraulic pumps, and replaced heat exchanger (April 2022)
Replace all hydraulic hoses on crane / Replaced spectra fall line (May 2020)
Replace freshwater pump and install soft start (June 2020)
New watermakers fitted
Treatment system certification and general maintenance (July 2021)
Replace hydraulic hoses throughout, including Passarella (May 2022)
Aft Jacuzzi replaced electronics (July 2022)
Replace sound system on aft deck (Nov 2021)
TV-ro antennas service (April 2021)
Replaced VSAT antenna with SAILOR (April 2021)
Main engine shafts and props out for inspection and certification (April 2021)
Sea water pumps on main engines replaced (July 2021)
Replace all batteries, main engines, generators, and emergency (June 2021)
Rebuild sea water pumps and replace chill water pump for air conditioning (Nov 2020)
Jowa bilge separator maintenance and certification from Jowa specialist (June 2022)
Starboard generator rewired (Feb 2020)
Bilge and fire pump serviced in Rybovich shipyard (April 2021)
Change all hydraulic hoses on swim ladder and new belt (March 2022)
Crew mess fridge/freezer replaced (July 2022)
Captain and Chief Officer computers renewed (May 2022)
Anchors upgraded to stainless steel (Sept 2020)
Smaller main service 17KW hydraulic pump replaced
Aft Jacuzzi heat circulation pump renewed (July 2022)
Water makers replaced
Upper radar motor replaced (June 2022)
Wind station monitor displays replaced (June 2022)
Bottom Painted, new zincs at Rybovich Nov 2021 with touch-up while on Dock Express (May 2022)
