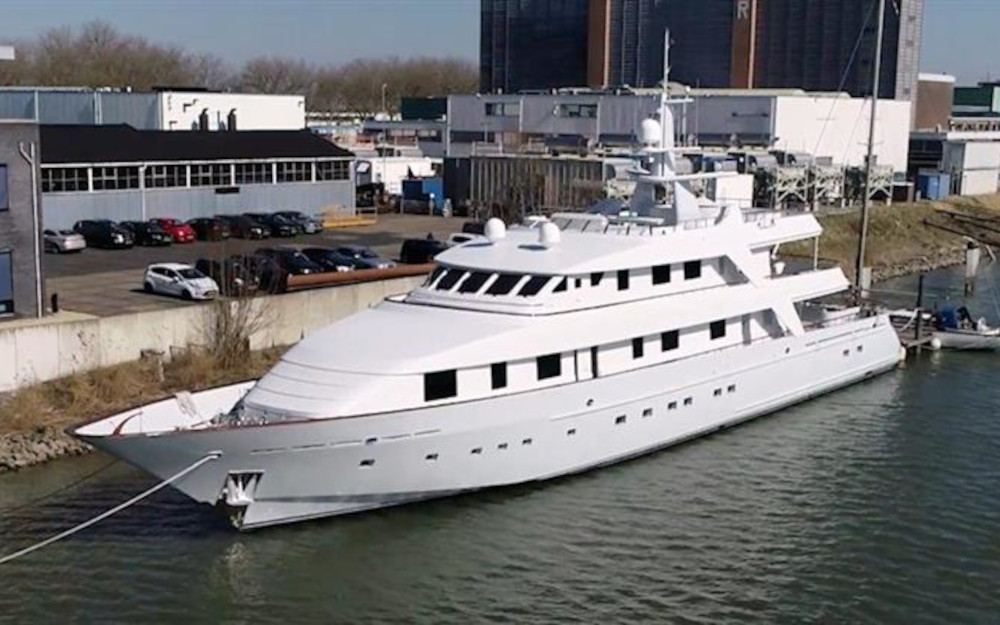

162′ Oceanco 1994/2024 ANNA J

SPECIFICATIONS

Length: 162′ 0″ (49.38)
Beam: 29′ 3″ (8.92m)
Draft: 7′ 6″ (2.29m)
Year: 1994
Refit: 2024
Builder: Oceanco
Model: Oceanco 50m
Hull Material: Aluminum
Engines: 2x MTU Model: 16V396 TE94
Fuel: 51466.43 / 13596
Water: 21716.9 / 5737
Cruising speed: 17 Knots
Max speed: 23 Knots
Staterooms: 6
Guests: 12
Total Crew: 10
Location: Netherlands

OVERVIEW

This experienced yacht owner purchased ANNA J, relocated her in Holland, and immediately embarked on a deep methodical refit. A mechanical and exterior refit, along with a full paint and an extension has now been
completed.
The 4-meter extension, constructed by Dutch Shipyard Van Noorloos, under the watchful eye of Naval Architects “Van Dorrestejn Design” and Class ABS now gives ANNA J a wonderfully balanced profile. This has created an area aft for the new owner’s interpretation, a beach club or dive center, there is ample
space to dine or dive.

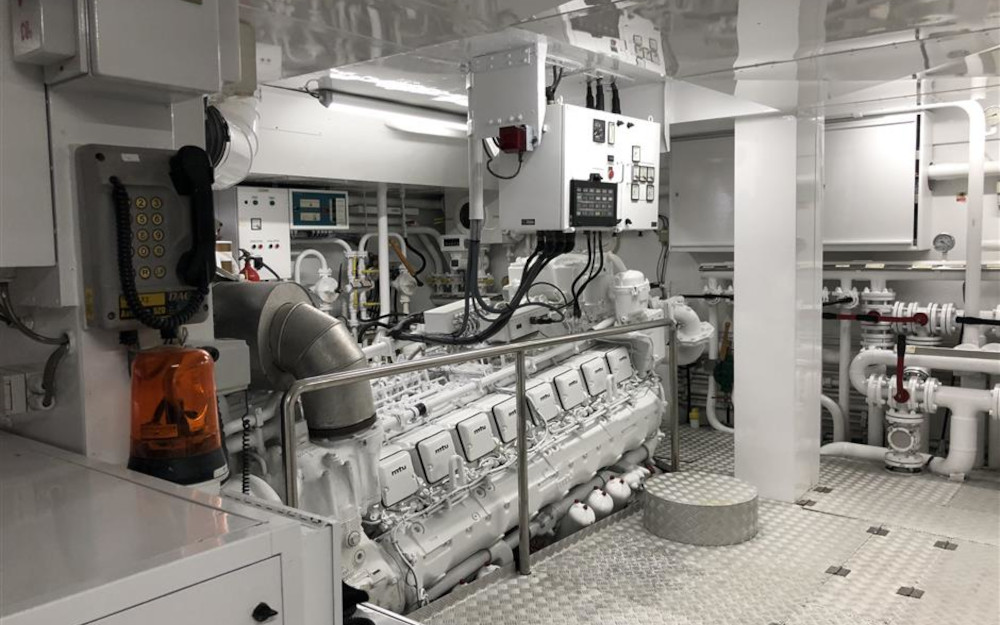

From the very tip of her proud and new communication mast to the bottom of her keel, all have been painted, inspected, repaired, or replaced. The engine room now gleams, bristling with new and/or serviced machinery, a very different story compared to when she was purchased. The refit is complemented by 4x New “Sea Gyro” Gyro Stabilizers, located within the extension providing comfort at anchor, she also has Naiad Fin Stabilizers underway. They set the tone for the quality of this in-depth refit.
Her MTU 16v396 TE 94 main engines received a W5-Plus overhaul, and now have less than 25 hours since the rebuild.
There is still room for personalization of the interior, the Galley would benefit from an upgrade and the crew area a refresh.
This pedigree OCEANCO Super Yacht, after the extensive rework is now beautifully balanced in her profile, importantly the extension was designed so ANNA J comes in under 50m and 500GT.

Key Features
• Fully stabilized, both fin and gyro for maximum comfort underway and at
anchor
• MTU Main Engines with 25 hours since W5+ overhaul
• Recently completed 5-year ABS Survey
• Dutch Pedigree Super Yacht, best value on today’s market
• Owners are ready to listen to sensible offers

ACCOMMODATIONS

Anna J’s Flexible Layout Consists of a Large Open Plan Master Stateroom Is Positioned Forward on the Main Deck With the Entrance on the Starboard Side. The Cabin Is Fitted With a King Size Bed and Ensuite Shower and Bathroom Including a Jacuzzi, Twin His and Hers Sinks and Is Finished in Stunning Marble.

Guest Accommodation Includes 2 Spacious Vip Cabins With Large Double Beds and an Ensuite Bathroom With a Jacuzzi. The Cabin Is Richly Appointed With Fine Fabric Covered Bulkheads, Curtains and Fitted Carpets. These Two Cabins Can Be Converted Into One Full Beam Vip Stateroom.

Twin Accommodations Include 2 Twin Cabins Both With Ensuite Bathrooms.

On the Bridge Deck There Is a 6th Guest/staff Ensuite Double Cabin.

Crew
1 X Double Captain’s Cabin With Ensuite Bathroom
4 X Bunk Cabins Each With Ensuite Bathroom

GALLEY AND LAUNDRY EQUIPMENT

Main Galley
2 x Gaggenau Fridges
2 x Gaggenau Freezers
2 x Miele Ovens
1 x Miele Ceramic Hob
1 x Miele Electric Grill
1 x Miele Dish Washer
1 x Gaggenau Air Extractor Fan and Service Lift

Laundry
2 x Professional Miele Washing Machines
2 x Miele Dryers
1 x Iron Stirella Pro
1 x Miele Electronic Roll Press

Sundeck
1 x Grill

Main Salon Pantry
1 x Miele Dishwasher
1 x Miele Fridge
1 x Miele Freezer
1 x Gaggenau Microwave Oven
1 x Gaggenau Coffee Maker
1 x Gaggenau Ice Maker
1 x Gaggenau Ceramic Hob

DECK EQUIPMENT

Anchor Windlass Muir Engineering
Aft Warping Capstans Muir Vertical Capstans Vhs 5000
Tender & Rescue Davits 1 X Motomar Type B Passerelle

ENTERTAINMENT SYSTEMS

Stereo/Hi-Fi 7 X Cd Players
6 X Sony Mini Hi-fi Systems
Tv Seatel Satellite Tracking System
Sat Tv, Echostar and Sky Digibox Satellite Tv Receiver and Decoders
12 X Tv Sets in the Accommodation Areas
9 X Dvd Player

MAIN MACHINERY

Main Engines: 2 X Mtu 16v396te94, 3000hp Engines
Engine Hours: Since W5+; Port 10, Stbd 10
Props: 2 X 5-bladed Propellers
Generators: 3 X John Deer 6068tf001, 66 Kw @ 1,500 Rpm, Coupled to Northern Light M6414t Alternators
Generator Hours Smoh; Port 19, Center 11, Stbd 13
Watermakers: 2 X Hem Producing 8,000 Litres Per Day
Bow Thrusters: Hydromat Hbt Gf 6090 75kw
Naiad Stabilizers
Fuel Treatment: Alfa Laval System
3 X Marine Air Mcw144k Hmcp20k Air Conditioning Units

COMMUNICATION AND NAVIGATIONAL EQUIPMENT

Radio Telephones 1 X Hf Ssb Radio System
Vhf 3 X Vhf Stations Fitted at the Main and Flybridge Steering Positions
8 X Icom Vhf Portable Units
Satcom 1 X Inmarsat Thrane & Thrane Tt3606g
1 X Mini M and Fleet 55 Thrane & Thrane
1 X Vsat for Internet
Auto Pilot 1 X C Plath Navipilot V – Gryo Navigator
Compass 1 X Riviera Magnetic Compass
1 X G Plath Gyro Stabilised Compass
Gps 1 X Simrad Multisync Plotter
1 X Simrad Gn33 Chart Plotter
1 X Furuno Gp32
Radar 1 X Furuno Arpa 92 Nm Range
1 X Simrad Ra 54, 64 Nm Range
Navetex 1 X Furuno Nx500
Speed Log & Fish Finder Furuno Fcv 663
Wind Speed & Direction 2 X B&g Hydra 2 With Depth Meter Function

SAFETY AND SECURITY EQUIPMENT

Safety
32 X Life Jackets
2 X Viking Life Saving 16 Man
1 X Viking Life Saving 8 Man

Fire-fighting Equipment
5 X 45kg Co2 Cylinders
7 X 6kg & 17 X 2kg Dry Powder Extinguishers in the Accommodation.
4 X 5kg & 2 X 1kg Co2 Extinguishers in the Engine Room.
2 X 6kg Foam
2 X 1kg Halon

Security
Panasonic Cctv System

UPDATES/REFITS – JULY 2024

ANNA J has just completed her 5-year (ABS) Class Survey. The owners will listen to all sensible offers and are highly motivated to achieve a sale before the end of the season. The pro-longed refit still requires the galley and crew area to be upgraded. Mechanically all systems have been serviced, rebuilt, or replaced. She has been sympathetically extended and fully painted. The heavy lift has been done and now is the time for a new owner to add his personality to the interior. ANNA J represents the best value in this class and an outstanding opportunity.
