2002 BOMBARDIER LEARJET 45 S/N 45-0185

AIRFRAME

Total Time Since New: 7,712.2 Hours
Total Landings Since New: 6,662 Landings

ENGINES

Honeywell TFE731-20BR-1B
Enrolled on Honeywell MSP Gold

Left Engine
2,381.2 Since MPI/CZI

Right Engine
2,370.9 Since MPI/CZI

MPI/CZI Interval 3,000/6,000

APU

Honeywell RE100LJ
Enrolled on MSP Gold
Hours Since New: 2,875

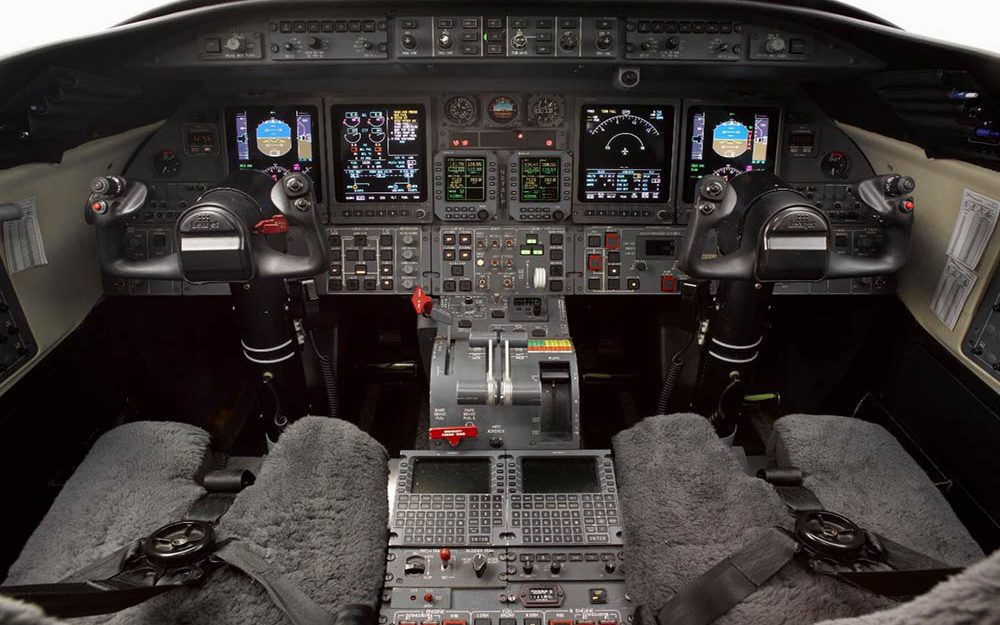

AVIONICS

The Honeywell Primus 1000 avionics system comes standard; it includes four large-format EFIS (ERO Frequency Information Systems) and a 3-D approach navigation system through Dual Universal UNS-1EW FMS. For the first time in a Learjet, there are no restrictions on the lateral and vertical approach guidance simulations.

EQUIPMENT:
Honeywell Primus 1000 System w/ Four Tube EFIS
COMMUNICATION: (2) Honeywell RCZ-851 Comms 8.33 kHz Spacing
VHF NAVIGATION: (1) Honeywell RNZ-851B NAV FM Immunity/with ADF
CLEARANCE DELIVERY: Honeywell CD-850 Clearance Delivery Module
FLIGHT DIRECTOR: Honeywell Primus 1000 IC-600 Integrated Avionics System Display
AUTOPILOT: Honeywell Primus 1000 IC-600 Integrated Avionics System
COCKPIT DISPLAY SYSTEM: (4) Honeywell DU-870 Integrated Avionics System Displays
WEATHER RADAR: Primus 660 Color Weather Radar System
TRANSPONDER: Dual Honeywell RCZ-833M, w/Mode S Diversity Transponders
AUTOMATIC DIRECTION FINDER: (2) Honeywell RNZ-851 ADF
DISTANCE MEASURING EQUIPMENT: (2) Honeywell DME
HIGH FREQUENCY RADIO: (1) Honeywell KHF-950 HF Radio w/Selcal
RADIO ALTIMETER: (1) Honeywell RT-300 Radar Altimeter
AIR DATA COMPUTER: (2) Honeywell AZ-850 Air Data Computers
ALTITUDE HEADING REFERENCE SYSTEM: (2) Honeywell LCR-93 AHRS
FLIGHT MANAGEMENT SYSTEMS/GPS: (2) Universal UNS-1EW FMS (WAAS/LPV)
TERMINAL COLLISION AVOIDANCE SYSTEM: Honeywell TCAS-2000 (TCAS II)
TERRAIN AWARENESS AND WARNING SYSTEM*: Honeywell Mark V EGPWS
(TAWS A) with windshear caution
EMERGENCY LOCATOR TRANSMITTER: ARTEX C406-2-247 three frequency ELT
SOLID STATE COCKPIT VOICE RECORDER: Honeywell SSCVR (2) Hour
WIFI: ATG-2000
SATCOM: Aircel Axxess II
ADS-B: (STC STO4159CH) by Weststar 7/16/2019

ADDITIONAL EQUIPMENT / OPTIONS

BATTERY: New Concorde RG-390E Lead Acid Batteries
TALON AEROSPACE LED TAXI LIGHTS
TAIL ILLUMINATION PACKAGE
PULSATING RECOGNITION LIGHTS

MAINTENANCE & INSPECTION

A (1-6) Due January 2024
B (1-6) Due October 2024
C (1-6) Due August 2025
D (1-6) Due August 2029
SB 40-11-01 Gross T/O Weight Increase

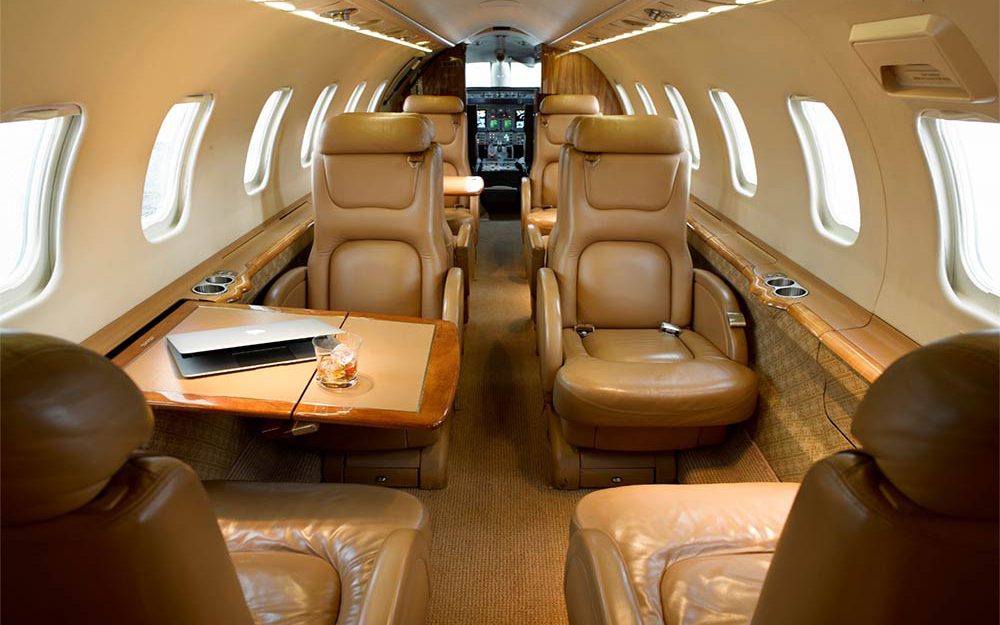

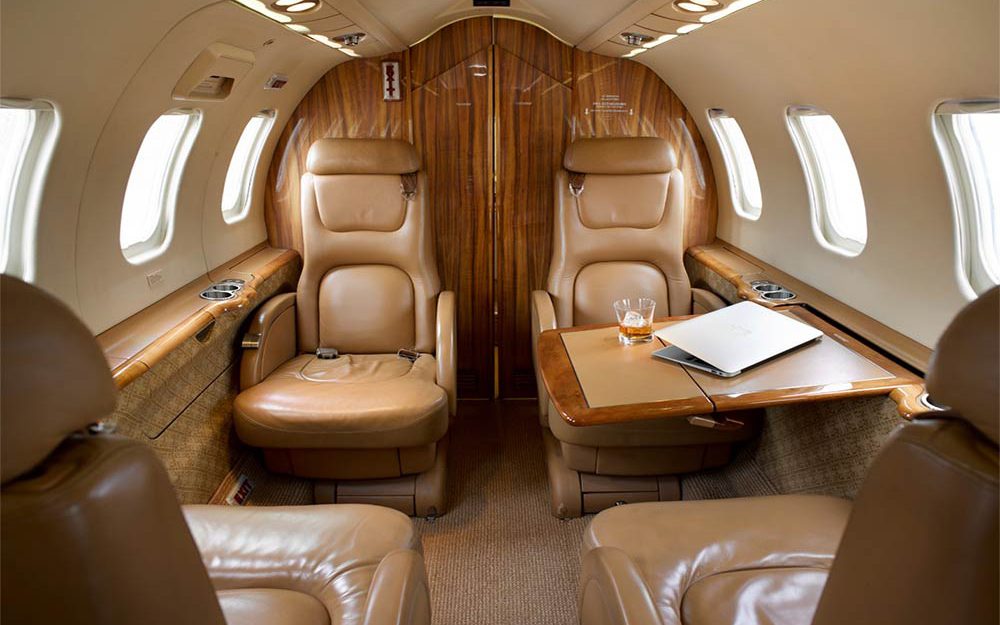

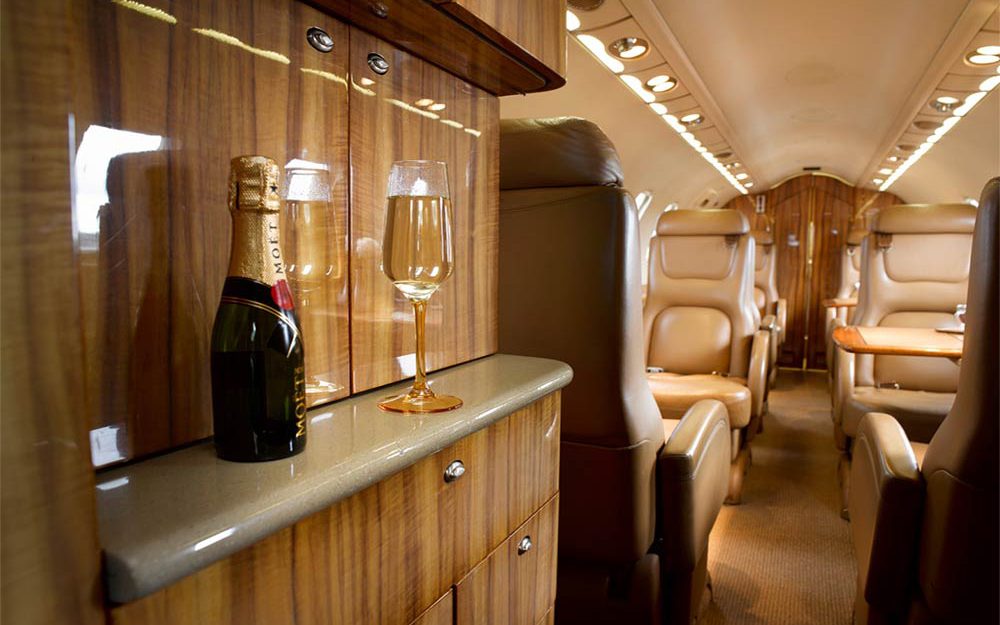

INTERIOR

Standard (9) passenger Double Club seating with Belted Lavatory Configuration, LR45XR Spinneybeck Sabrina 765 Beige Leather passenger seats, with three stowable Executive Tables with Leather Tabletop Inserts. The left and right-side ledges are High Gloss Wood Veneer with leather accent and the Hardware is Brushed Satin Nickel. Verasol Putty 85400 on pleated window shades. The Cabin Headliner & Window line in Tapis Sand Ultra 3850 Ultra leather. The Sidewalls are in Tapis pattern. The cabin lighting includes PSU Indirect Lighting and Dropped Aisle Accent Lighting. The carpet is AIP Landings Loop Tiger’s Eye. The right-side refreshment center has a Hardwood
Bullnose Edge stained to match. Left Hand Cabinet behind Pilots seat. The Cabinetry is High Gloss Veneer. The Flight Deck includes covered in Grey Sheepskin. Passenger seats are fire blocked. The aft cabin includes a Left Side Belted Flushing Toilet with stowable (pocket) privacy doors.

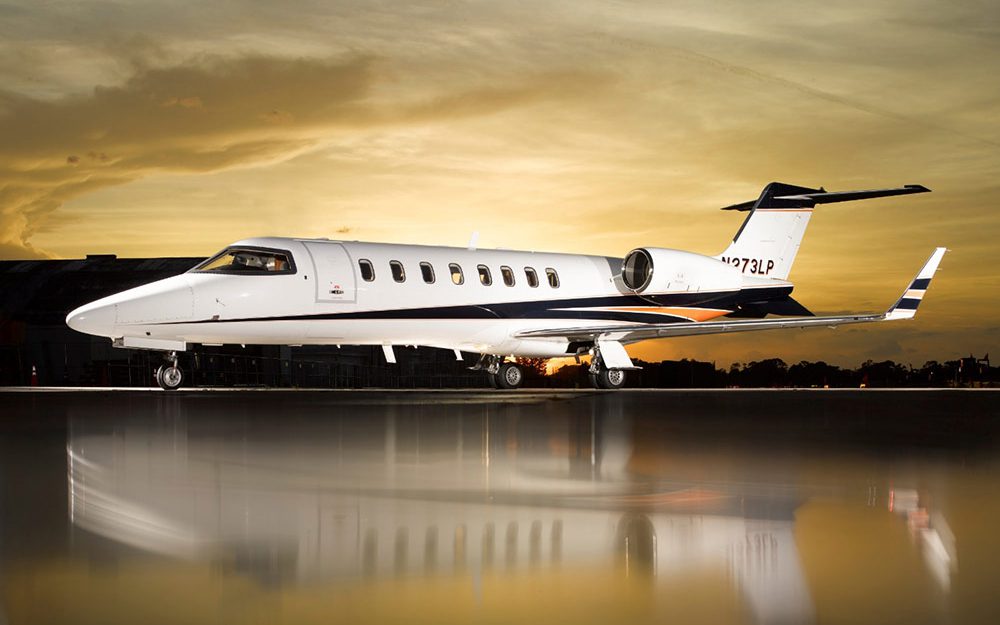

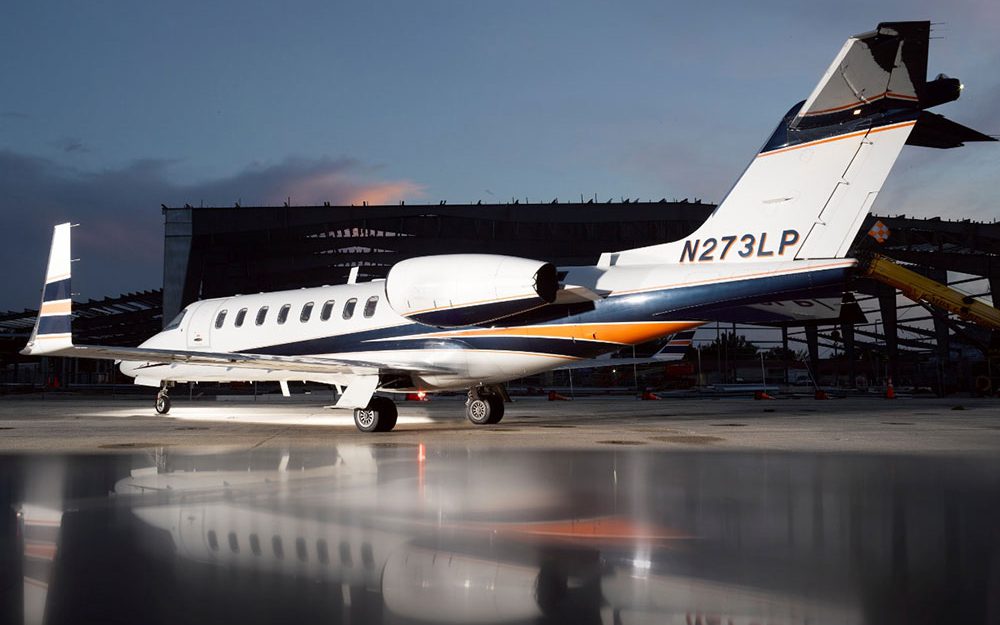

EXTERIOR

Overall Matterhorn White, Arctic Blue, and Omaha Orange accent stripes
