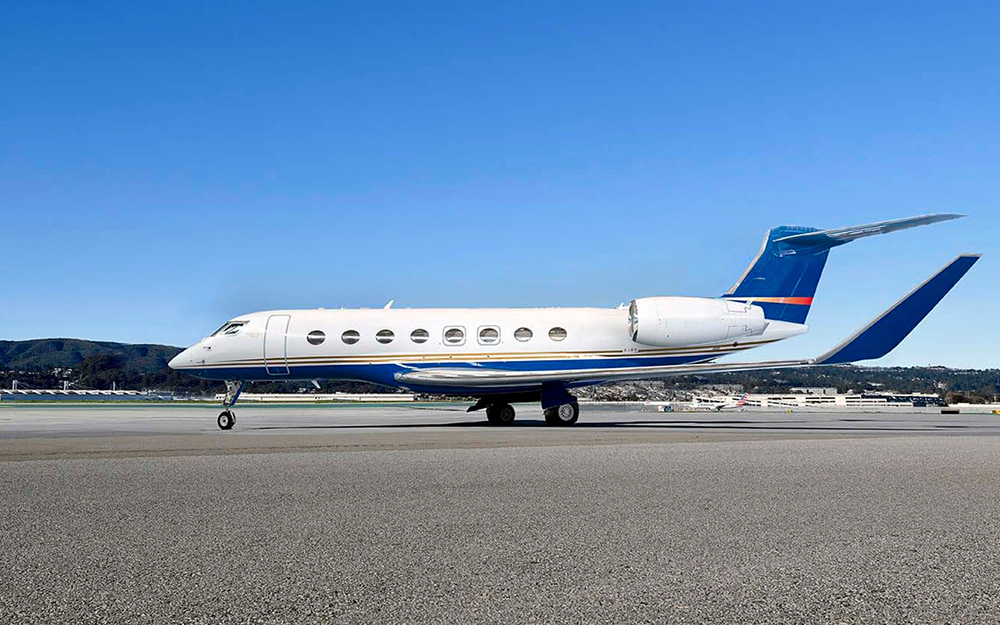

2016 GULFSTREAM G650ER S/N 6173

AIRFRAME

Total time: 2,169 hours
Total landings: 763 landings
Certificate of airworthiness: November 6, 2015
Entry into service: March 14, 2016

ENGINES

Rolls-Royce BR725-A1-12

Left engine
Serial number: 25459
Time since new: 2,169 hours
Cycles since new: 763 cycles

Right engine
Serial number: 25458
Time since new: 2,169 hours
Cycles since new: 763 cycles

APU

Honeywell RE-220
Serial number: P-310
Time since new: 2,860 hours

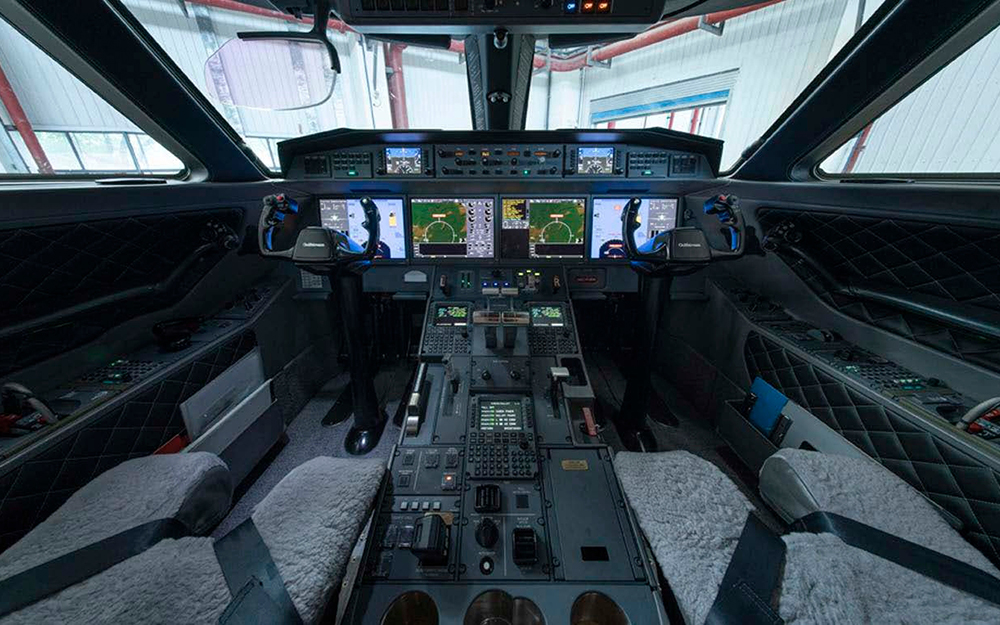

AVIONICS

1 Gulfstream PlaneViewTM II / Honeywell Primus Epic Avionics Suite / FANS 1/A +
4 Flat-panel LCD Electronic Display Units
3 Multi-Function Control Display Units (MCDUs)
2 Standby Multifunction Controllers (SMC)
2 Cursor Control Devices (CCDs)
4 Multifunction Air Data Probes (MFPs)
3 Flight Management Systems (FMS)
2 Automatic Flight Guidance Systems (AFGS)
2 Autothrottles (AT)
1 Head Up Display (HUD) / Enhanced Vision System (EVS)
1 Multi-channel Satellite Communications System (SATCOM)
2 High Frequency (HF) Communications
2 Very High Frequency (VHF) Communication Tranceivers
1 Very High Frequency (VHF) Communication/Navigation (NAVCOM)
2 Very High Frequency (VHF) Navigation Receivers
1 Automated Direction Finder (ADF)
2 Air Traffic Control (ATC) Mode S
1 Traffic Collision Avoidance System (TCAS)
2 Distance Measuring Equipment (DME) Transceivers
1 3-D Color Weather Radar
3 Inertial Reference Systems (IRS)
2 Global Positioning Systems (GPS)
2 Radio Altimeters (RA)
2 Enhanced Ground Proximity Warning Systems (EGPWS)
1 Emergency Locator Transmitter (ELT)
1 Flight Data Recorder System (FDR) (88 Parameters)
1 Cockpit Voice Recorder (CVR)

PROGRAMS AND MAINTENANCE

Engines enrolled on JSSI
96 Month Inspection due March 31, 2032

INSTALLED OPTIONS

Ka Band
Swift Broadband
Honeywell LSZ-860 Lightning Sensor System (ASC-006B)
Runway Awareness Advisory System (ASC-005B)
Emergency Vision Assurance System (EVAS)
ADS-B Out Version 2 (ASC-036)
Audio Visual Distribution System (AVDS)
Predictive Windshear (ASC-007A)
Satcom Direct Router

INTERIOR

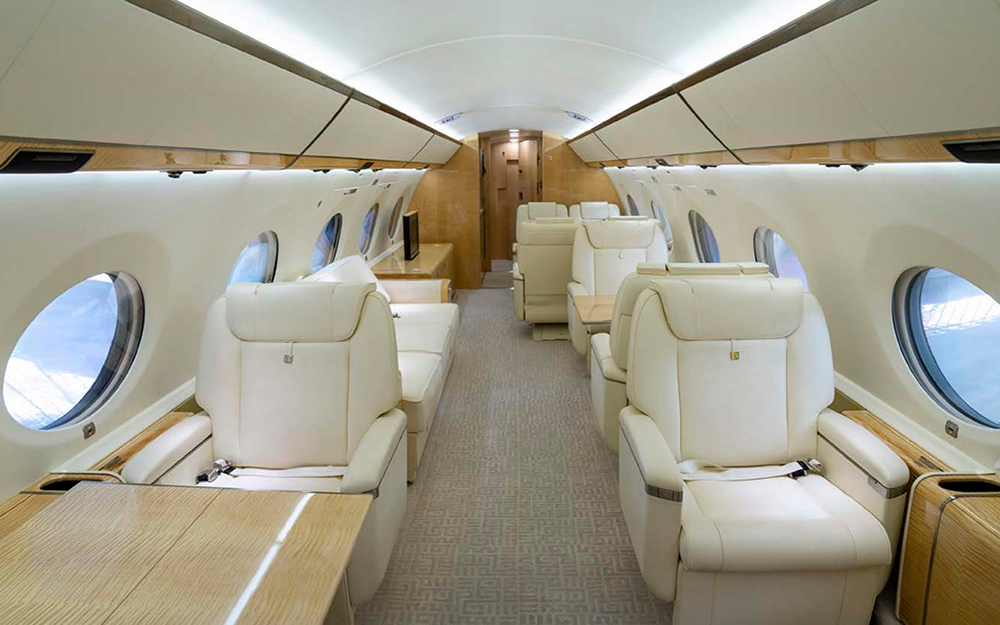

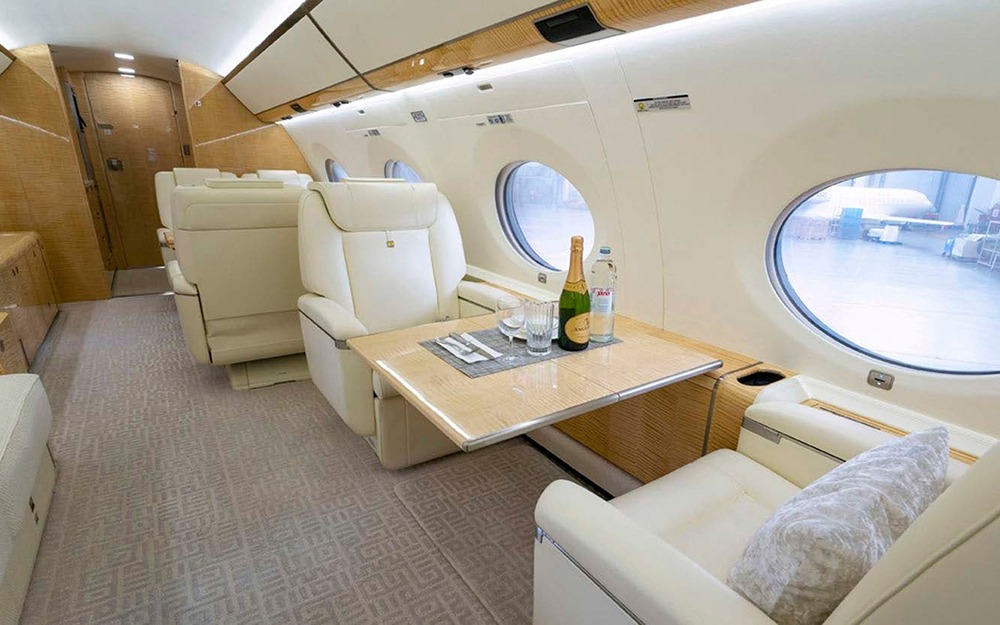

Cabin layout: Thirteen-passenger configuration with forward crew rest

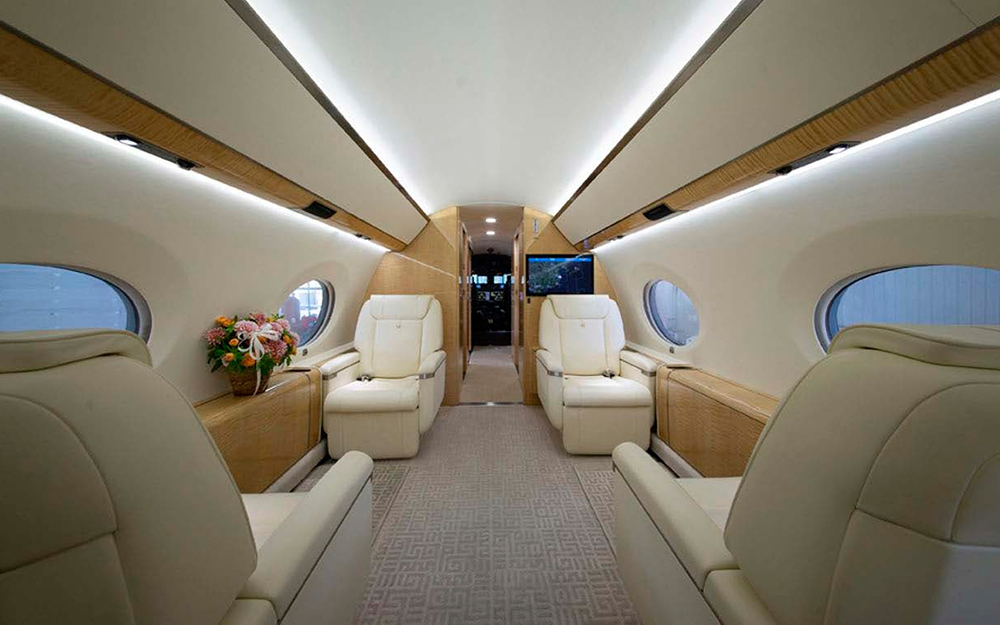

Forward cabin: Four single club seats

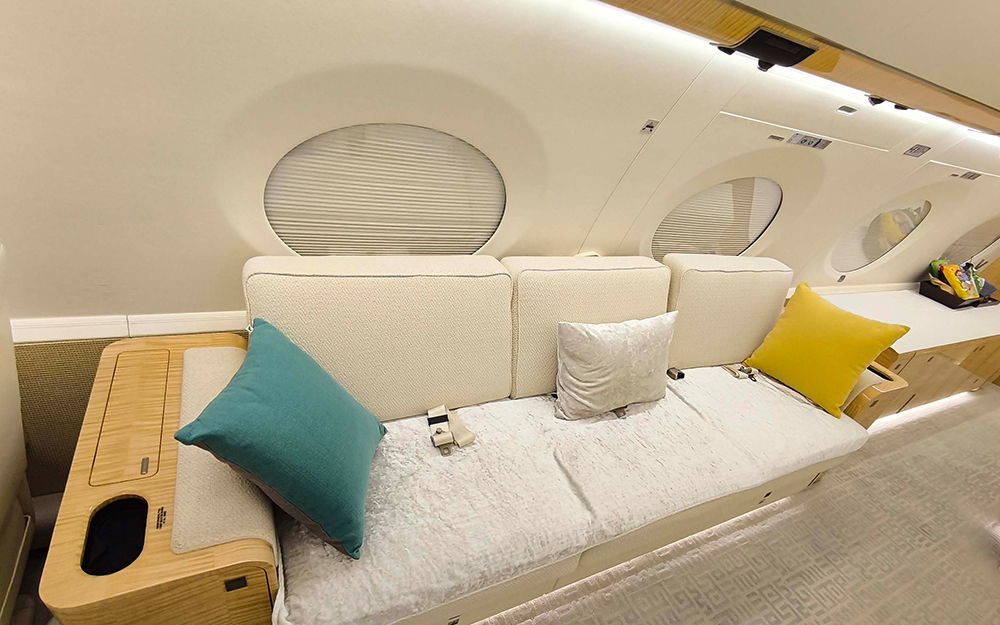

Mid cabin: Two single seats opposite a three-place divan

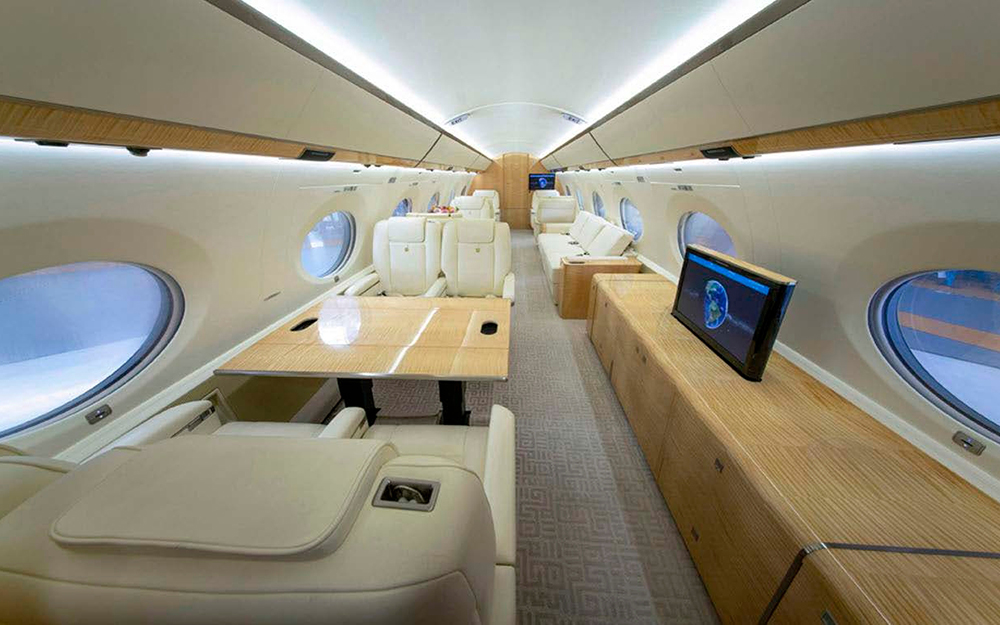

Aft cabin: Four-place conference group opposite a credenza

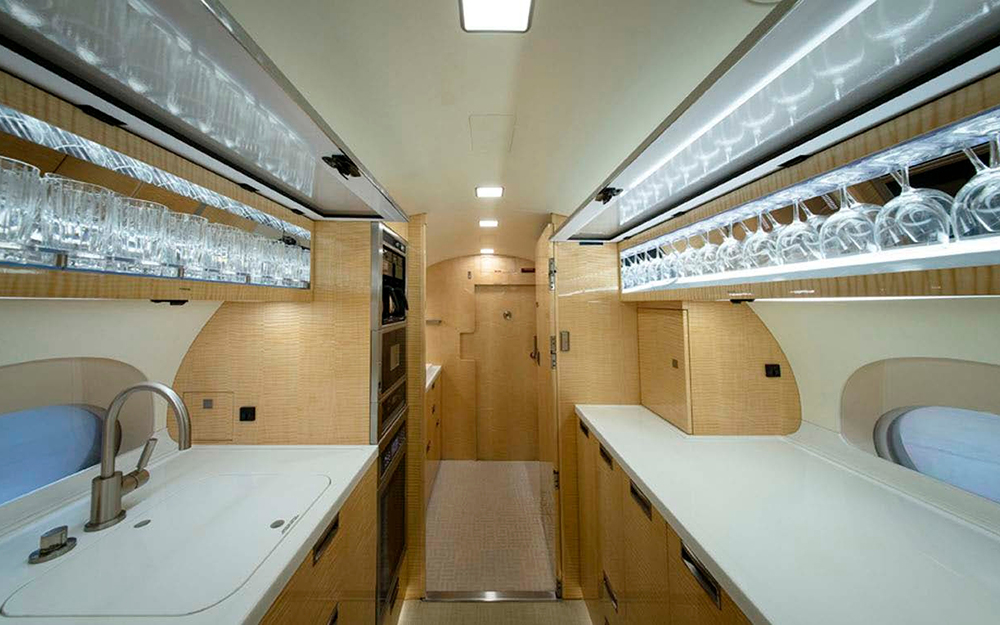

Galley: Aft galley with a convection oven, microwave and and two coffee makers

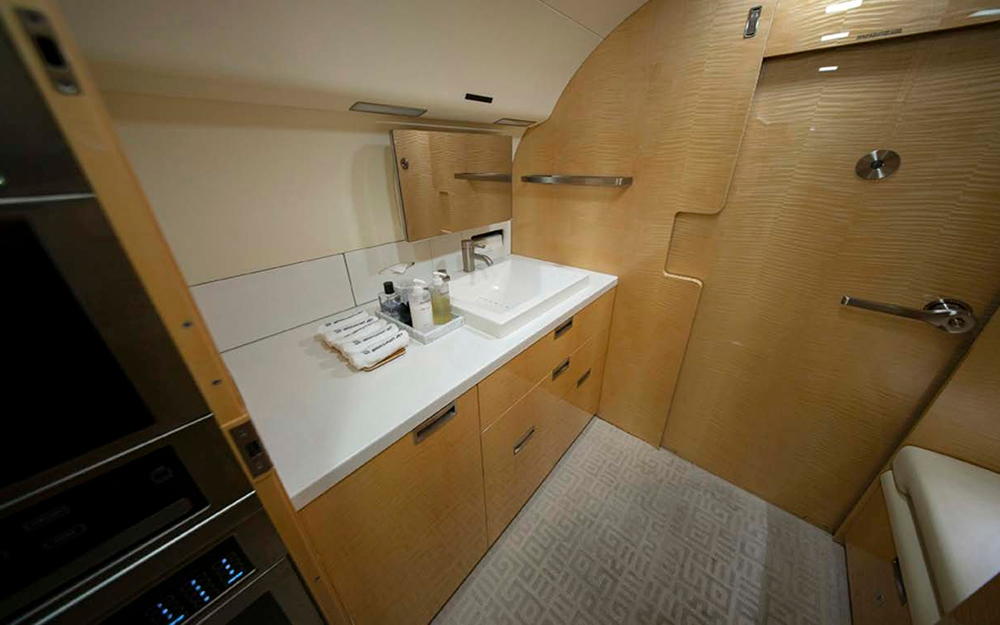

Lavatory: Forward crew and aft passenger lavatories

COLORS

Seats: Aeristo, Aeronappa Vanilla Cream
Divan: Glant Couture Tweed Overweaven Ivory
Headliner/PSU: Tapis, Ultraleather Vanilla Cream
Upper Sidewall: Tapis, Ultraleather Vanilla Cream
Lower Sidewall: Townsend, Expressions Embossed Full Grain Cowhide Chainlink Sesame Seed
Countertops: Natural Quartz White Cliff
Wood: Qtr Fig Sycamore
Metal finish: Satin Smoked Nickel
Carpet: Labrinth w/Silk
Exterior (Touch-up paint April 2026 at GAC St. Louis): Matterhorn White with Blue and Gold stripes

CABIN EQUIPMENT

26-inch HD LCD monitor in the forward right-hand cabin bulkhead
17 inch HD LCD monitor in crew compartment
26-inch HD LCD monitor on the electric lift in the credenza
12.1 inch HD LCD personal monitors in inboard armrests of each single seat

NEW AIRCRAFT WARRANTIES – FULLY TRANSFERABLE

Production Structural Labor and Material Until March 14, 2036 or 20,000 hours
Rolls-Royce Nacelle Until March 14, 2036
