2012 BOMBARDIER CHALLENGER 300 S/N 20373

HIGHLIGHTS

Fully Enrolled on Programs
Very Low Hours
All Major Maintenance by Bombardier USA
Maintenance Tracking Enrolled on CAMP Program

AIRFRAME

C OF A ISSUE DATE: JUNE 27, 2012
IN SERVICE DATE: DECEMBER 27, 2012
TOTAL HOURS: 3,256
TOTAL CYCLES: 1,892

AIRFRAME ENROLLED ON SMARTPARTS PROGRAM
(Hourly Rate $515)

ENGINES

HONEYWELL AS907-1-1A

Engine #1
SERIAL NUMBER: P118886
TOTAL TIME: 3,256
CYCLES: 1,892

Engine #2
SERIAL NUMBER: P118878
TOTAL TIME: 3,256
CYCLES: 1,892

ENGINES ENROLLED ON HONEYWELL MSP GOLD PROGRAM
(Hourly Rate $565.12/engine)

APU

HONEYWELL GTCP 36-150(BD)

SERIAL NUMBER: P-0486
TOTAL TIME: 3,344

APU ENROLLED ON MSP GOLD PROGRAM
(Hourly Rate $151.44)

AVIONICS

COLLINS PRO LINE 21 AVIONICS SUITE
DUAL COLLINS IFIS (SB 100-46-01)
DUAL COLLINS FMS-5000 w/LPV
DUAL COLLINS GPS-4000S
DUAL COLLINS TDR-94D TRANSPONDERS
DUAL COLLINS VHF-4000 COM
DUAL COLLINS NAV-4000
DUAL COLLINS HF (SB 100-23-01 R6)
COLLINS DME-4000
COLLINS ALT-4000
TCAS II CHANGE 7.1
EGPWS MK VIII
FDR
CVR
RVSM
ELT C406-N

INSTALLED SB’S (FULL LIST AVAILABLE UPON REQUEST)

SB 100-23-01 R6 DUAL HF SYSTEM
SB 100-23-02 R2 SELCAL
SB 100-23-04 R3 3
RD VHF SYSTEM
SB 100-23-06 R4 DATALINK and SELCAL
SB 100-23-08 R1 SATCOM – IRIDIUM ANTENNA
SB 100-34-06 R1 TURBULENCE WX RADAR
SB 100-34-08 R2 3D NAVIGATIONAL MAP
SB 100-34-10 R2 FMS V-SPEED
SB 100-46-01 R1 2
ND FILE SERVER UNIT
SB 100-34-28 R1 ADS-B COMPLIANCE

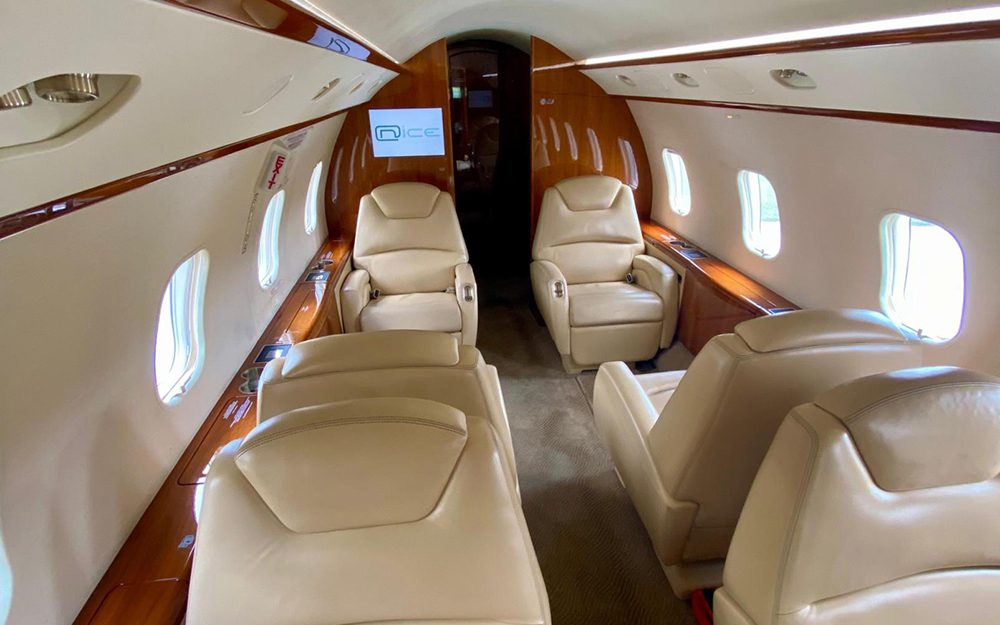

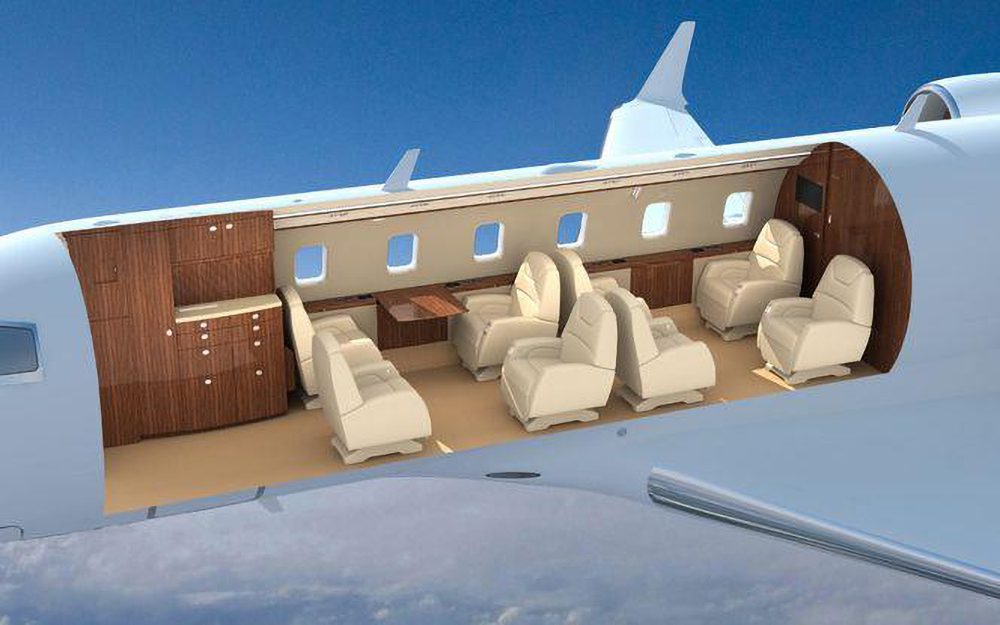

INTERIOR

Original Completion at Bombardier Completion Center, Montreal, Canada. Fireblocked;

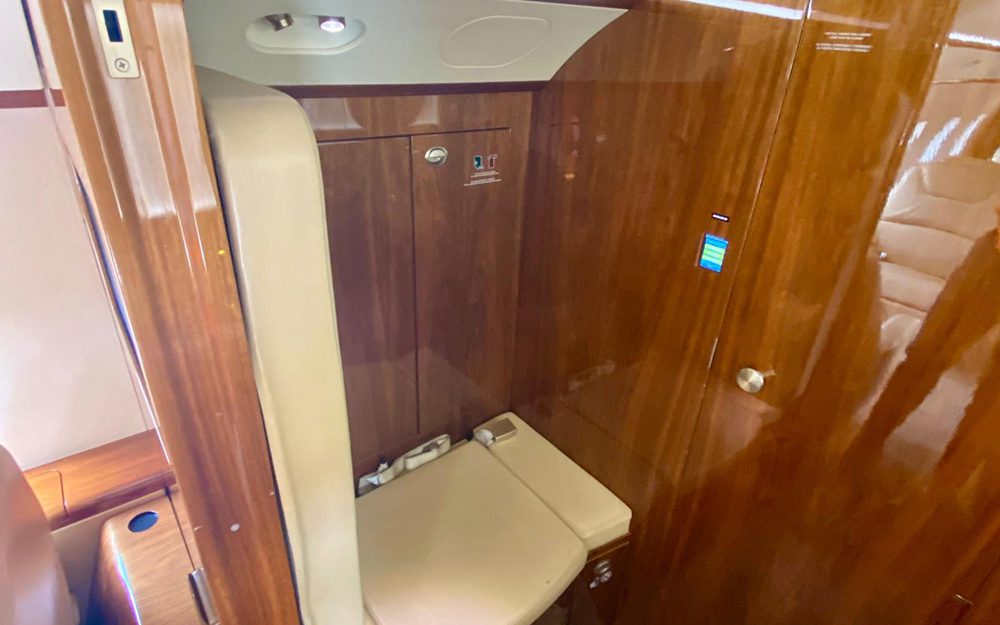

Nine (9) passenger seating including the belted lavatory seat.

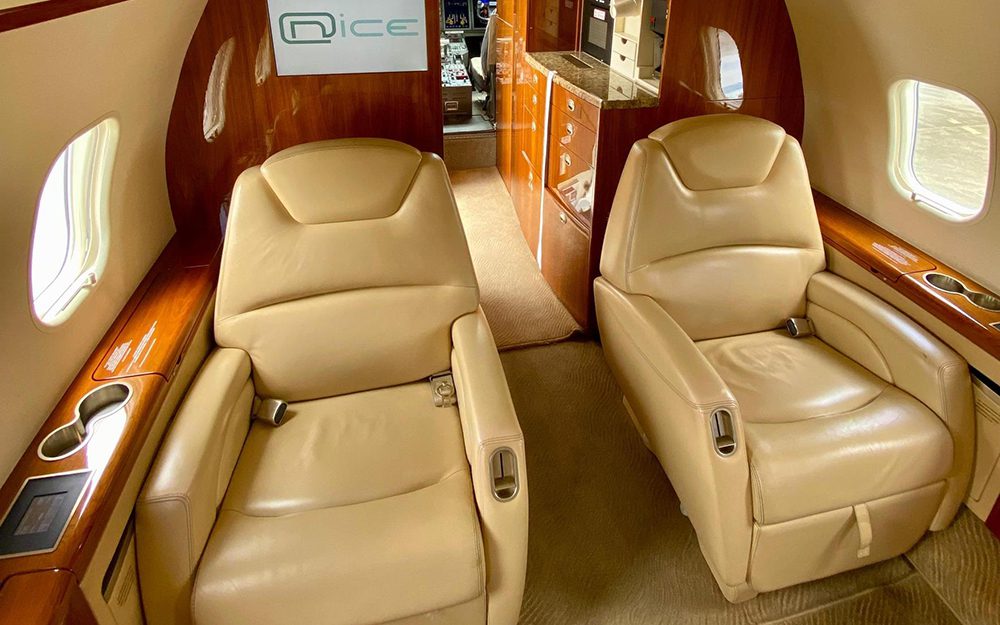

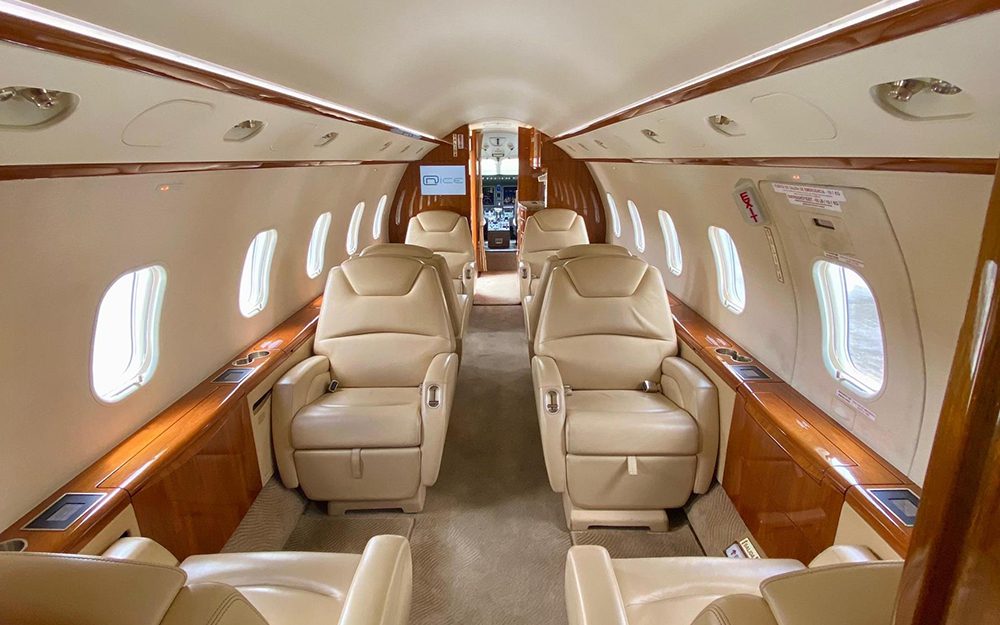

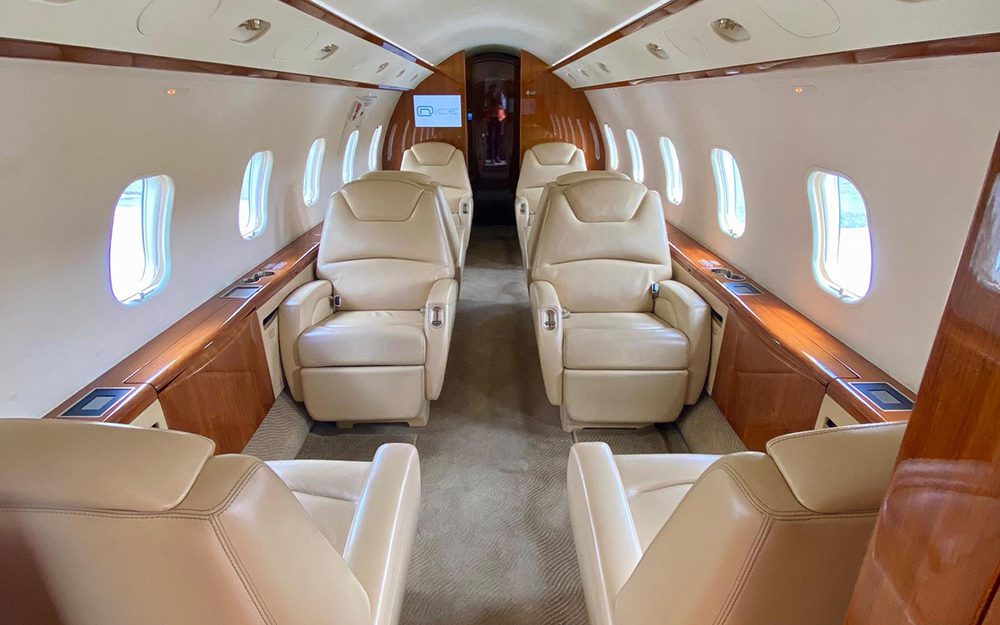

The cabin features eight (8) executive seats with fold out tables.
The standard galley is located forward and includes an espresso maker and Wavejet microwave.
Equipped with Honeywell Aspire 200 LG Inmarsat Satellite system and Wi-Fi including the CNX-200 Network Accelerator Series 2-router.

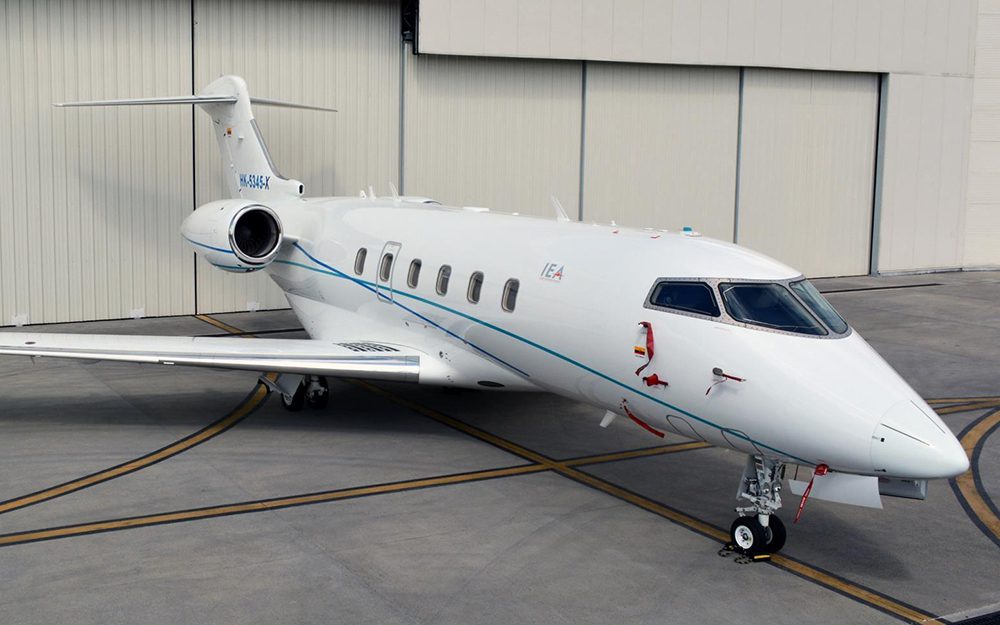

EXTERIOR

Original completion, overall White with Blue Striping
