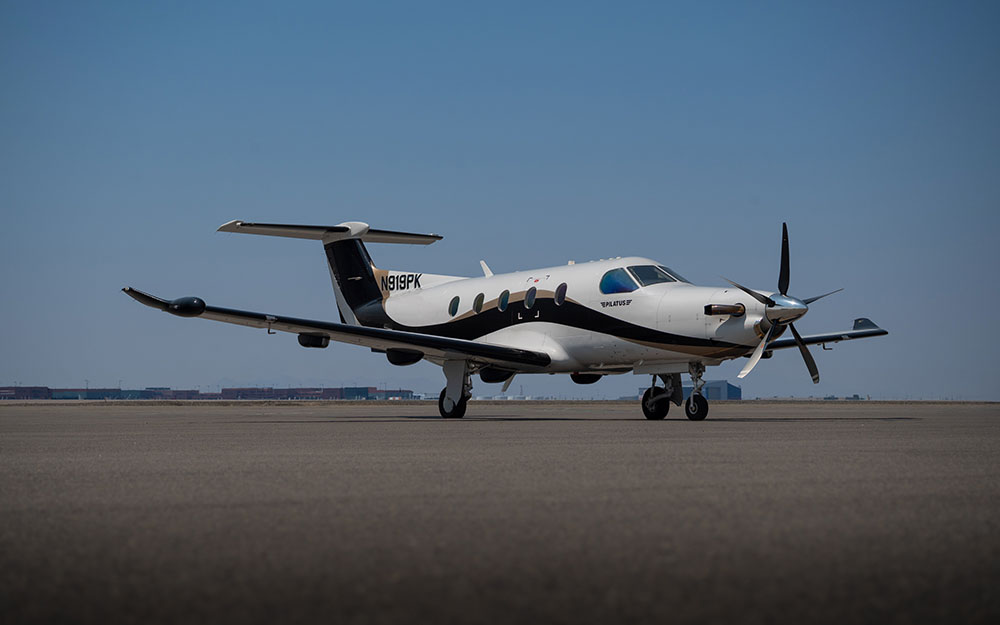

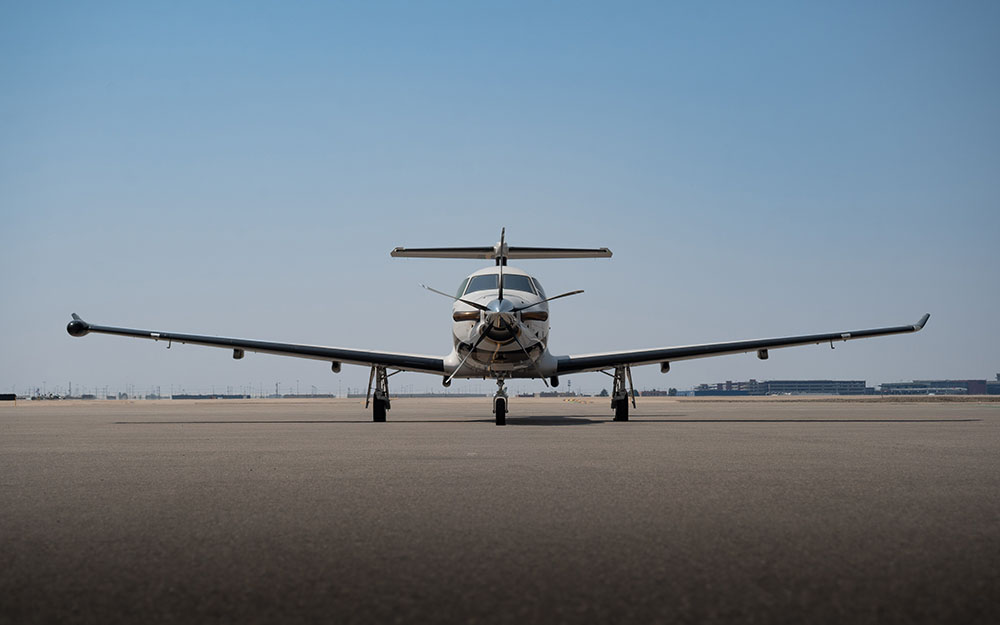

2009 PILATUS PC-12 NG S/N 1095

HIGHLIGHTS

New 5-Blade Hartzell
Partial Interior Update
Recent Engine Overhaul
Enrolled on MSP Avionics & Mechanical Program

AIRFRAME

Total Hours: 3,610
Total Landings: 2,319

ENGINES

Pratt & Whitney PT6A-67P

Engine 1: PCE-RY0097
Total Hours: 3,548
Cycles: 2,263

PROPELLER

Hartzell 5-Blade Composite HC-E5A-3A

Serial #: SA1383
Total Hours: 142

AVIONICS

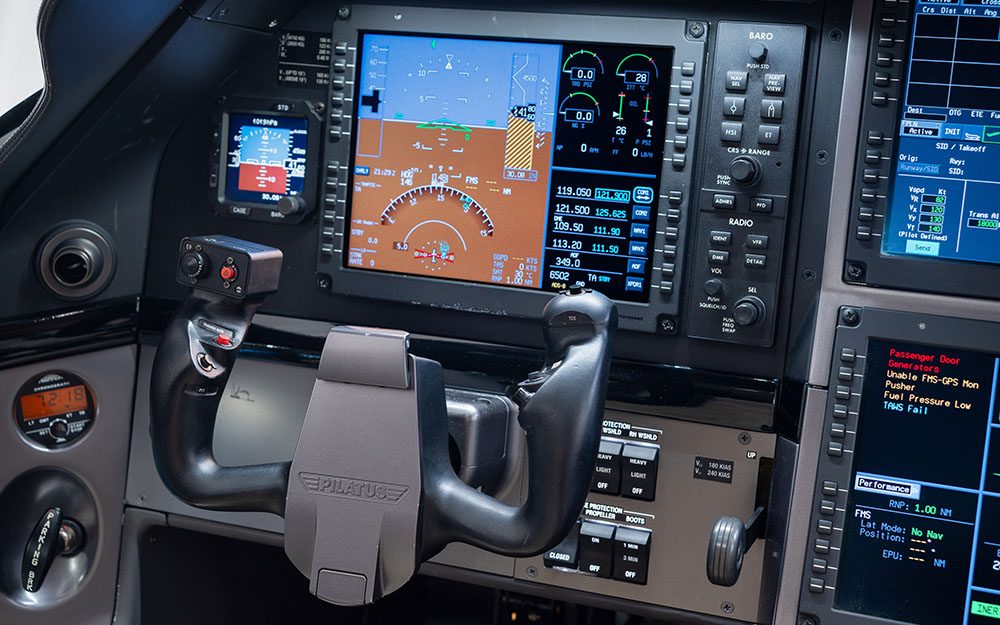

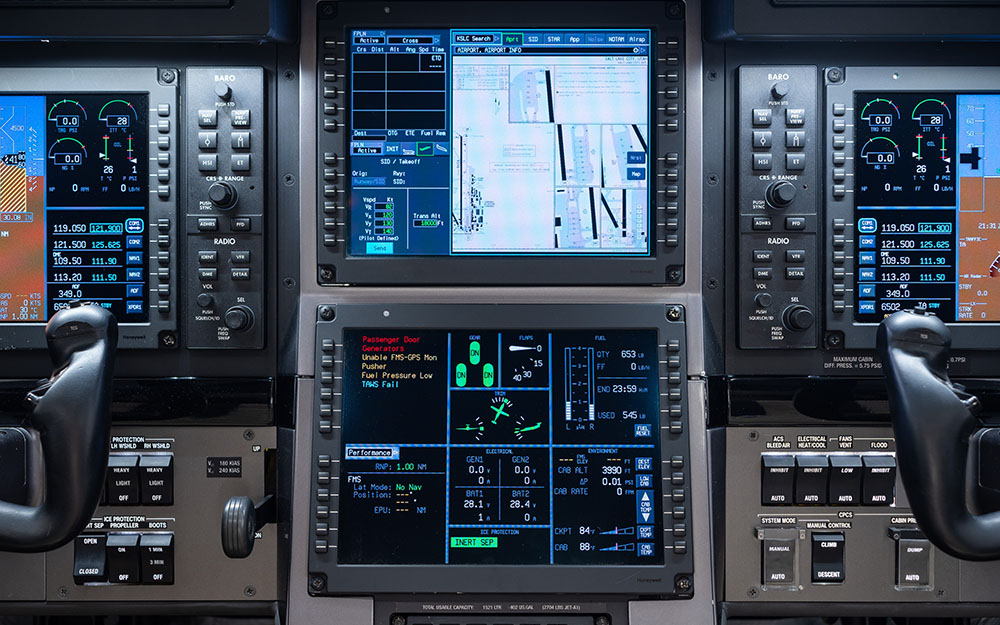

Integrated Honeywell Primus Apex Suite
Primary Flight Display (PFD), Flat Panel Display Unit with ADI/ HSI (Dual-Channel Data Source for Air Data, Attitude, and Heading Reference), Radar Altimeter, Engine Instruments, Dual COM (8.33 KHz spacing), Dual NAV, DME, Mode S Transponder, and ADF
Dual Primary Flight Display (PFD) Controller
Integrated GPS Receiver
Audio/Marker panel
Flight Guidance Controller for Digital Three-Axes Autopilot
Situational Awareness Multifunction Display (MFD), Flat Panel Display Unit with Flight Management System (FMS), Weather Radar indication and Moving map with overlays
Systems Multifunction Display (MFD) with Warnings, Cautions and Advisories (CAS messaging), Gear, Trim and Flaps Indication, Fuel Indication, ECS/CPCS Indication, and Electrical Systems Indication
Nav Interface to 406 MHz ELT
Cockpit Voice and Flight Data Recorder
Multifunction Display (MFD) Controller (includes Alphanumeric Keyboard)
Cursor Control Device (CCD)
Central Maintenance System
Integrated Electronic Standby Instrument System (ESIS)
ELT 406 MHz with remote switch

FEATURES/ OPTIONS

Connected Flight Deck
Air Conditioning System
Pulsing Recognition Light
Satcom Antenna
Coupled VNAV
RVSM Capable
XM Weather (Subscription Required)
60hz/110V Outlets

MAINTENANCE

Recent Engine Overhaul (79 Hours Since Overhaul) Completed by Pratt & Whitney
Annual and 300 Hour Inspection Completed August 2026 by OK3 Air HCR

INTERIOR

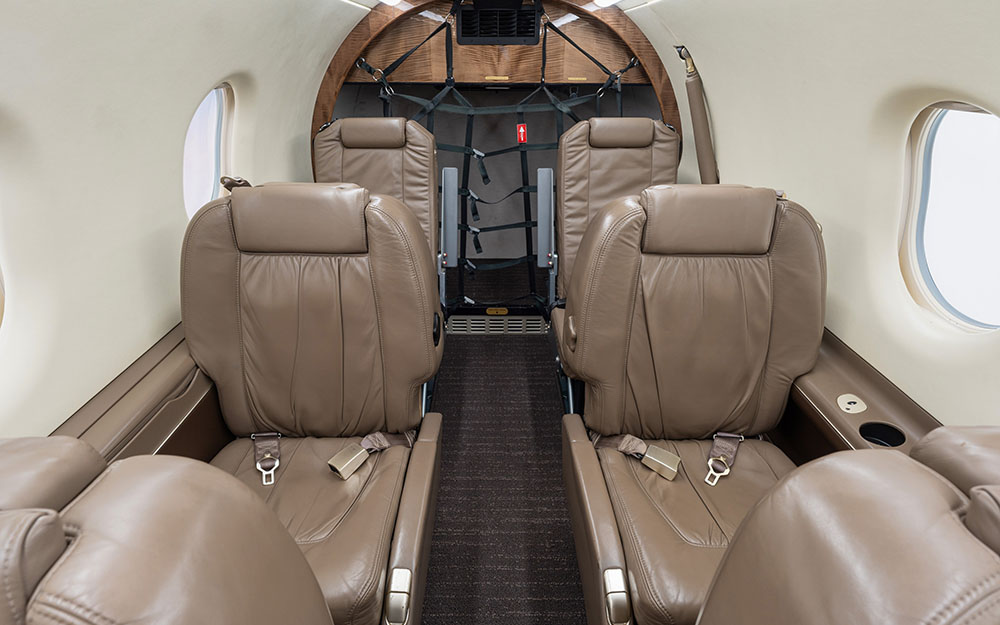

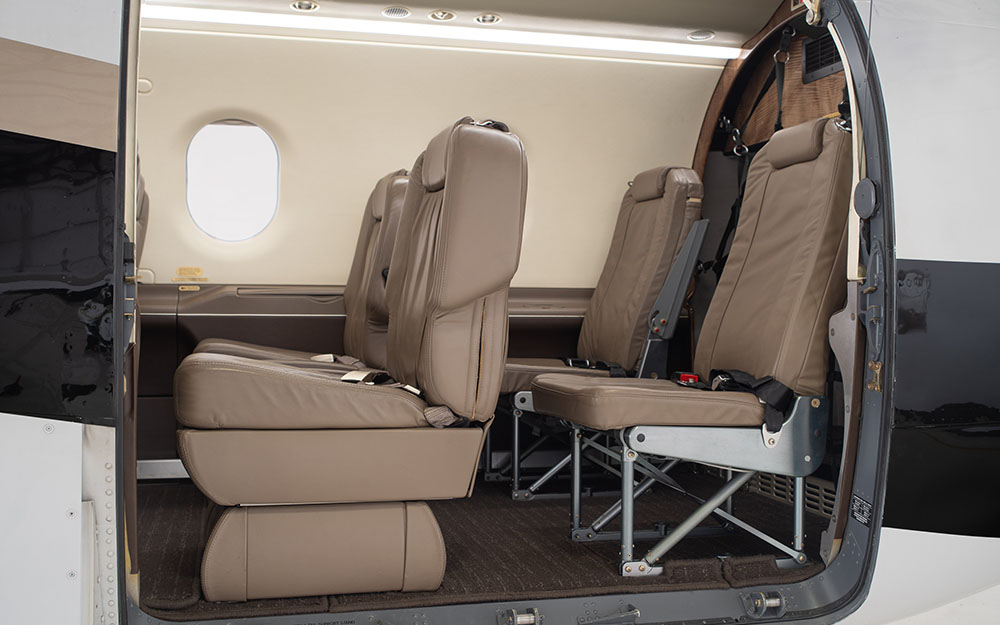

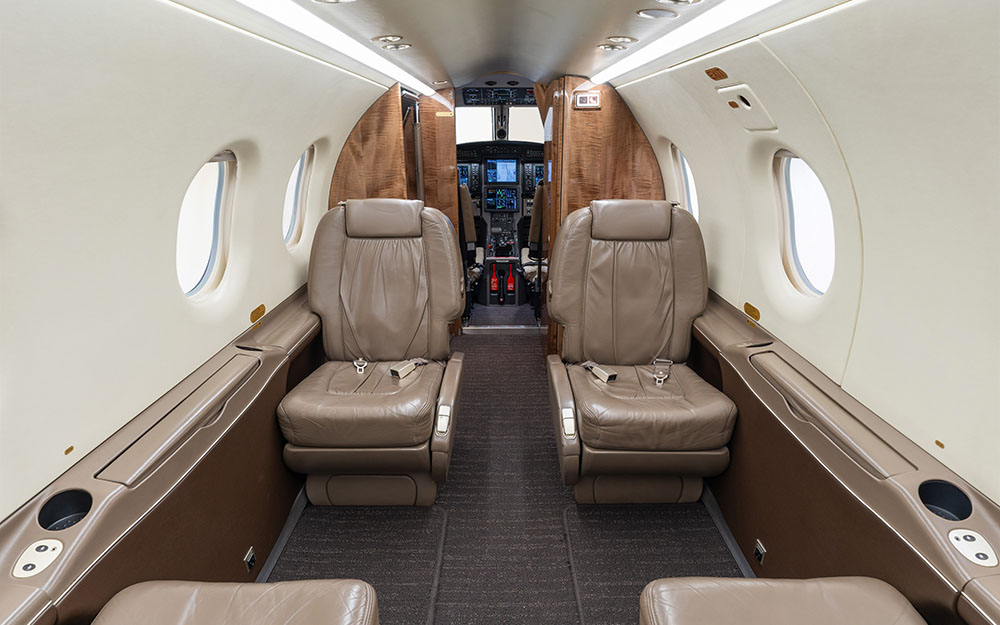

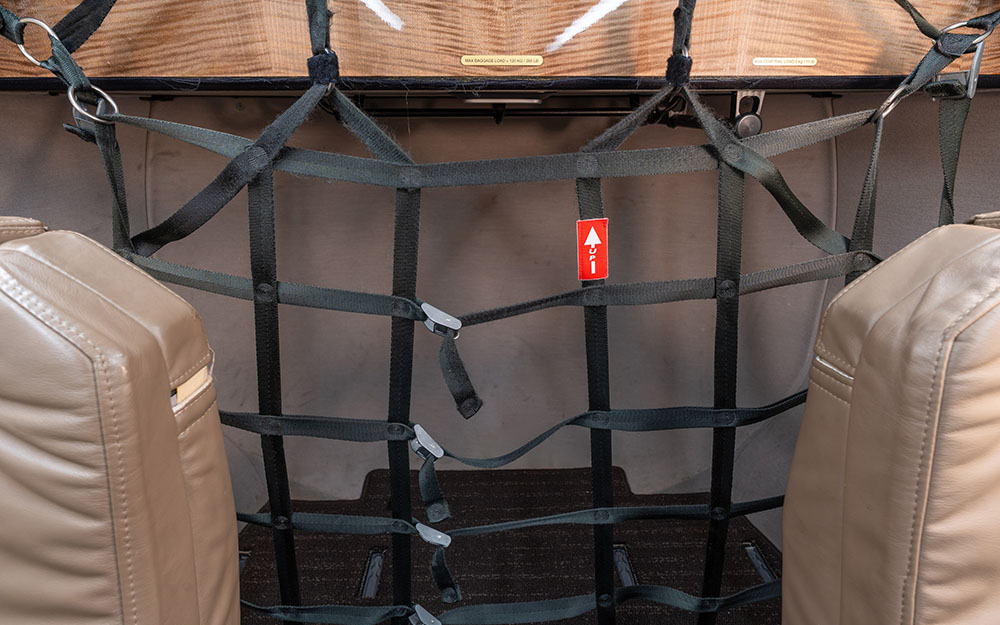

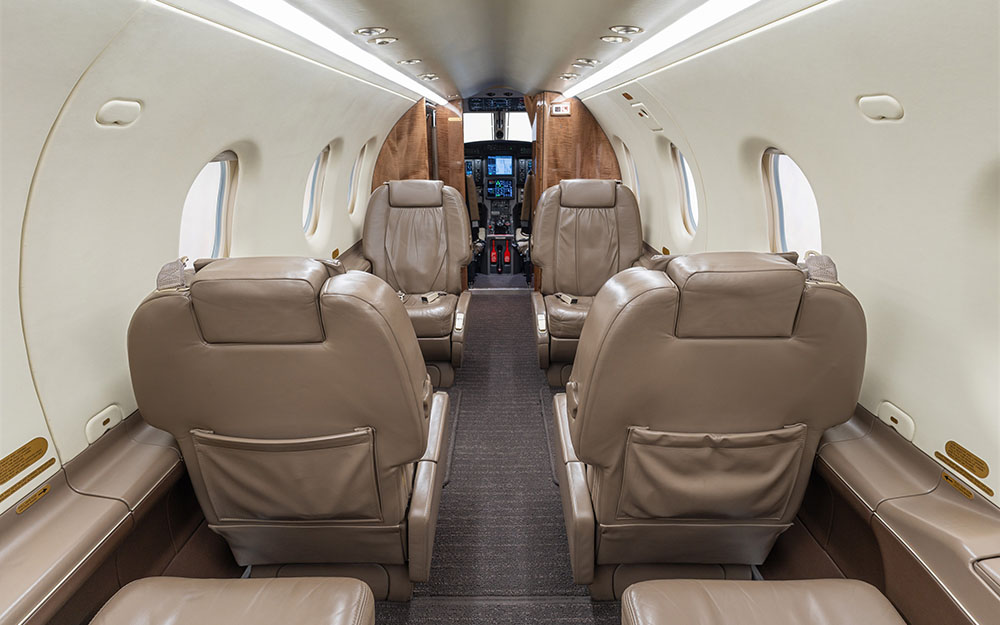

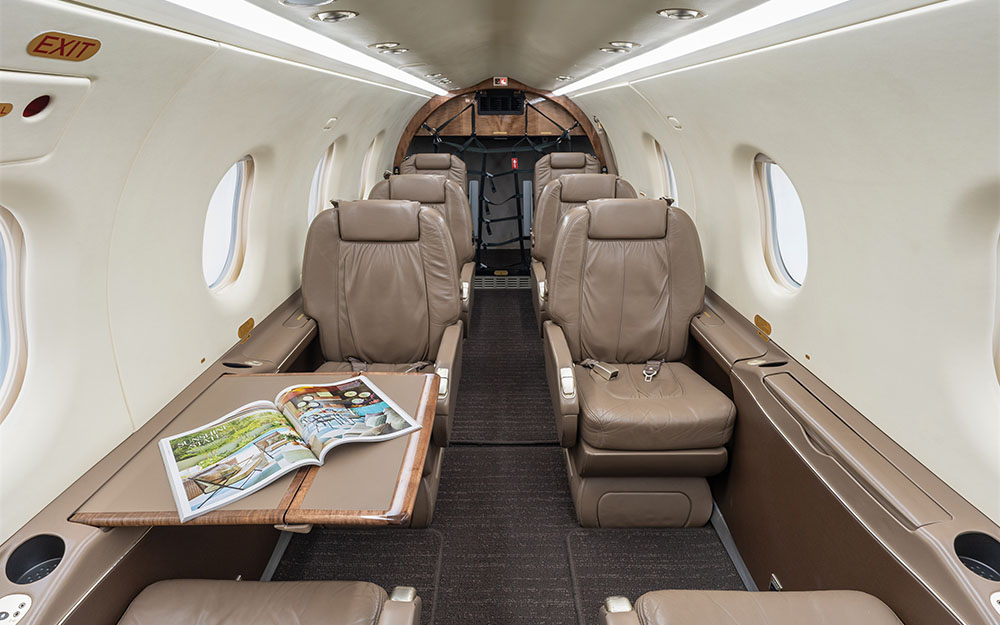

Six (6) Executive + Two (2) Commuter Seat Configuration

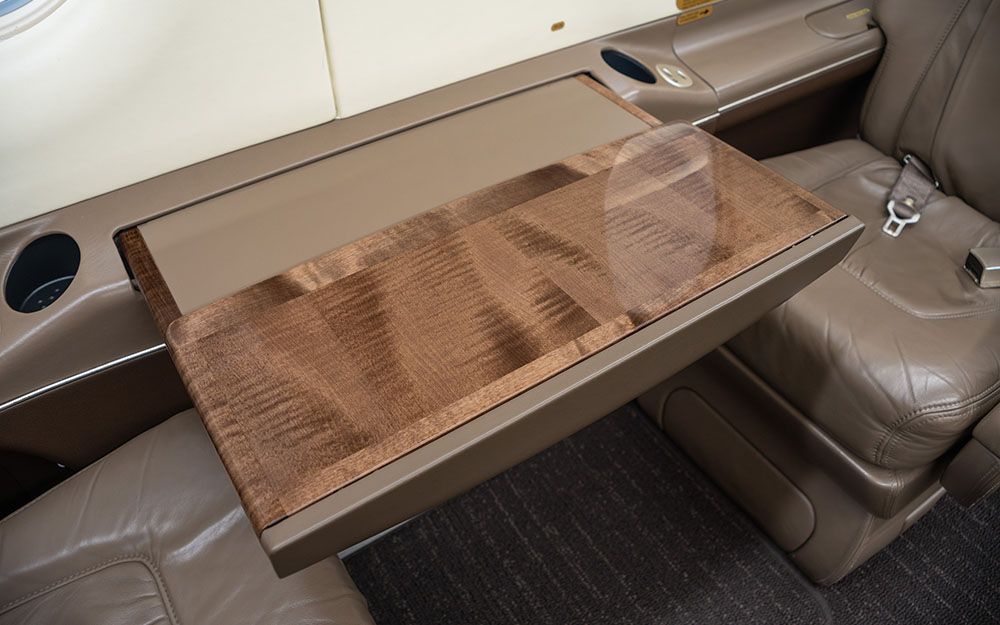

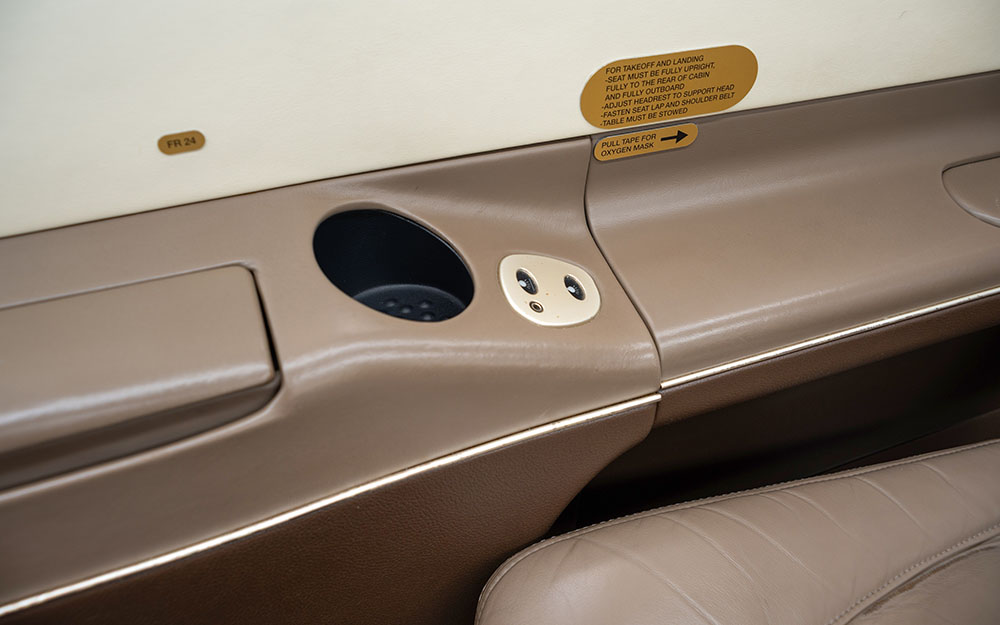

Original Interior Completed in Tan Leather Seats with Matching Smoked Oak Veneer Woodwork
New Carpet in Rhythem Classic Brown & Lower Side Wall in Tapis Truffle Completed November 2024 by West Star Aviation GJT
Chemical Flushing Non-Belted Lavatory

EXTERIOR

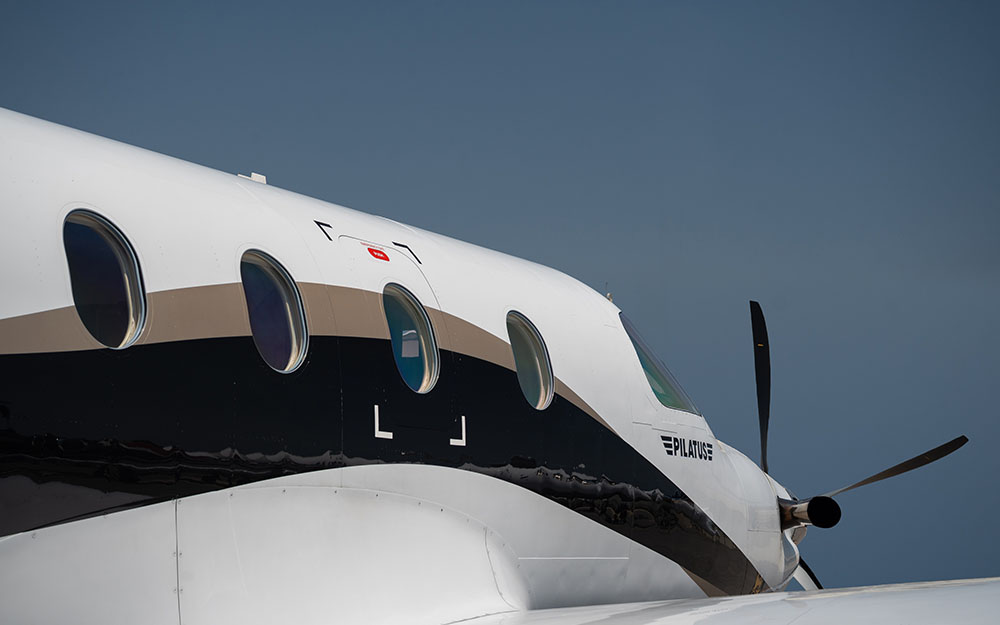

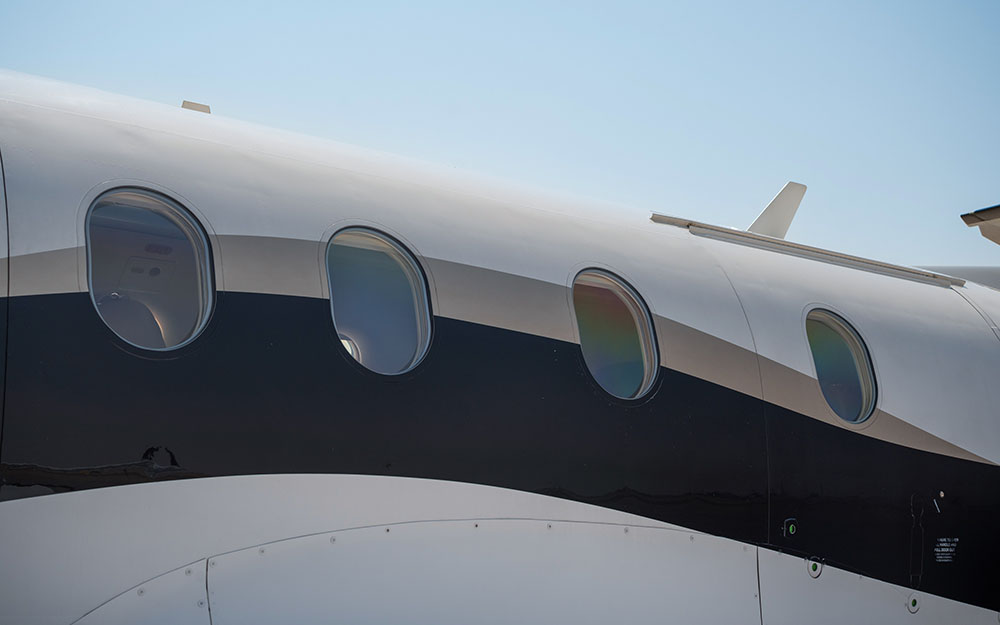

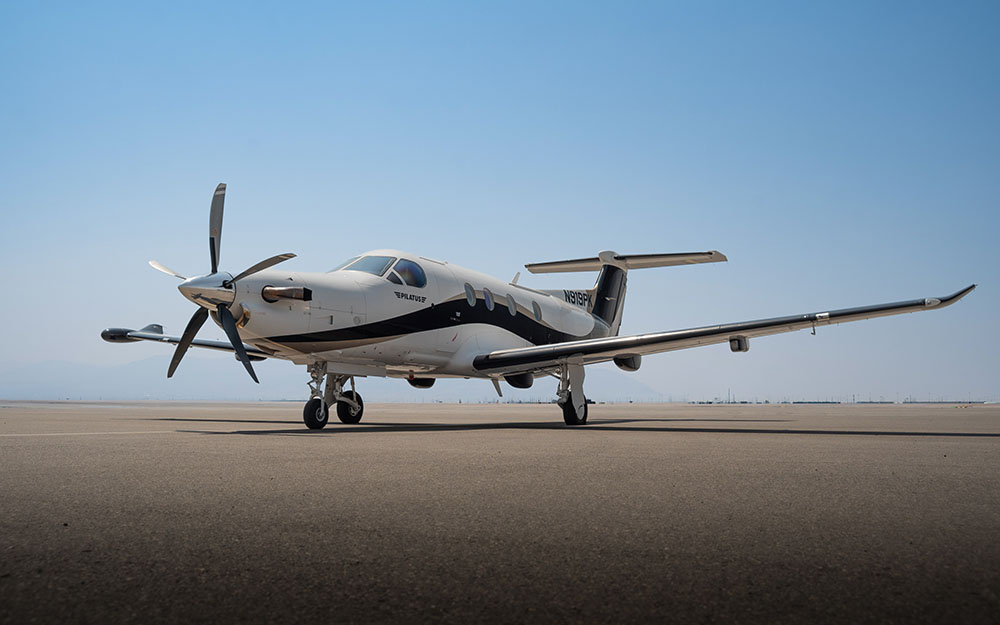

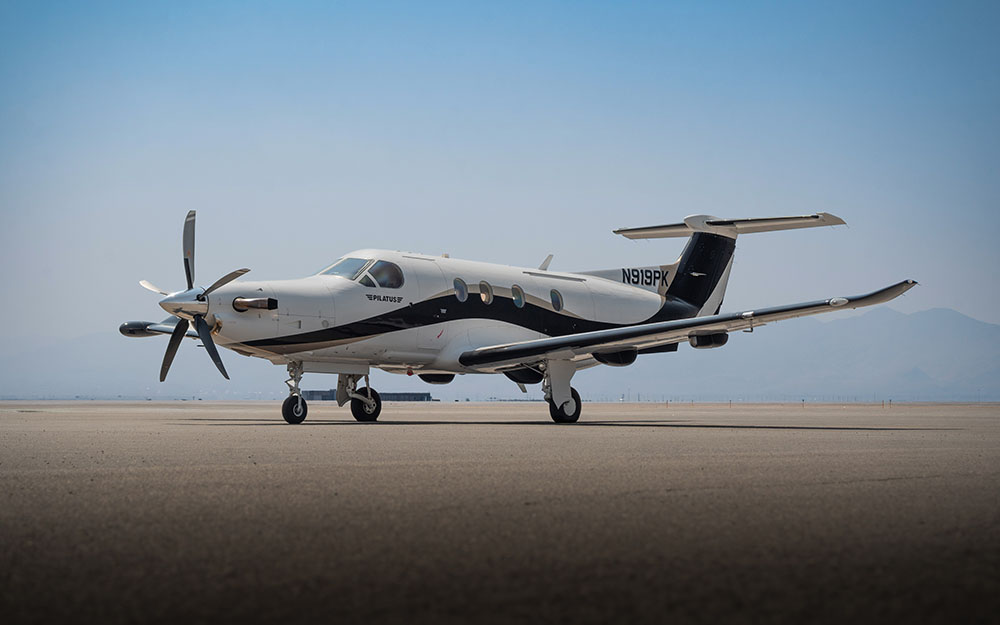

Original White Base Fuselage with Black and Gold Detailing Throughout
Chrome Propeller Spinner
