2009 BOMBARDIER GLOBAL XRS S/N 9276
Price
Price On Request
Description
HIGHLIGHTS
Fully Enrolled on Programs
DU-875 Display Upgrade
KA-Band
Thirteen Passenger Configuration
AIRFRAME
| Total Time Since New | 4,011 Hours (As of June 06, 2025) |
| Total Landings Since New | 1,373 Landings |
| Entry into Service Date | March 30, 2009 |
| Program Coverage | JSSI |
| Maintenance Tracking | CAMP |
ENGINES
| Left Engine | Right Engine | |
| Description | Rolls Royce BR700-710A2-20 | |
| Serial Number(s) | 12665 | 12664 |
| Total Hours Since New | 3,917 Hours | 3,917 Hours |
| Total Cycles Since New | 1,344 Cycles | 1,344 Cycles |
| Program Coverage | Rolls Royce Corporate Care Enhanced | |
APU
| Description | Honeywell RE220 |
| Serial Number | P-399 |
| APU Total Time Since New | 5,898 Hours |
| Program Coverage | Honeywell MSP |
AVIONICS
The Bombardier Global XRS is equipped with an integrated, Honeywell Primus 2000XP avionics suite. A general summary of this aircraft’s avionics suite is as follows:
| Type of Unit | Quantity | Unit Description |
| EFIS (Electronic Flight Instrument System) | Six-Tube | Honeywell DU-875 |
| FMS (Flight Management System) | Triple | Honeywell NZ-2000 |
| CDU (Central Display Unit) | Triple | Honeywell CD-820 |
| IRS (Inertial Reference System) | Triple | Honeywell LASEREF IV |
| GPS (Global Positioning System) | Dual | Honeywell |
| MADC (Micro Air Data Computer) | Triple | Honeywell AZ-950 |
| NAV (Navigation Radio) | Dual | Honeywell RZ-851 |
| DAU (Data Acquisition Unit) | Quad | Honeywell DA-810 |
| IAC (Integrated Avionic Computer) | Triple | Honeywell IC-810 |
| HUD (Head Up Display) | Single | Bombardier Head Up Display |
| EVS (Enhanced Vision System) | Single | Bombardier Enhanced Vision System |
| VHF COM (Very High Freq. Communications) | Triple | Honeywell RCZ-833M (Dual) and RCZ-833 (Single) |
| HF COM (High Freq. Communications) | Dual | Collins HF-9031A |
| SATCOM (Satellite Communications) | Single | Collins SRT-2100 |
| SELCAL (Selective Calling System) | Single | Avtech CSD-714 |
| WRADAR (Weather Radar) | Single | Honeywell WU-880 |
| RADAR ALT (Radar Altimeter) | Dual | Collins ALT-4000 |
| XPNDR (Transponder) | Dual | Honeywell RZ-851 |
| EGPWS (Enhanced Ground Proximity Warning System) | Single | Honeywell Mark V EGPWS |
| TCAS (Traffic Collision Avoidance System) | Single | ACSS RT-950 TCAS |
| CVR (Cockpit Voice Recorder) | Single | Honeywell SSCVR |
| FDR (Flight Data Recorder) | Single | Honeywell SSFDR |
| ELT (Emergency Locator Transmitter) | Single | Artex 406 |
| LSS (Lighting Sensor System) | Single | Honeywell LP-860 |
MAJOR INSPECTION STATUS
| Inspection | Last Performed | Next Due |
| 15 Month Inspection | August 2024 | October 2025 |
| 30 Month Inspection | August 2024 | September 2026 |
| 60 Month Inspection | August 2024 | March 2029 |
| 120 Month Inspection | May 2019 | March 2029 |
OTHER NOTABLE FEATURES
| SB700-11-020 – Increased Maximum Take-Off Weight (MTOW) to 99,500 lbs. |
| SB700-31-034 – Batch 3.3 Avionic Software Upgrade |
| SB700-34-053 – FANS 1/A+ and RNP 4 |
| SB700-34-054 – Introduction of SBAS with LPV Approach Capability |
| SB700-34-062 – ADS-B Out (DO-260B) |
| External Camera System |
ENTERTAINMENT
| Display / TV Monitor(s) | Single 31.5” Entertainment Monitor and Dual 24.0” Bulkhead Monitors |
| Airshow System | Collins Airshow w/ Moving Maps |
CONNECTIVITY
| Phone System | Iridium ICS-200 System |
| Internet | KA-Band |
INTERIOR
| Number of Passengers | Thirteen (13) |
| Galley Location | Forward |

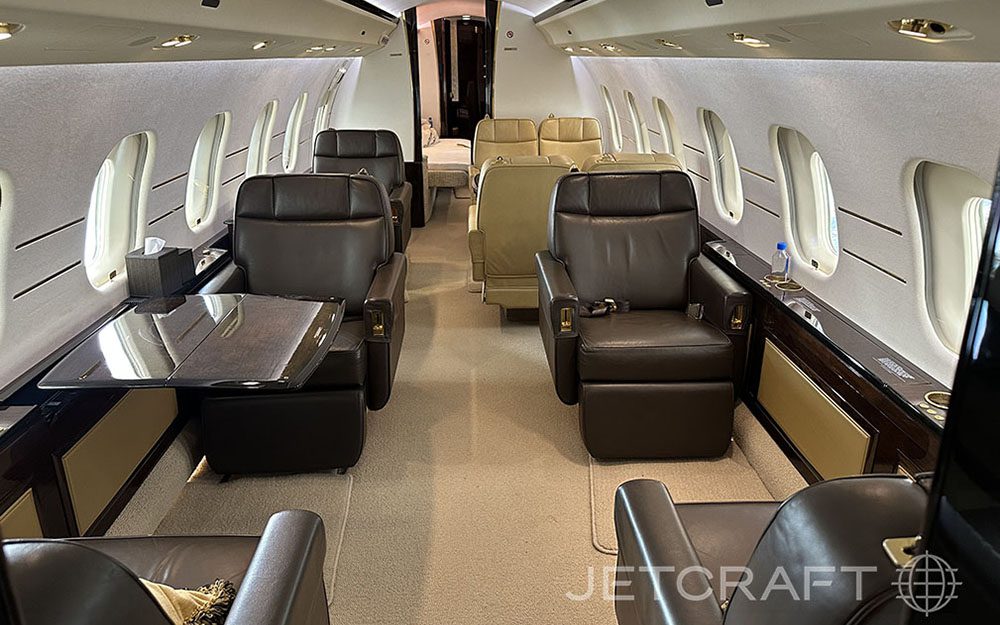

| Forward Cabin Configuration | Four (4) Place Double Club |

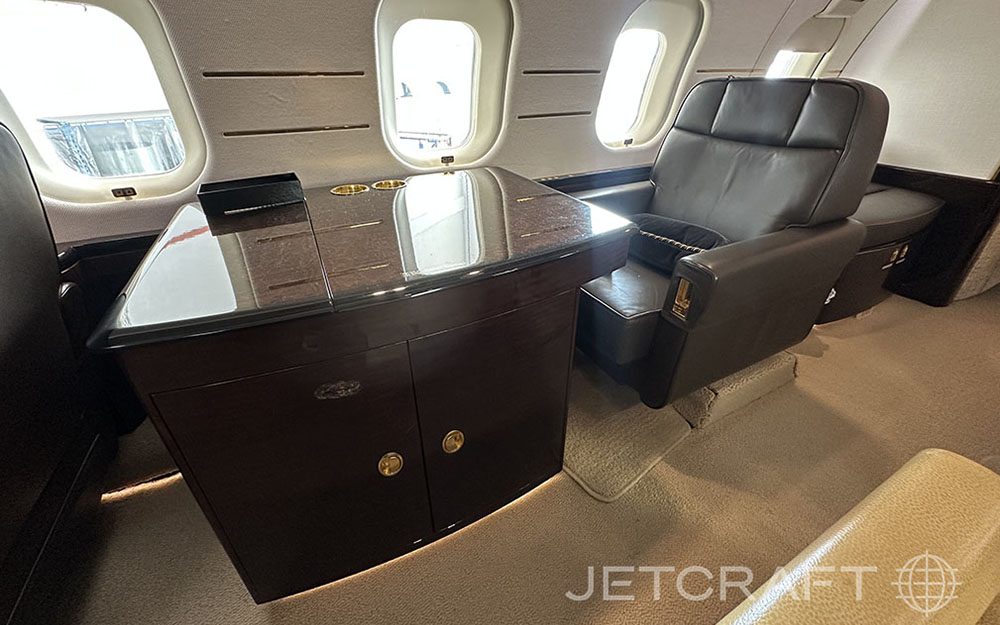

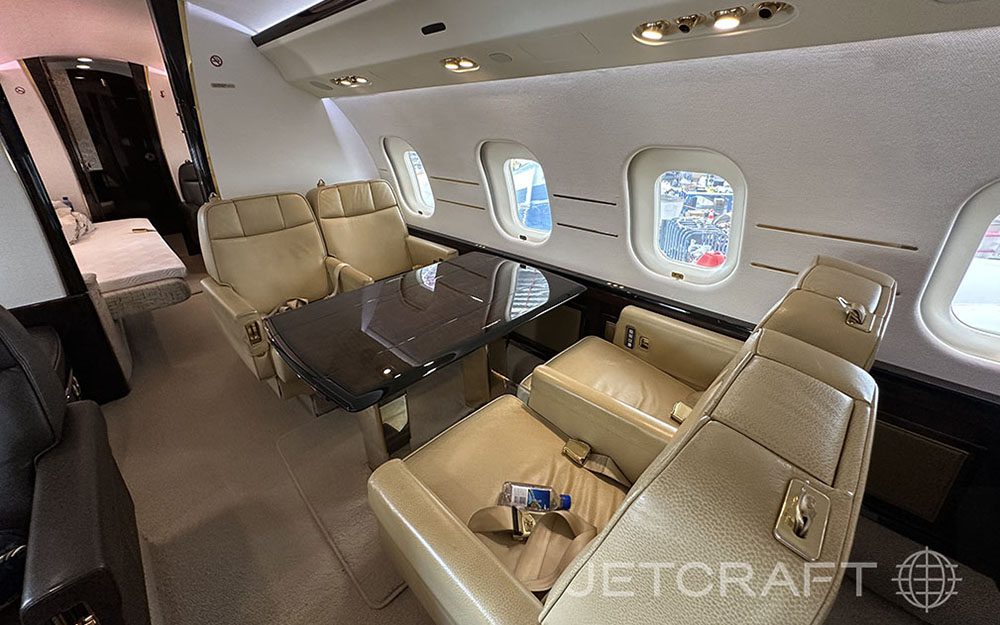

| Mid Cabin Configuration | Four (4) Place Conference Group Opposite One (1) Single Seat w/ Workstation |

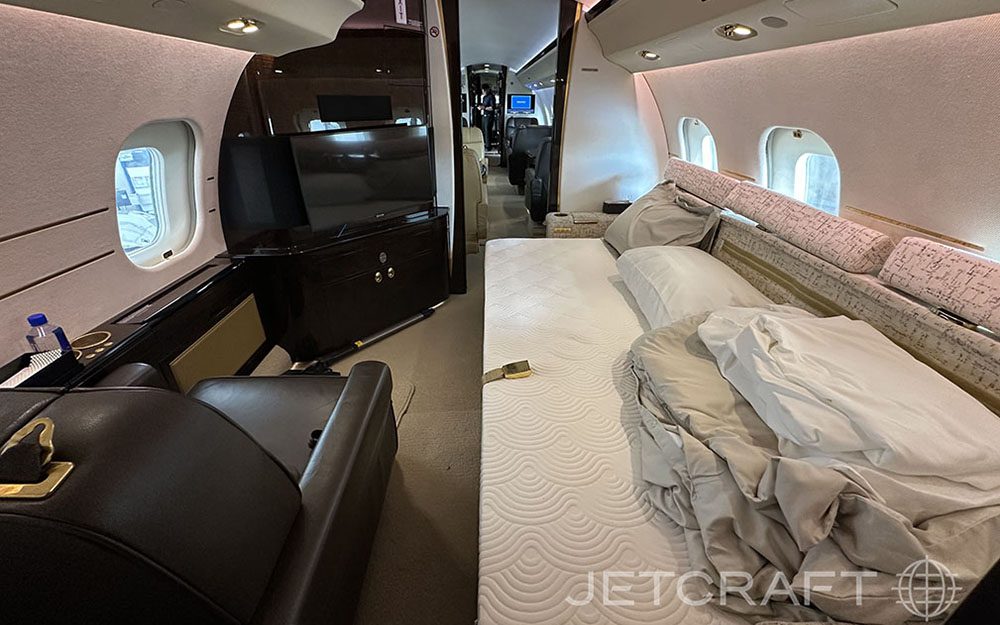

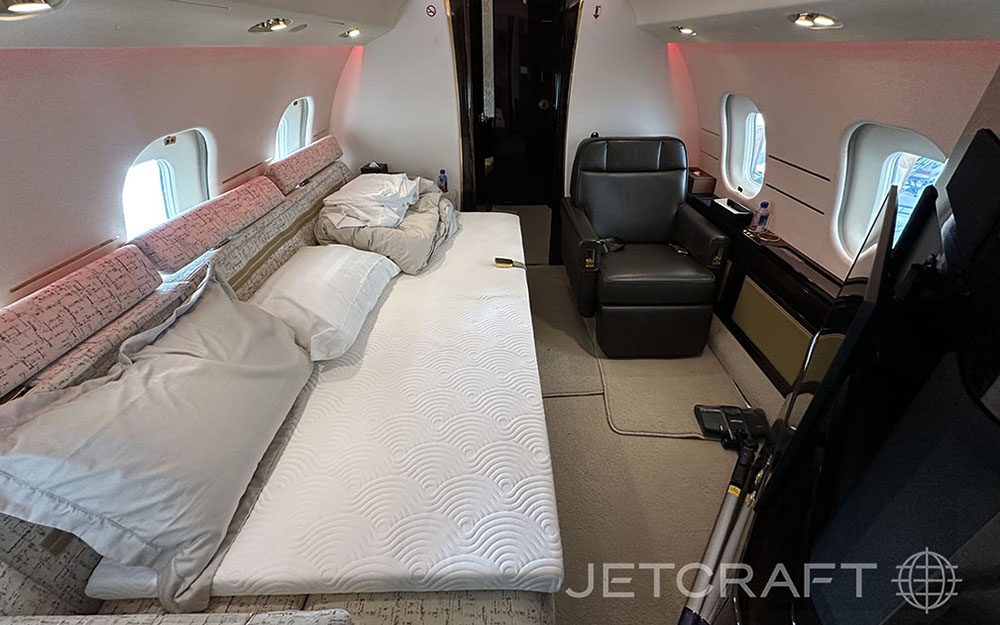

| Aft Cabin Configuration | One (1) Place Single Seat w/ Entertainment Center Opposite a Three (3) Place Divan (When Bulkhead is removed) |

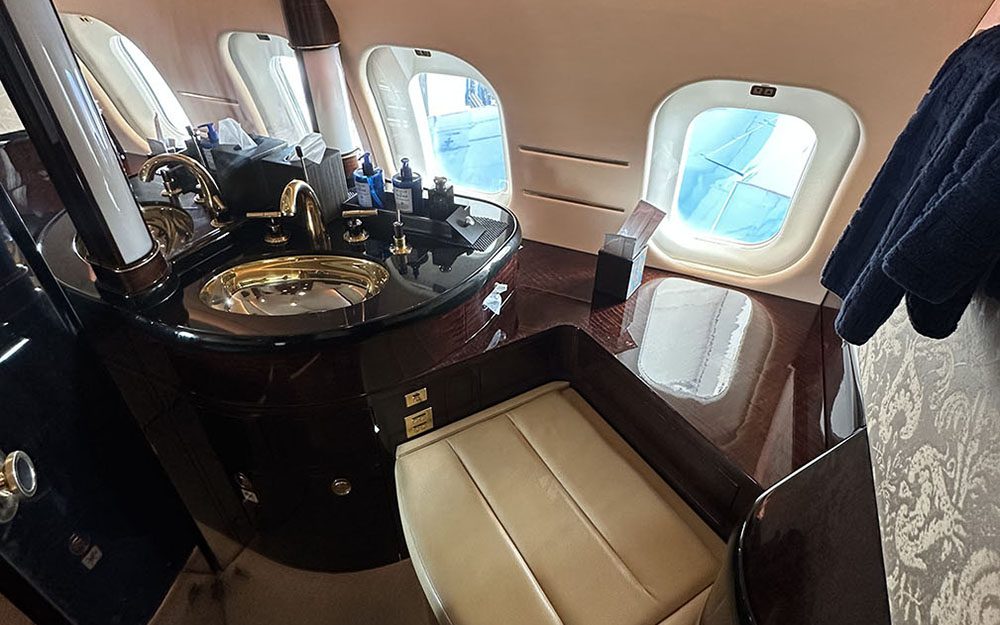

| Lavatory Location(s) | Forward Crew and Aft Executive |
| Crew Rest | Forward |
| Jump Seat | Yes |
| Last Refurbishment | August 2024 (Curtain and Lav Bulkhead) |

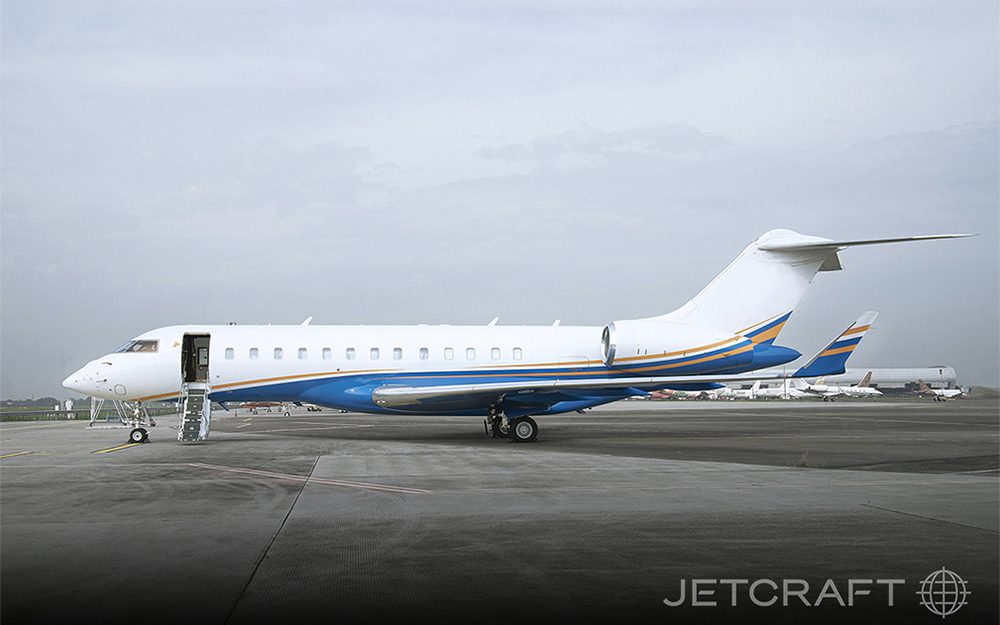

EXTERIOR
| Base Paint Color(s) | Matterhorn White and Colonial Blue Belly |
| Stripe Color(s) | Cyber Orange |
| Last Painted | May 2019 at Duncan Aviation |
