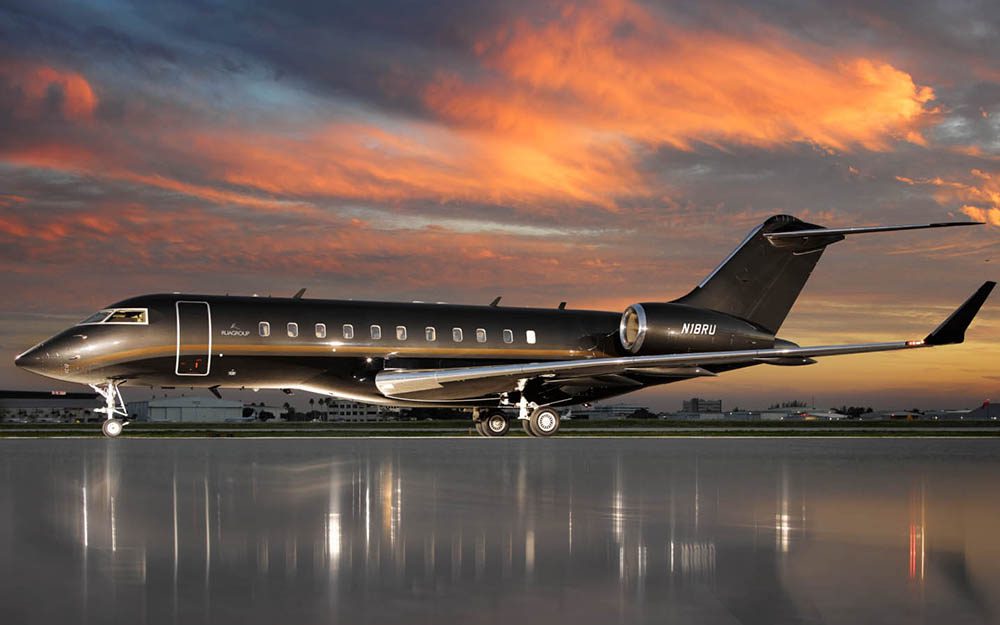

2009 BOMBARDIER GLOBAL 5000 S/N 9321

Price

Price On Request

Description

HIGHLIGHTS

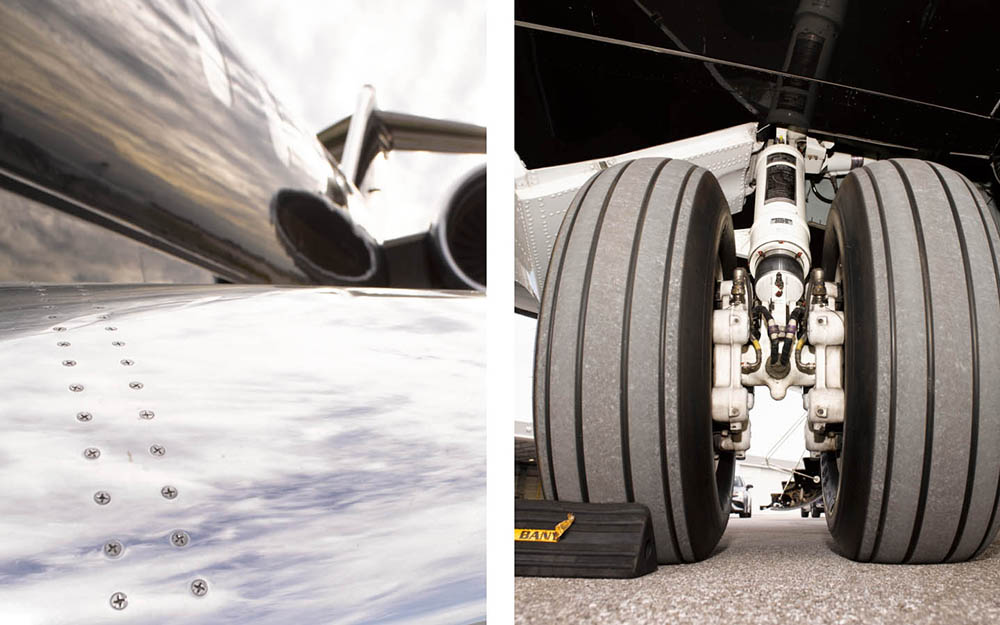

Fresh 120 Month Inspection & Landing Gear Overhaul
2020 Compliant – Batch 3.3 w/ CPDLC / FANS 1/A and ADS-B Out
Enrolled on Engine & APU Programs
Increased MTOW to 92,500lbs
KA-Band Internet
13 Passenger Configuration



AIRFRAME

Total Time Since New 3,764 Hours (as of June 14, 2019)
Total Landings Since New 956 Landings
Entry into Service Date June 23, 2009
Home Base Tucson, U.S.A.
Maintenance Tracking CAMP

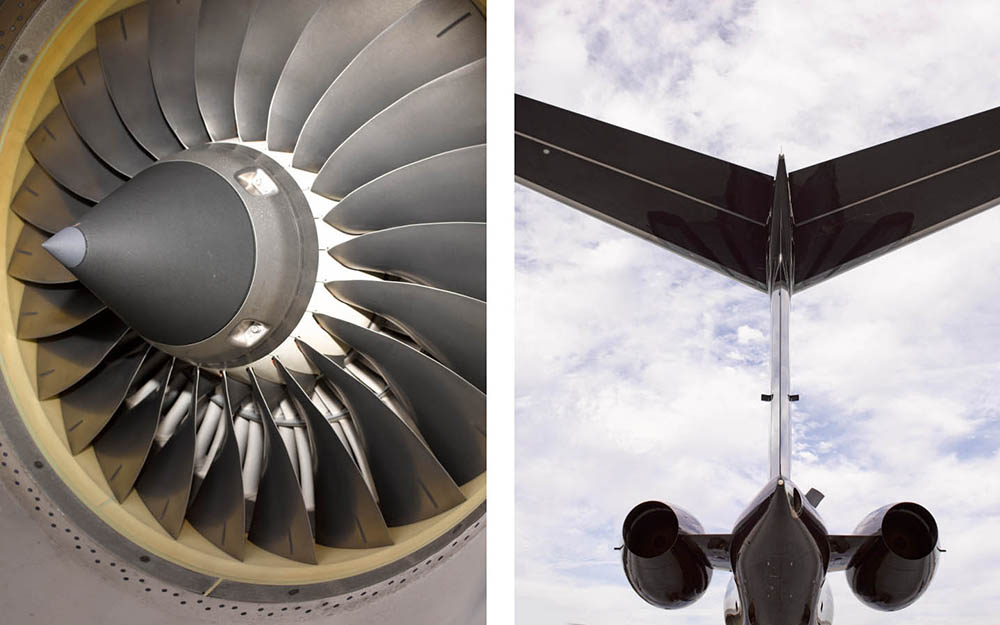

ENGINES

  Left Engine Right Engine
Description Rolls-Rolls BR700-710A2-20
Serial Number(s) 12755 12754
Total Hours Since New 3,764 Hours 3,764 Hours
Total Cycles Since New 956 Cycles 956 Cycles
Program Coverage Rolls-Royce Corporate Care



APU

Description Honeywell RE220 (GX)
Serial Number P-446
APU Total Time Since New 3,299 Hours
Program Coverage Honeywell MSP

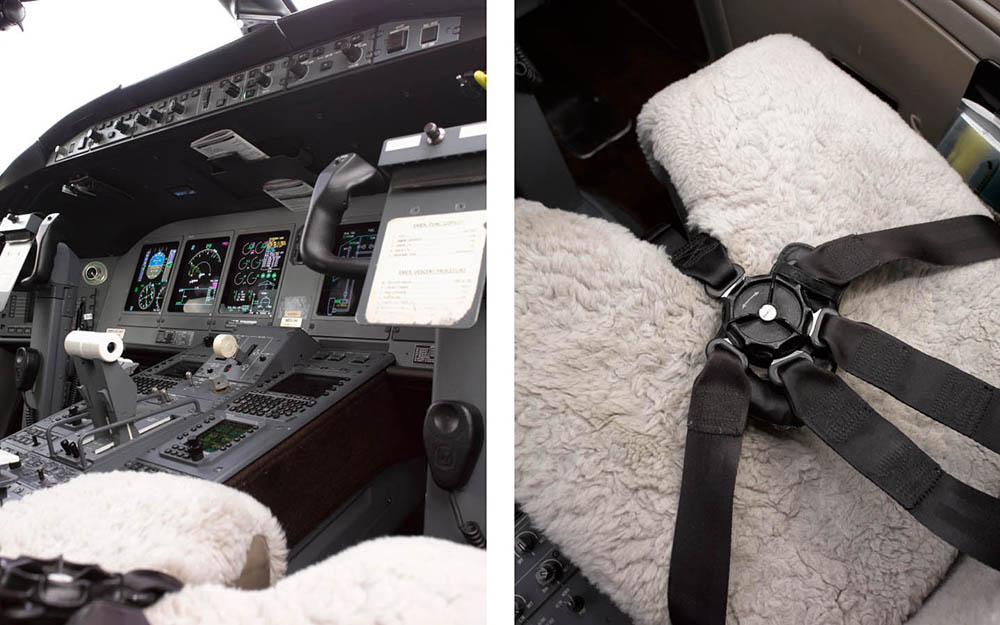

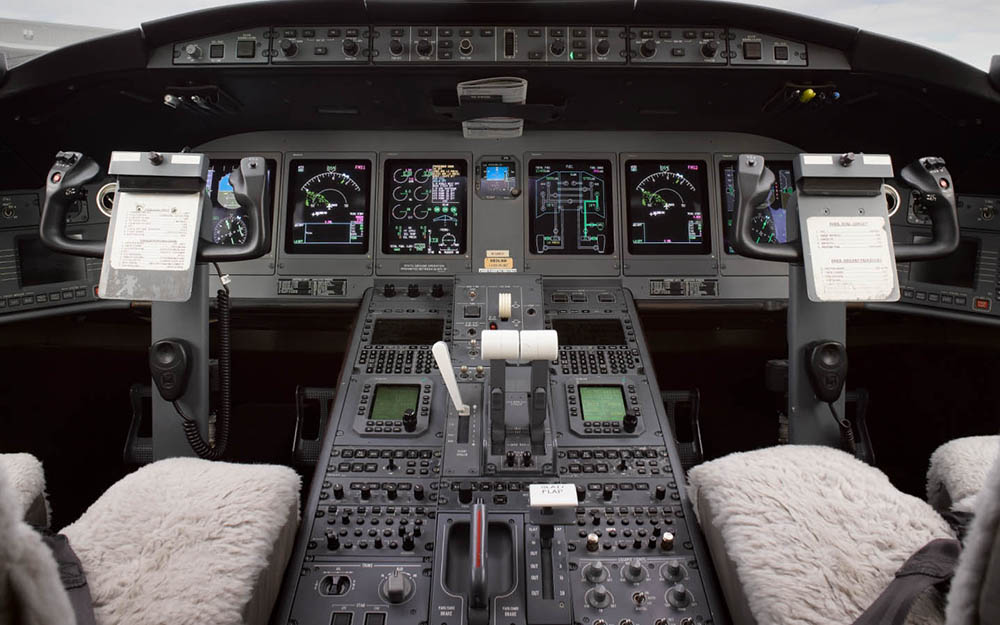

AVIONICS

The Bombardier Global 5000 is equipped with an integrated, Honeywell 2000XP avionics suite. A general summary of this aircraft’s avionics suite is as follows:

Type of Unit Quantity Unit Description
EFIS (Electronic Flight Instrument System) 6-Tube Honeywell DU-870
FMS (Flight Management System) Triple Honeywell NZ-2000
CDU (Central Display Unit) Triple Honeywell CD-820
IRS (Inertial Reference System) Triple Honeywell LASERF IV
GPS (Global Positioning System) Dual Honeywell GNSSU w/ WAAS
ADC (Air Data Computer) Triple Honeywell AZ-940
NAV (Navigation Radio) Dual Honeywell RNZ-851 Integrated NAV Radios
DME (Distance Measuring Equipment) Dual Honeywell RNZ-851 Integrated NAV Radios
HUD (Head-Up Display) Single Thales
EVS (Enhanced Vision System) Single Bombardier Enhanced Vision System
EFB (Electronic Flight Bag) Single
ADF (Automatic Direction Finder) Dual Honeywell AT-860
VHF COM (Very High Freq. Communications) Triple Honeywell RCZ-833M and RCZ-833
HF COM (High Freq. Communications) Dual Collins HF-9031A
SATCOM (Satellite Communications) Single Collins SRT-2100
RADAR ALT (Radar Altimeter) Dual Collins ALT-4000
XPNDR (Transponder) Dual Honeywell Transponder with Mode S
EGPWS (Enhanced Ground Proximity Warning System) Single Honeywell Mark V
TCAS (Traffic Collision Avoidance System) Single TCAS II w/ Change 7.1
CVR (Cockpit Voice Recorder) Single Honeywell SSCVR
FDR (Flight Data Recorder) Single Honeywell SSFDR
ELT (Emergency Locator Transmitter) Single Artex B406-4
LSS (Lighting Sensor System) Single Honeywell LP-860



MAJOR INSPECTION STATUS

Inspection Last Performed Next Due
15 Month May 2019 May 2020
30 Month May 2019 November 2021
60 Month May 2019 June 2024
120 Month May 2019 June 2029



CONNECTIVITY

High Speed Internet KA Band HST-2110
Wireless LAN WLAN
Phone System Iridium Communication ICS-100



OTHER NOTABLE FEATURES

SB 700-1A11-31-001 Activation of Crew Force Measuring System
SB 700-1A11-34-038 TCAS 7.1 Version Upgrade
SB 700-1A11-34-036 ADS-B Out (DO-260B)
SB 700-1A11-34-027R2 FANS 1/A & RNP 4 Installation
SB 700-1A11-34-028R1 LPV Approach Capability
SB 700-1A11-23-005 Data Link System
SB 700-1A11-31-017R2 Batch 3.3 Software Upgrade



ENTERTAINMENT

Display / TV Monitor(s) Two (2) Bulkhead 21.3” LCD Monitor
DVD/CD Player One (1) Dual Disk Multi-region DVD Player’ One (1) Multi-Disk CD Player
Airshow ASXi Interactive In-Flight Information System w/ Moving Map

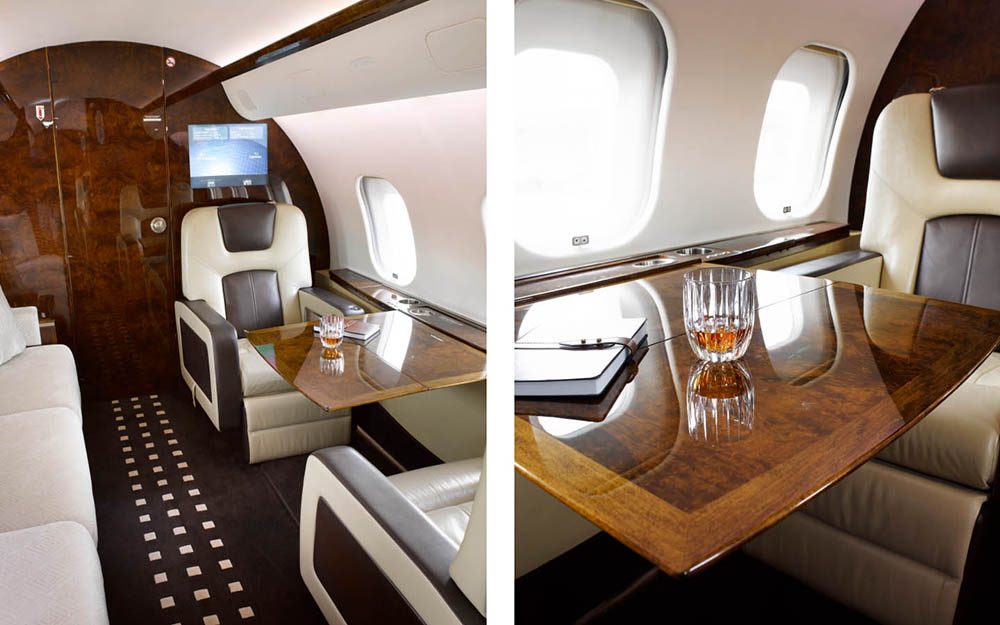

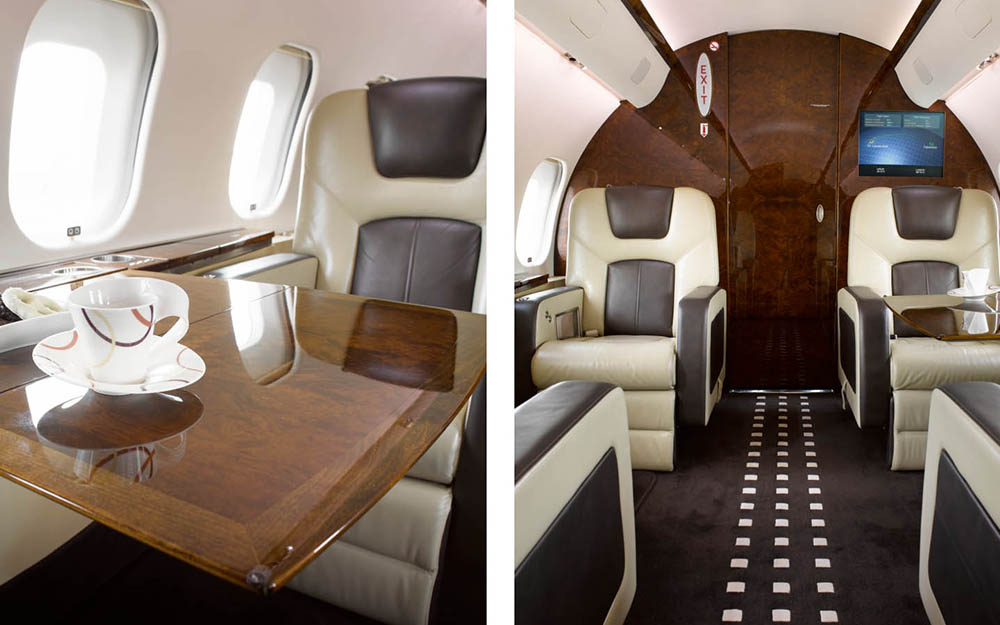

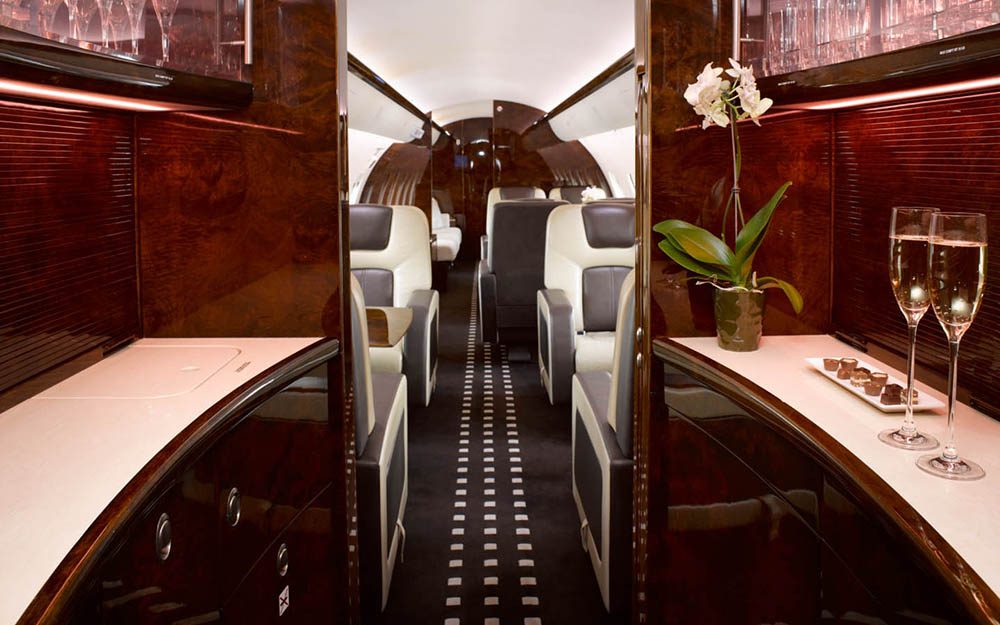

INTERIOR

Number of Passengers 13 Passenger
Galley Location Forward

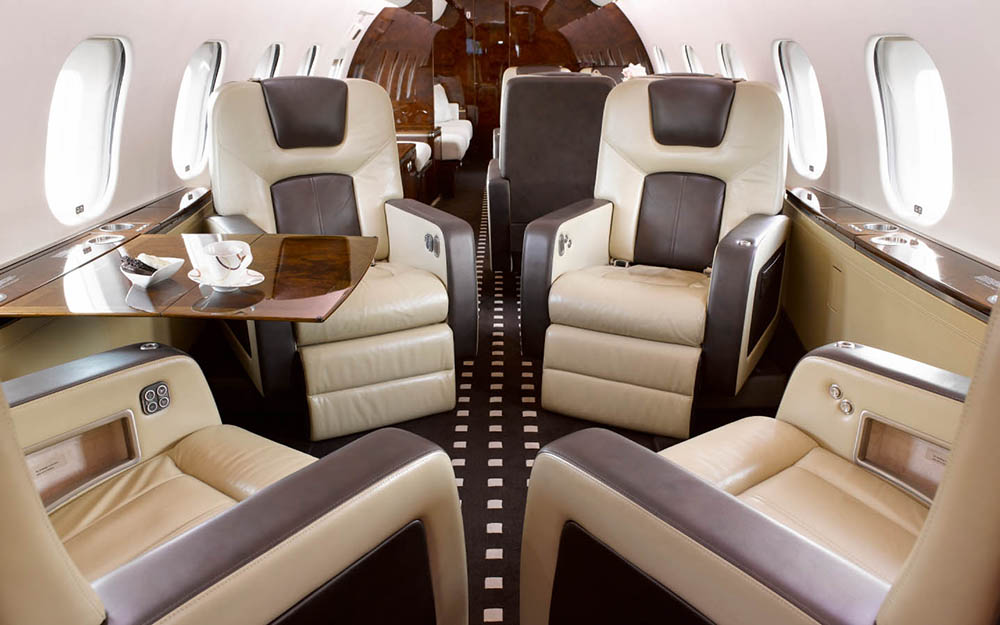

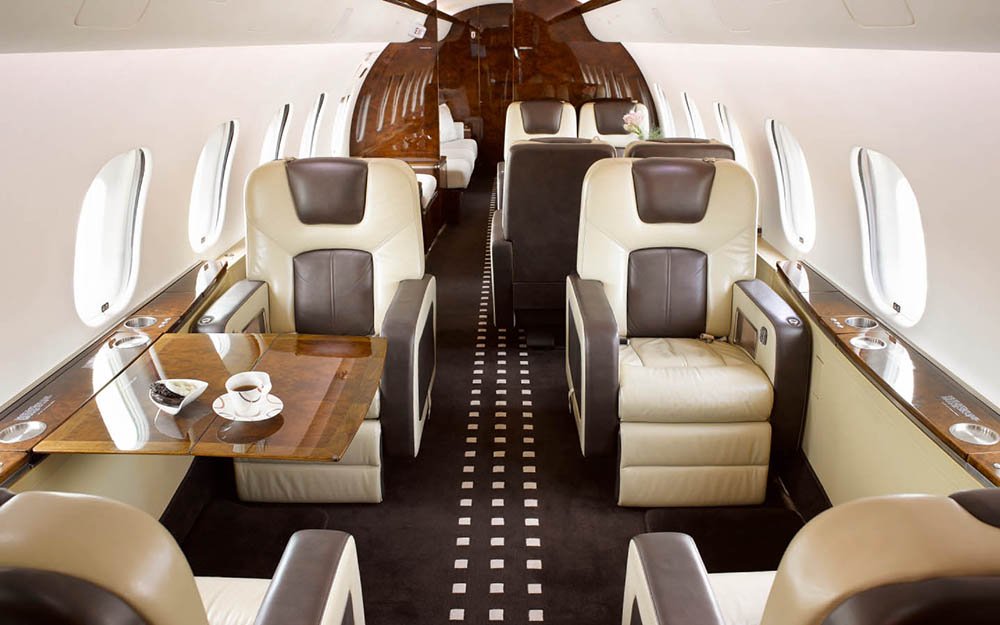

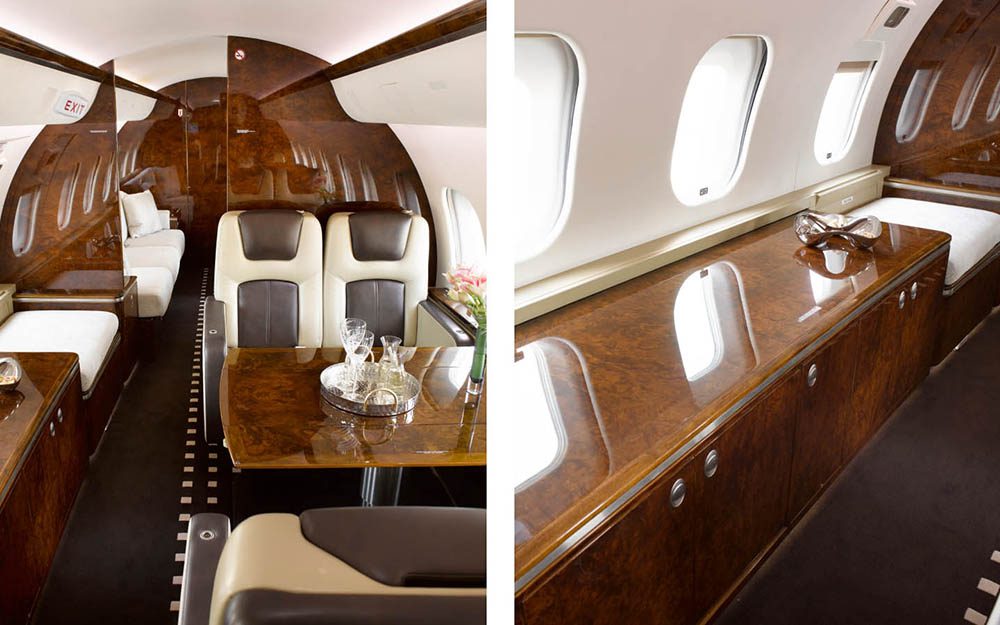

Forward Cabin Configuration Four (4) Place Double Club Seating

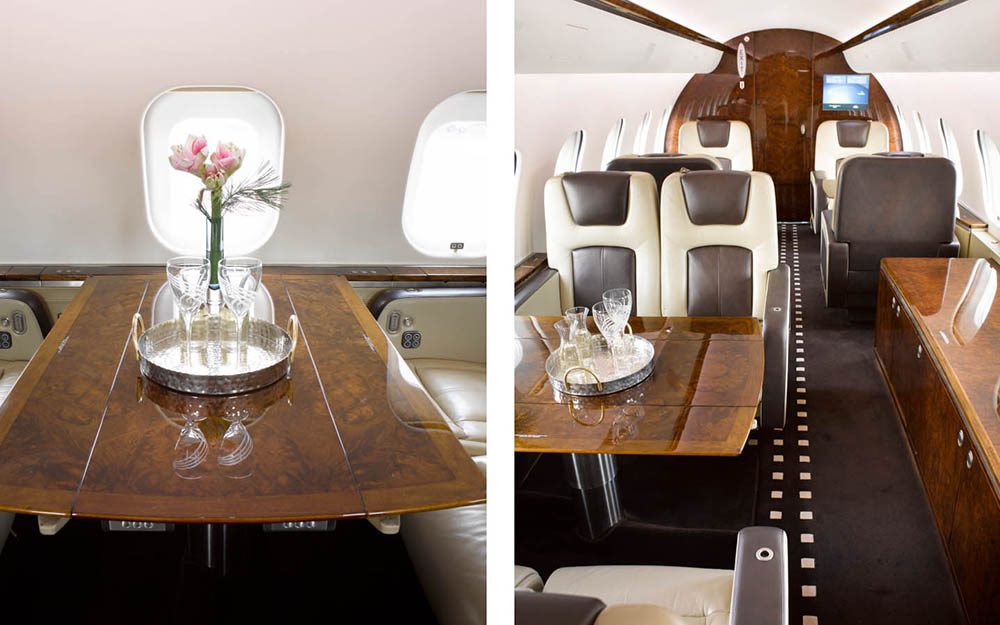

Mid Cabin Configuration Four (4) Place Conference Group Opposite a Credenza

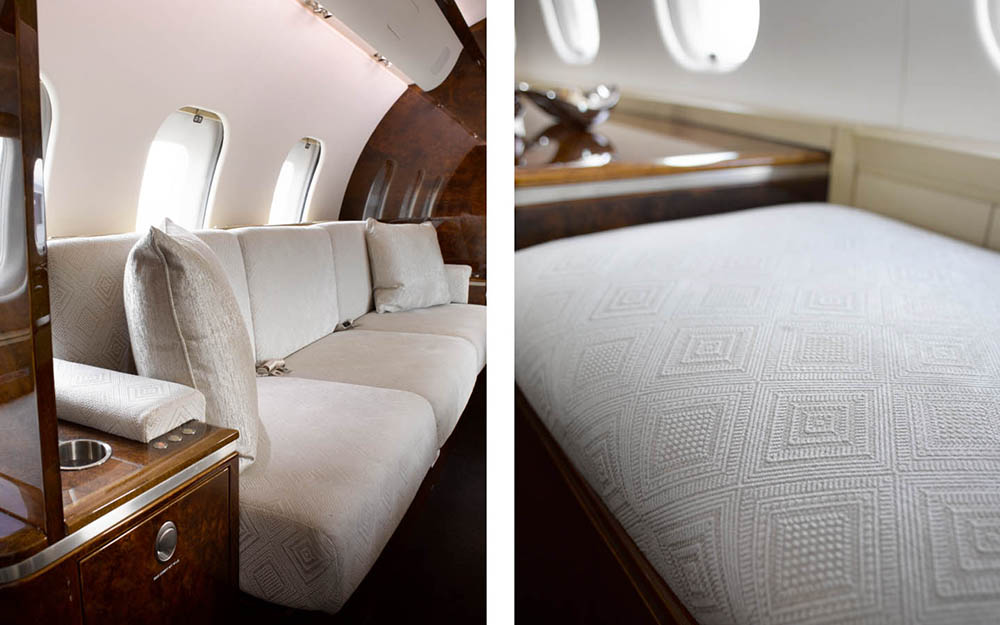

Aft Cabin Configuration Two (2) Place Club Seat Opposite Three (3) Place 16G Divan

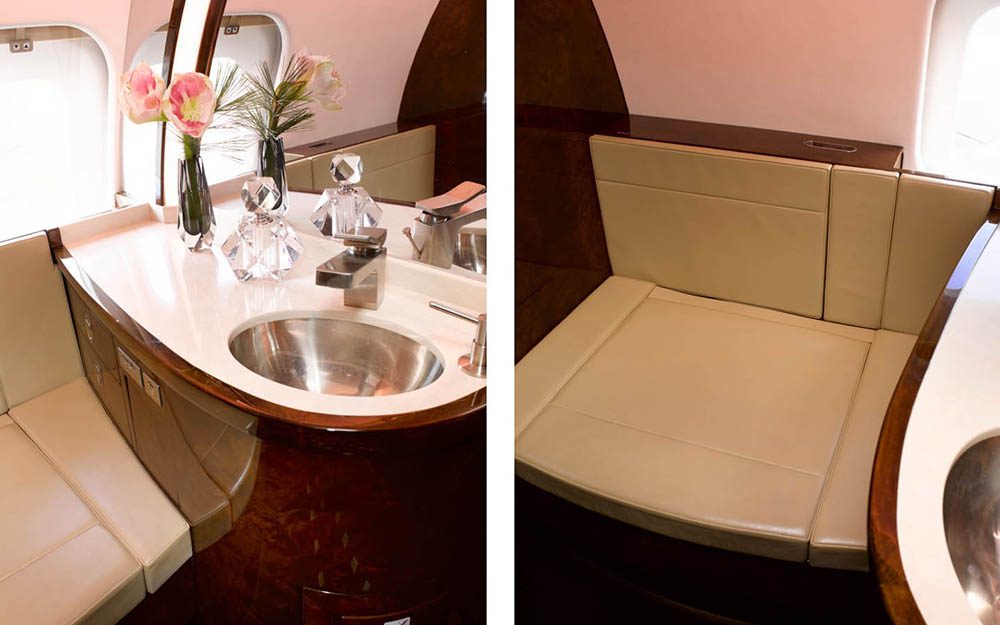

Lavatory Location(s) Fwdd Crew and Aft Fully Enclosed Lavatory
Jumpseat Yes

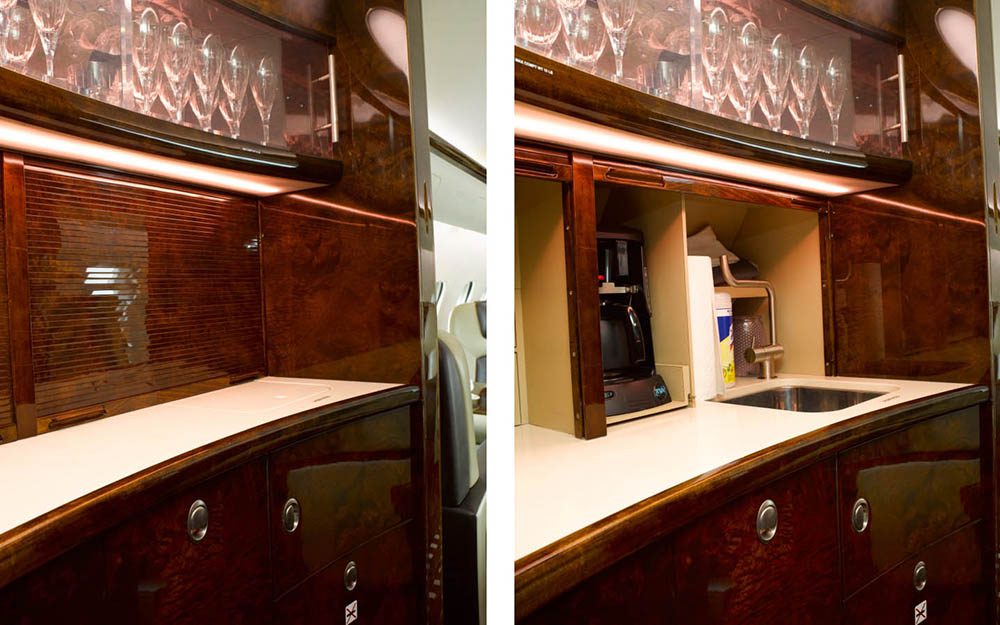

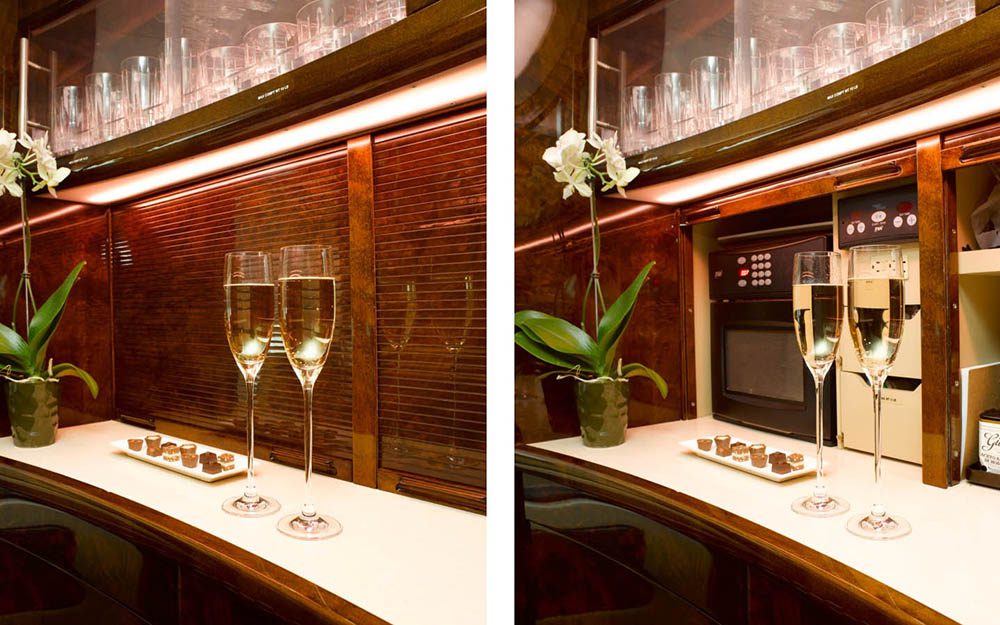

Galley Equipment TIA Coffee Maker; Aerolux Espresso Coffee Maker; High-Temp Oven; Microwave Oven
Other Notable Feature(s) Fax; Printer; Scanner
Last Refurb August 2015

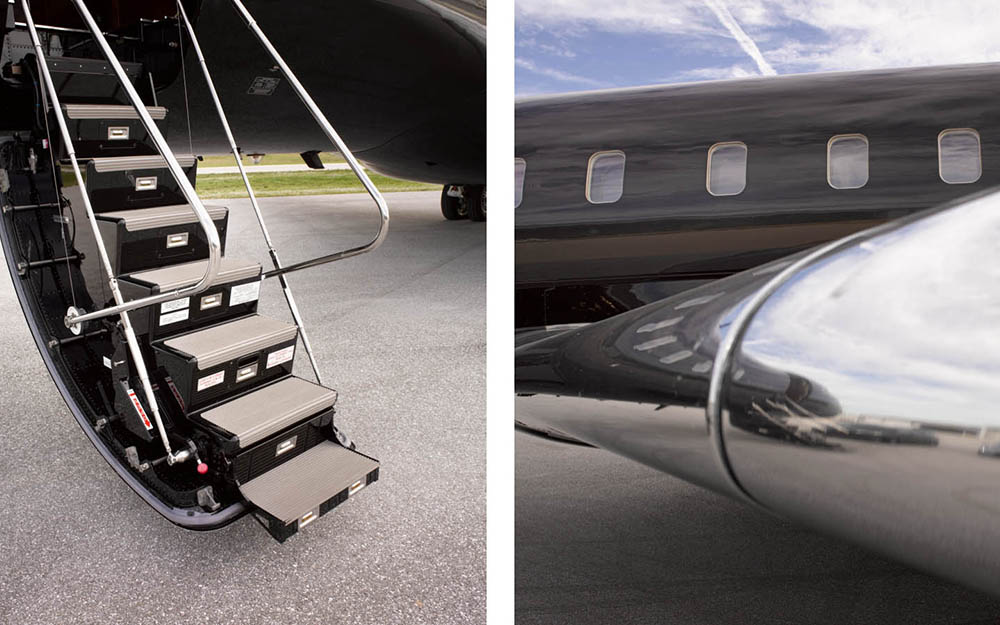

EXTERIOR

Base Paint Color(s) Matterhorn White
Stripe Color(s) Blue and Yellow
Last Painted Original
