2008 BOMBARDIER GLOBAL 5000 S/N 9245

HIGHLIGHTS

New Paint and Interior in 2023 by Bombardier, Tuscon
Starlink & Jetwave Ka Band Internet
Upgraded DU-875 & CD-830 Cockpit Displays
Rockwell Collins Venue Cabin Management System
Enrolled on RRCC, MSP and Smart Parts Plus
Excellent US Ownership Pedigree
Always Operated Part 91

AIRFRAME

Total Time: 9,120
Cycles: 4,066

ENGINES

ROLLS-ROYCE BR700-710A2-20
Program: RRCC

Engine #1
Serial Number: 12597
Time Since New: 9,120
Cycles Since New: 4,066

Engine #2
Serial Number: 12598
Time Since New: 9,120
Cycles Since New: 4,066

APU

HONEYWELL RE220
Program: MSP

Serial Number: P-369
Time Since New: 8,071
Cycles Since New: 8,310

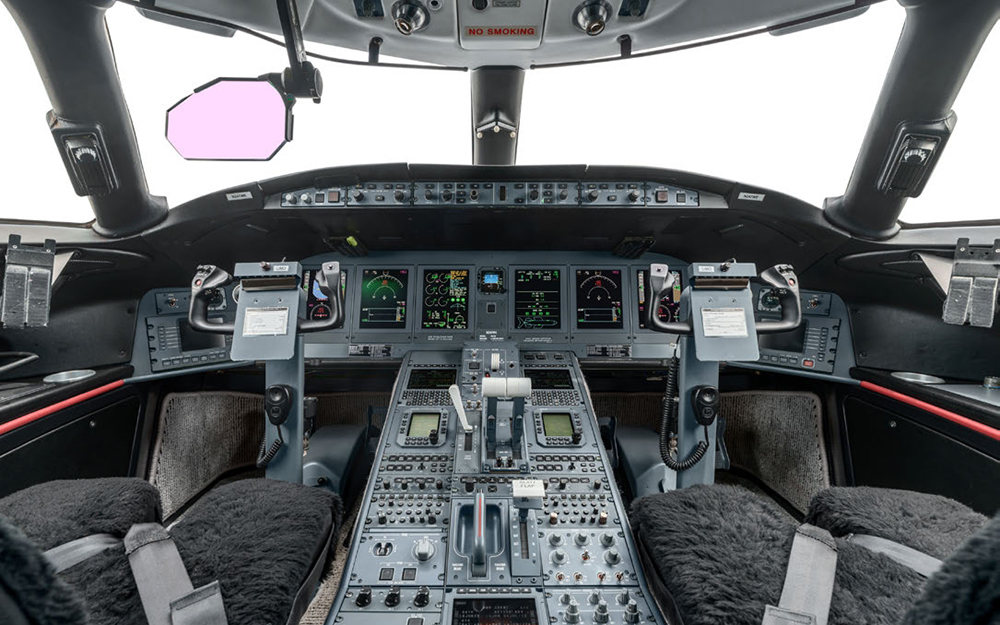

AVIONICS

HONEYWELL 2000 XP AVIONICS W/PRIMUS II /DU-875 EFIS DISPLAY UPGRADE
RADIOS: TRIPLE HONEYWELL RCZ-833 W/8.33 SPACING
CVR: SSCVR
EFIS: HONEYWELL 6-TUBE 8X7-INCH W/DU-870
FMS: TRIPLE HONEYWELL NZ-2000 W/DUAL GPS & UPGRADED CD-830 CDUS
FDR: YES
FLIGHT DIRECTOR: HONEYWELL PRIMUS 2000XP IFCS
HF RADIO: DUAL COLLINS HF-9000 W/COLTECH SELCAL
IRS: TRIPLE HONEYWELL LASEREF IV
RADAR ALTIMETER: DUAL COLLINS ALT-4000
TAWS: HONEYWELL EGPWS W/RAAS
TCAS: COLLINS TCAS W/7.1
WEATHER RADAR: HONEYWELL PRIMUS 880
EVS: BOMBARDIER ENHANCED VISION SYSTEM
HUD: THALES/SEXTANT HEADS-UP DISPLAY
RADIO MANAGEMENT: DUAL HONEYWELL PRIMUS II RM-855
ELT: ARTEX W/NAV INTERFACE
AIR DATA COMPUTERS: TRIPLE HONEYWELL AZ-840 MICRO
FADEC: YES
BATCH: 3.0
RVSM: YES
CPDLC / FANS 1/A+: YES
SBAS W/LPV: YES
SYNTHETIC VISION: YES
MTOW: INCREASED TO 92,500 LBS (SB700-1A11-11-008)

MAINTENANCE

1,000 Hour Inspection: Due at 9,860 hours
60-Month Inspection: Due Dec. 2028
120-Month Inspection: Due June 2028
240-Month Inspection: Due March 2028
Landing Gear Overhaul: Due March 2028
Always Maintained Part 91
Maintenance Tracking: Computerized Aircraft Maintenance Program (CAMP)
Location: White Plains, New York (KHPN)
No Damage History
Emergency Vision Assurance System (EVAS): Emergency Vision Devices for Pilot and Copilot

CABIN ENTERTAINMENT, CONNECTIVITY & COMMUNICATION

Starlink
Jet ConneX (Ka-band) High Speed Data with Iridium Phone System
Satcom Direct SD Router and HUB with LAN & Wi-Fi Access
Rockwell Collins Venue HD Cabin Management System
Venue Media Bay Storage
Alto Aviation upgraded audio system with Bluetooth Interface
Two (2) 24” High Definition LCD Monitors at Fwd and Aft Bulkheads
Quiet Airplane Sound Dampening System
Goodrich LED Cabin Lighting System
USB Charging Ports throughout cabin and cockpit

INTERIOR

13 passenger configuration** completely refurbished by Bombardier, Tucson – December 2023
Logos to be removed prior to Sale

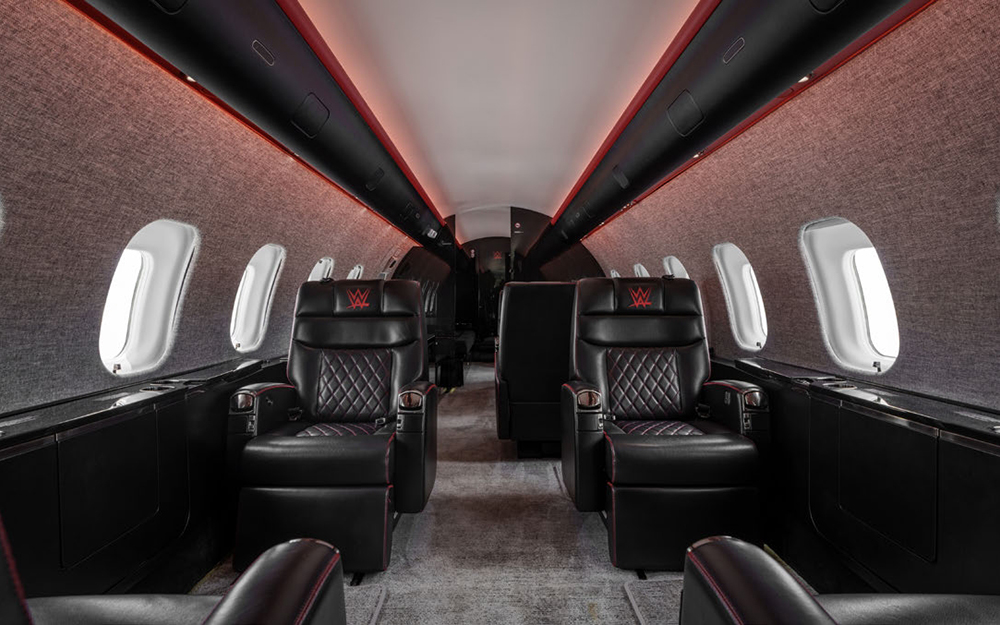

FWD Cabin : Four (4) Single Club Seats w/ Stowable Tables; 24” LCD Monitor on the Fwd R-H Bulkhead

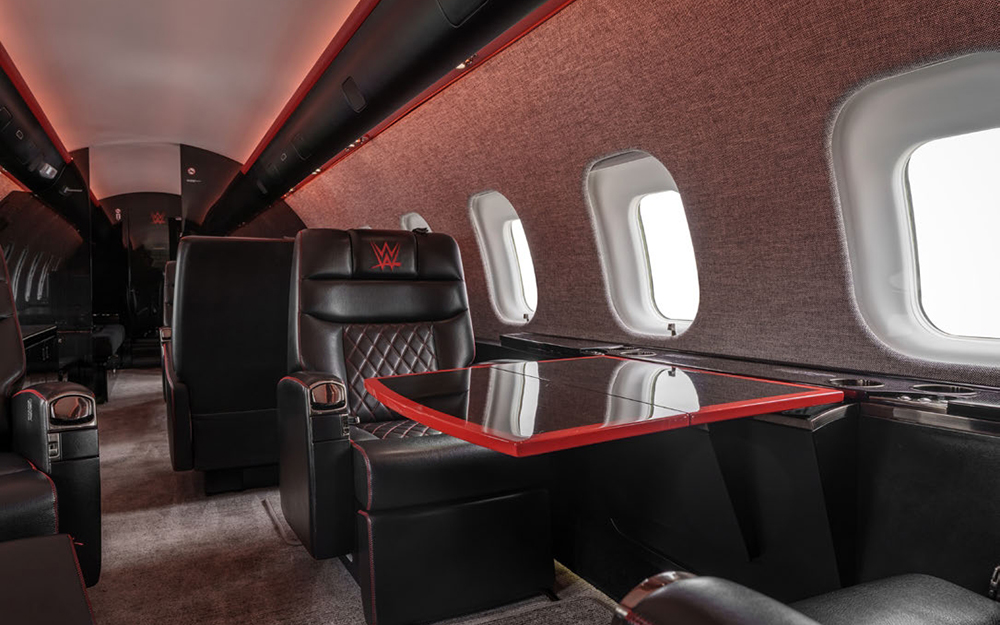

MID Cabin: Four (4) place Conference Group opposite a Credenza

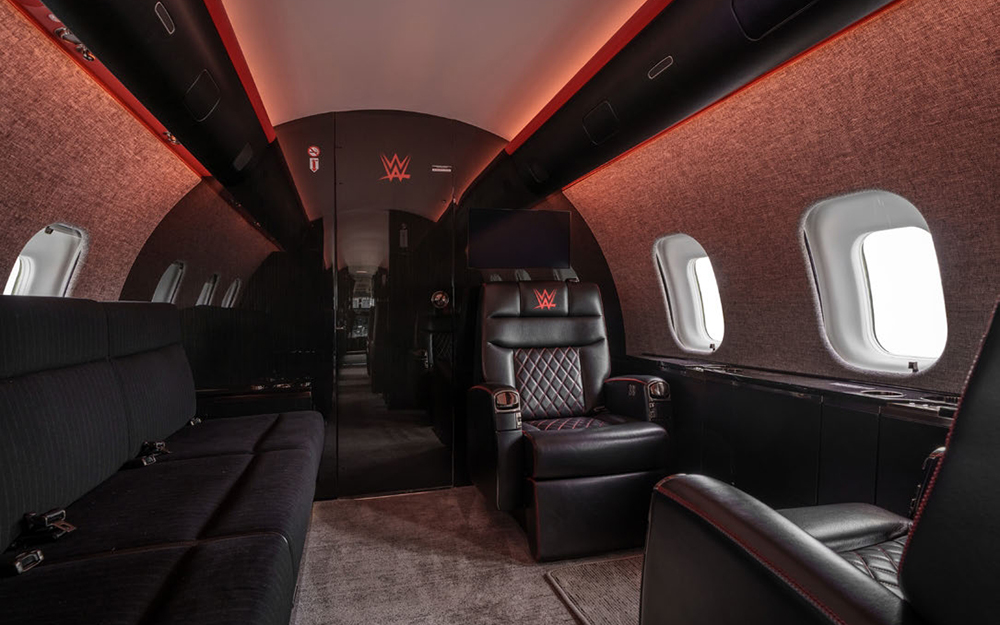

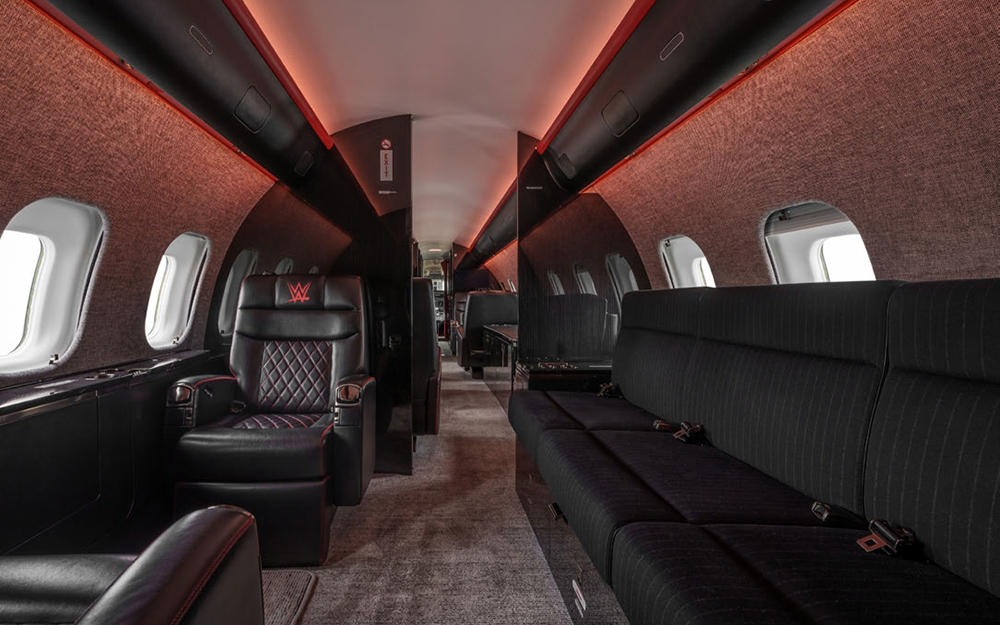

AFT Cabin : **Three (3) place Divan on the R-H side is certified for 2 pax when the mid-cabin bulkhead is installed or 3 pax when removed; Two (2) Single Club Seats w/ Stowable Table on the L-H side; 24” LCD Monitor on the Aft L-H bulkhead; A manual pocketing door separates the Aft cabin

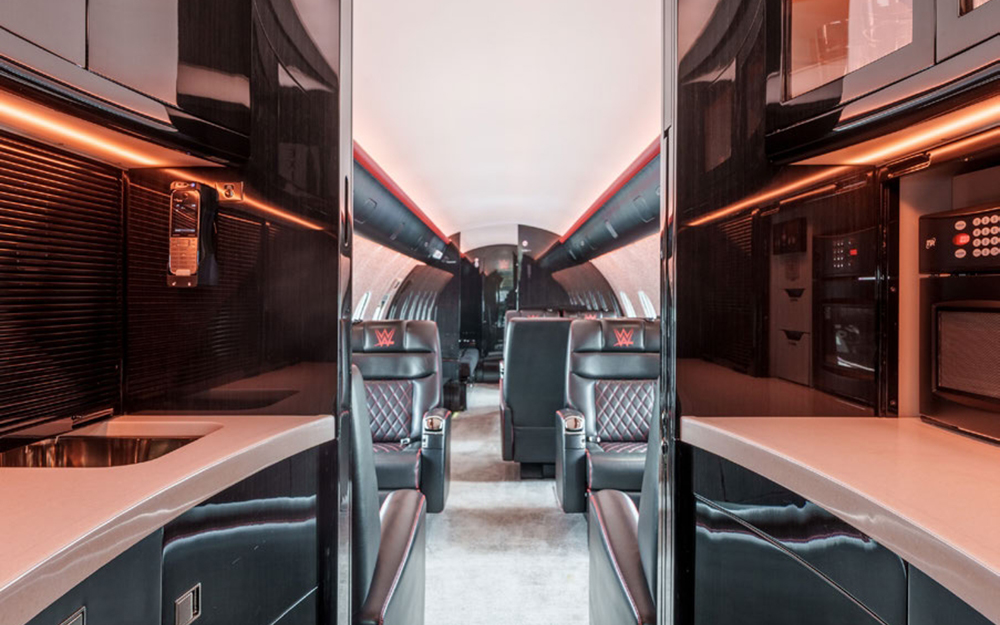

GALLEY : Forward Galley w/ Microwave, TIA high-temp oven, chiller-cooled cold food storage, coffee maker

INTERIOR REFURBISHMENTS

Stripped and recovered cockpit glare shield
Recovered cockpit headliner, lower sidewall, sidewalls, and dado panels

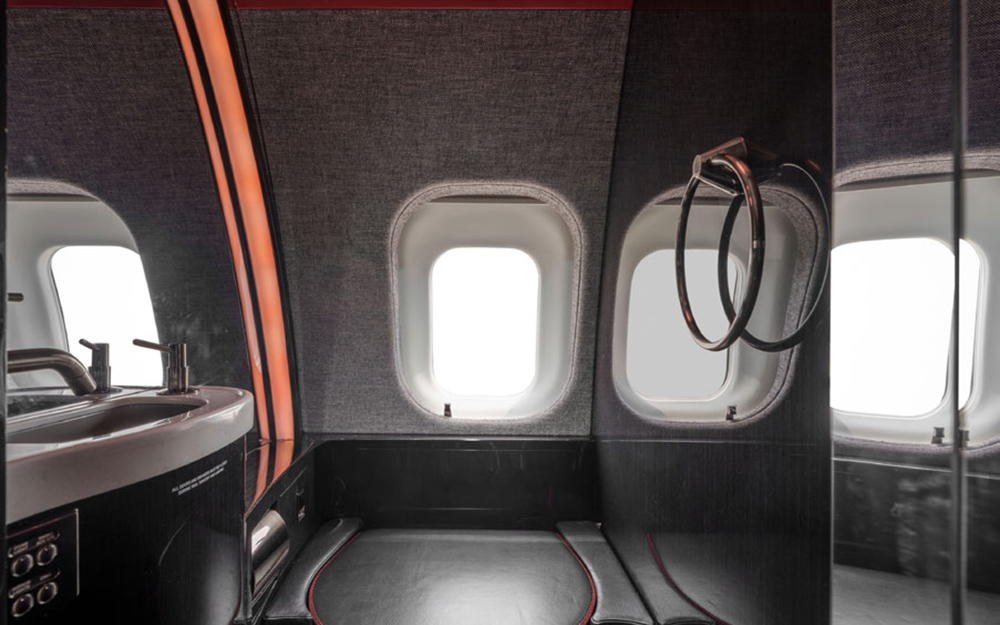

Recovered main cabin sidewalls including forward and aft lavatory upper sidewalls
Recovered main cabin left-hand and right-hand Passenger Service Unit panels
Recovered main cabin, lavatory, and entry headliners
Replaced aft baggage carpet and recovered storage compartment gross point
Installed vinyl flooring in galley entry and forward lavatory areas
Reupholstered forward station 280 bulkhead panels and closeouts
Replaced baggage door flap and completed faucet refurbishment
Replaced main cabin carpet with hand-tufted carpet including throw rugs and spare set
Refinished cabinetry throughout to a dark, highly polished gloss finish
Re-plated all exposed metal in customer-selected plating
Replaced all single cabin seats with new electric-assist style including berthing at all single seats and conference table location
Reupholstered seats, divan, and lavatory cushions with new foam
Refinished solid surface countertops in galley, forward and aft lavatories
Installed interior noise reduction kit
Replaced main cabin window shade material
Replaced flight crew seats with new Goodrich seats
Installed Class 1 iPad with mounting system in cockpit

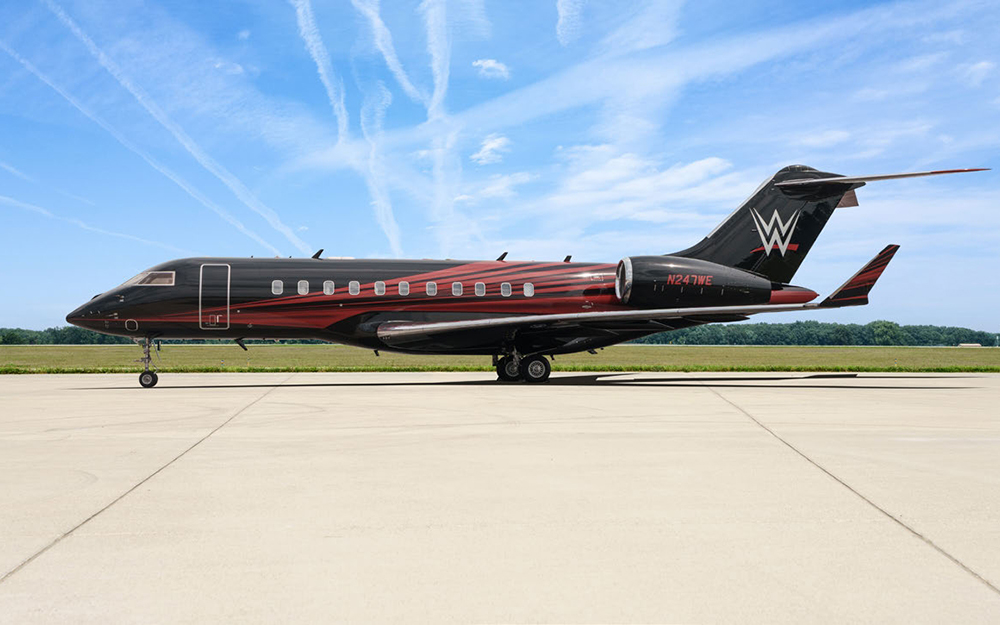

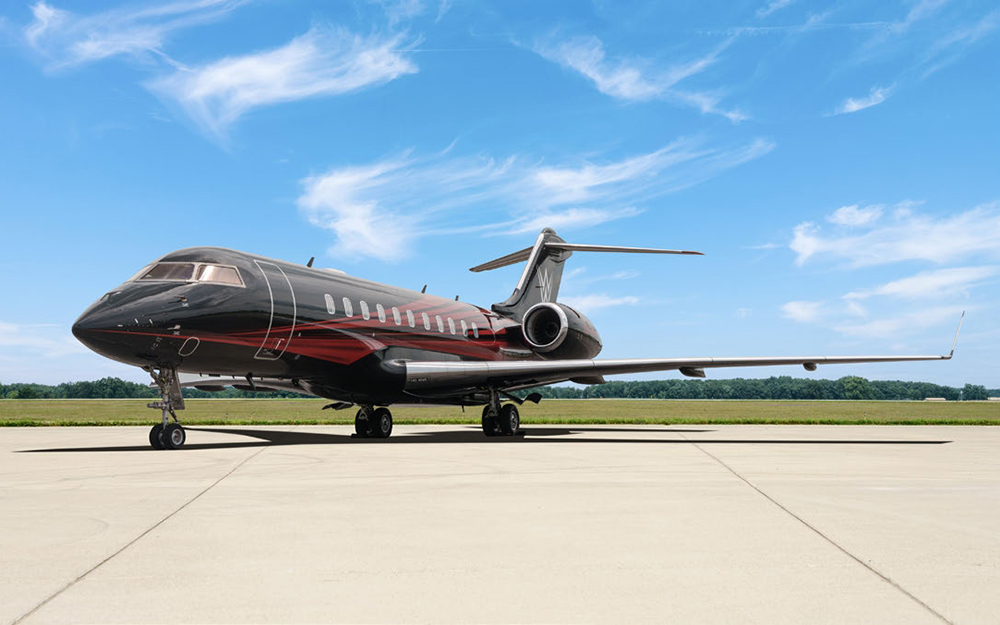

EXTERIOR

NEW BY BOMBARDIER, TUCSON IN DECEMBER 2023
Overall Black with Red Accent Stripes – Logos to be removed by Seller prior to sale
