2004 CESSNA CITATION SOVEREIGN S/N 680-0013

HIGHLIGHTS

Enrolled ESP Engine & MSP APU Program
Primus Epic W/ Dual FMS
WAAS-GPS | ADS-B | TCAS II
L3 Avance Wi-Fi & Cabin Entertainment

AIRFRAME

Hours Since New: 13.205
Landings Since New: 8,862

ENGINES

Pratt & Whitney 306C (2)
Enrolled on ESP Silver Lite $426.80 Per Engine / Hour

Engine #1 (LH)
Serial Numbers: PCE-CG0264
Hours Since New: 12,876
Cycles Since New: 8,552
Overhaul Due TBO: 6,000

Engine #2 (RH)
Serial Numbers: PCE-CG0332
Hours Since New: 11,877
Cycles Since New: 7,866
Overhaul Due TBO: 6,000

APU

Honeywell RE-100CS
Enrolled on MSP $160.62hr

Serial Number: P-112
Hours Since New: 6,952
Cycles Since New: 13,150

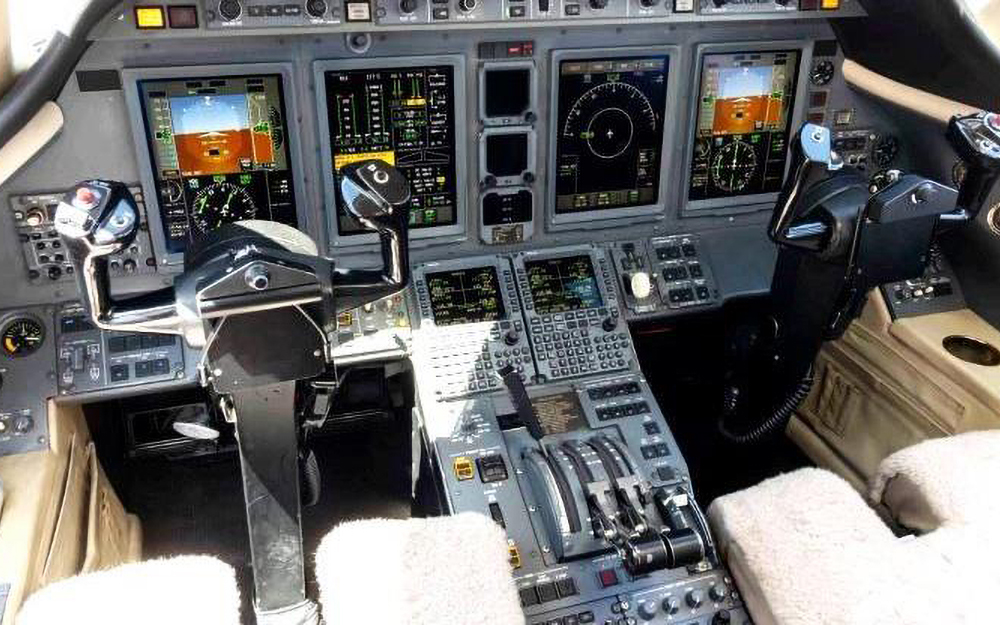

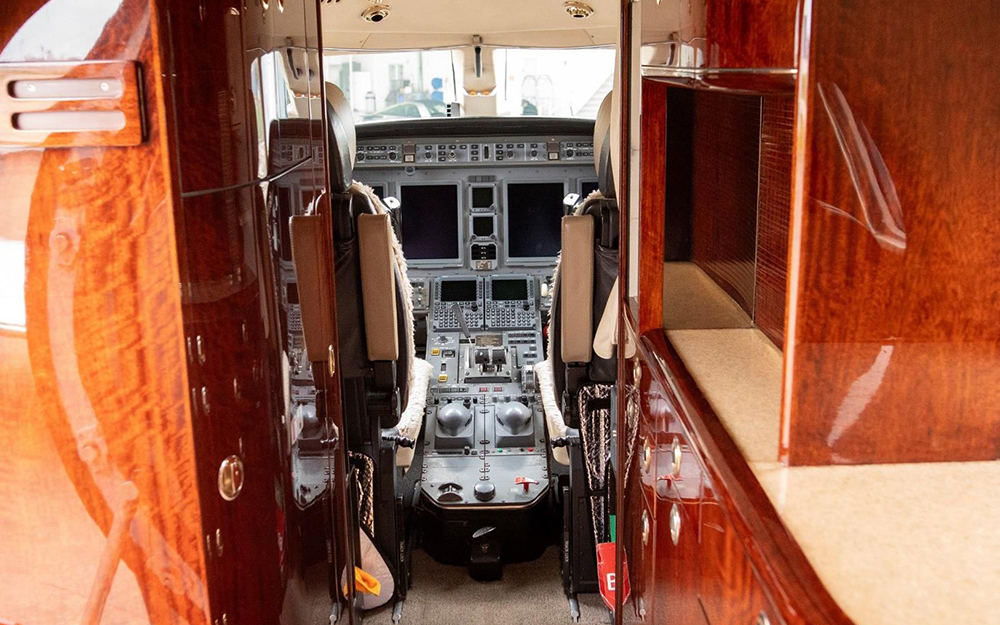

AVIONICS

Honeywell Primus Epic Avionics Package
ADF: Dual Honeywell DF-855
AHRS: Dual Collins AHC-3000
Autopilot: Honeywell Primus Epic IFCS
Communication Radios: Dual Honeywell TR-865 w/ 8.33 Spacing
CVR: L3 FA2100
DME: Dual Honeywell DM-855
EFIS: Honeywell Primus Epic 4-tube DU-1080’s
Flight Director: Dual Honeywell Epic IFCS
FMS: Dual Honeywell Integrated w/ GPS (WAAS)
Hi Frequency: Dual Honeywell HF-1050 w/ SELCAL
Navigation Radios: Dual Honeywell NV-875 w/ FM Immunity
Radar Altimeter: Honeywell AA-300
TAWS: Honeywell Mark V EGPWS w/ Windshear
TCAS: Honeywell CAS-67A TCAS-II w/change 7.0
Transponder: Dual Honeywell XS-858B mode S (ADS-B out)
Weather Radar: Honeywell Primus 880 Color Radar

CAPABILITIES

RVSM
ADS-B Compliant
WAAS-GPS
TAWS & TCAS-II
HF Radios/ SELCAL
Cockpit Voice Recorder

ADDITIONAL EQUIPMENT

Artex 406ELT
L3 AVANCE WiFi
Dual AZ-200 Air data Computers
Dual AV-850 Audio Panels
Dual MFD Control Modules
#3 Digital Comm.
Dual ECU-3000
L3 GH-3000 Standby Attitude
Data Transfer Unit
Dual Crew Vision-Safe EVAS

SPECIFICATIONS

RANGE (NM): 3,010
PASSENGERS: 8
MAX CRUISE SPEED: 460 KTAS

INSPECTION OVERVIEW

On CAMP Maintenance Tracking

INTERIOR

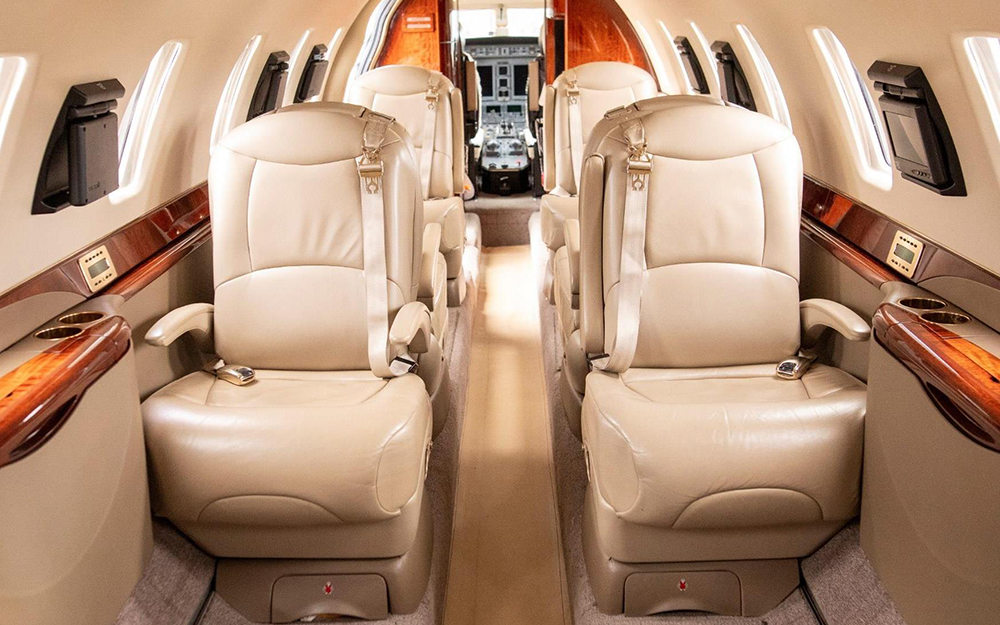

This aircraft features an Eight (8) Passenger Executive Configuration.

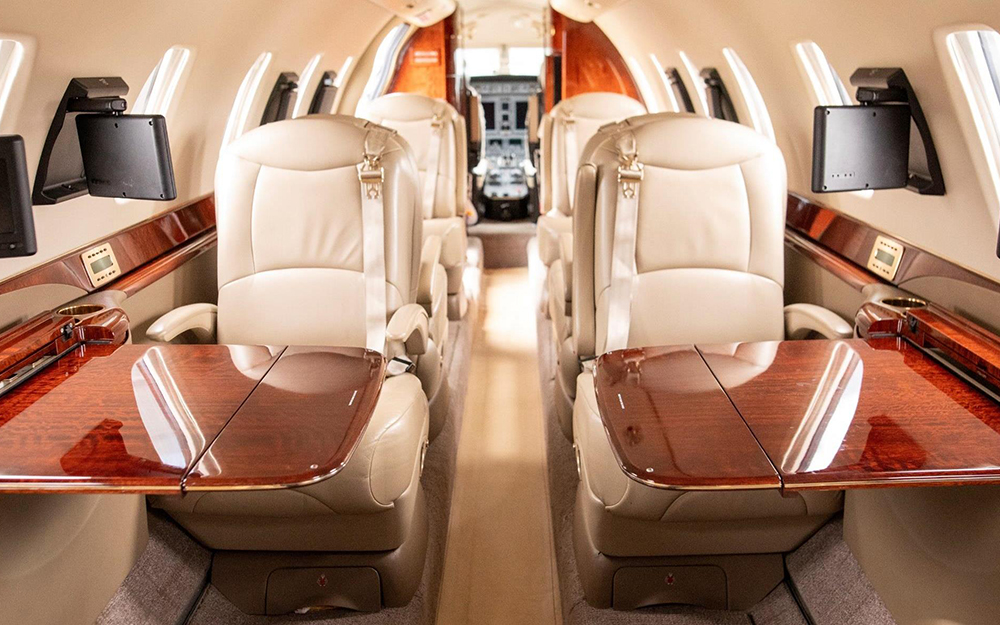

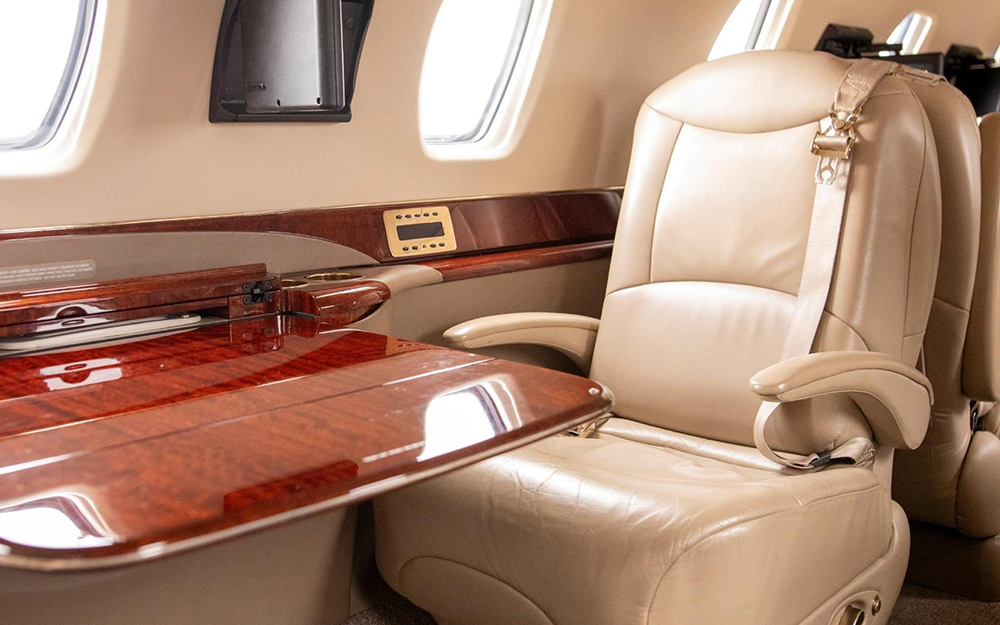

Seating includes a dual club layout with Forward 4-Place Club Seating and Aft 4-Place Club Seating, LS & RS foldable executive writing tables at each club and Aft private Lavatory and vanity sink that is externally serviceable.

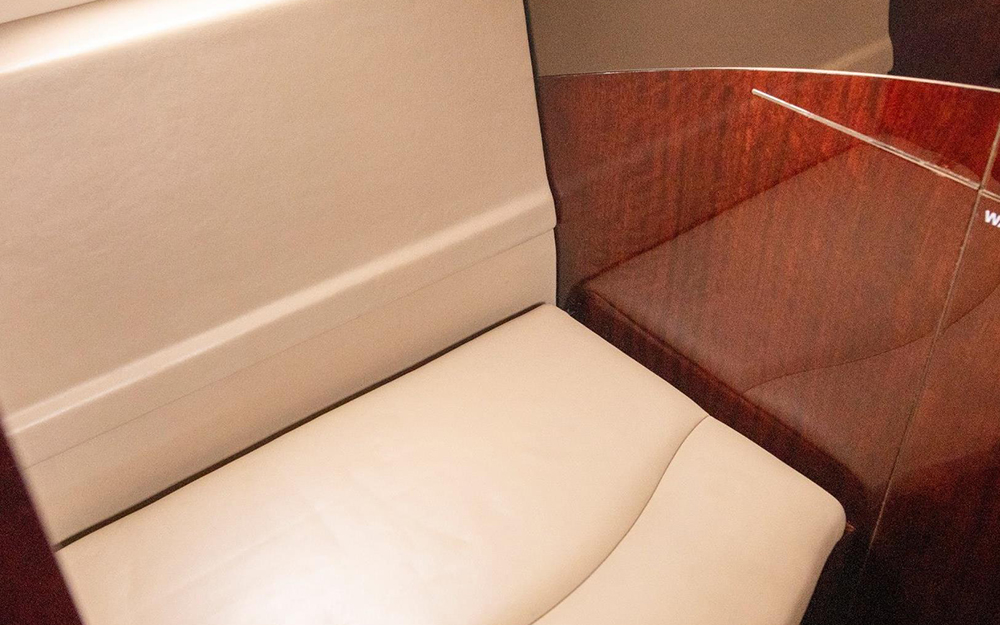

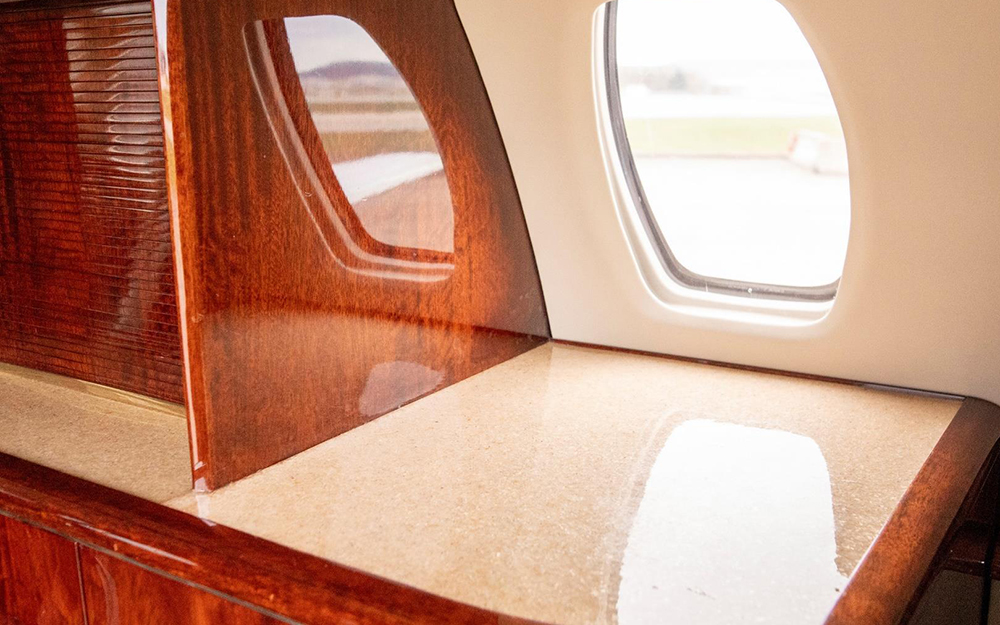

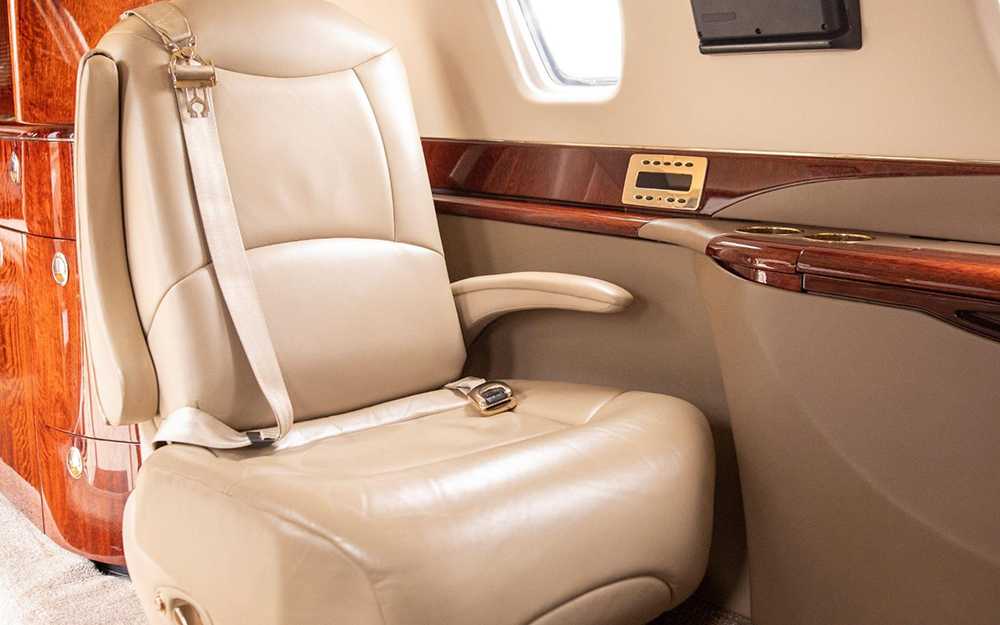

All passenger seating is in Almond leather, with coordinating matching sidewalls and arm rails. Luster loop carpet with pattern and ultra headliner. Forward LS coat closet and storage, RS extended Galley with warm liquid dispense, ice draw and multiple cabinets. All woodwork and cabinetry is in Gloss Mozambique veneer and polished Champagne Gold hardware and
accessories.
Entertainment includes High-Speed L3 AVANCE Wi-Fi, cabin control panels at each seating, Airshow 400, Dual Disk DVD Player with eight (8) side wall mounted monitors and 110 VAC outlets through out the cabin.

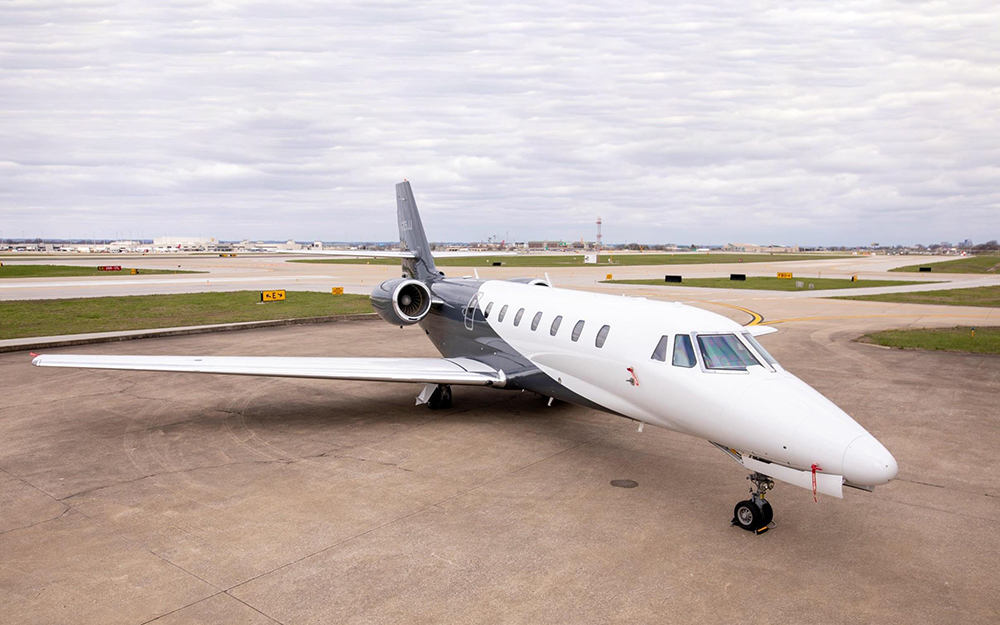

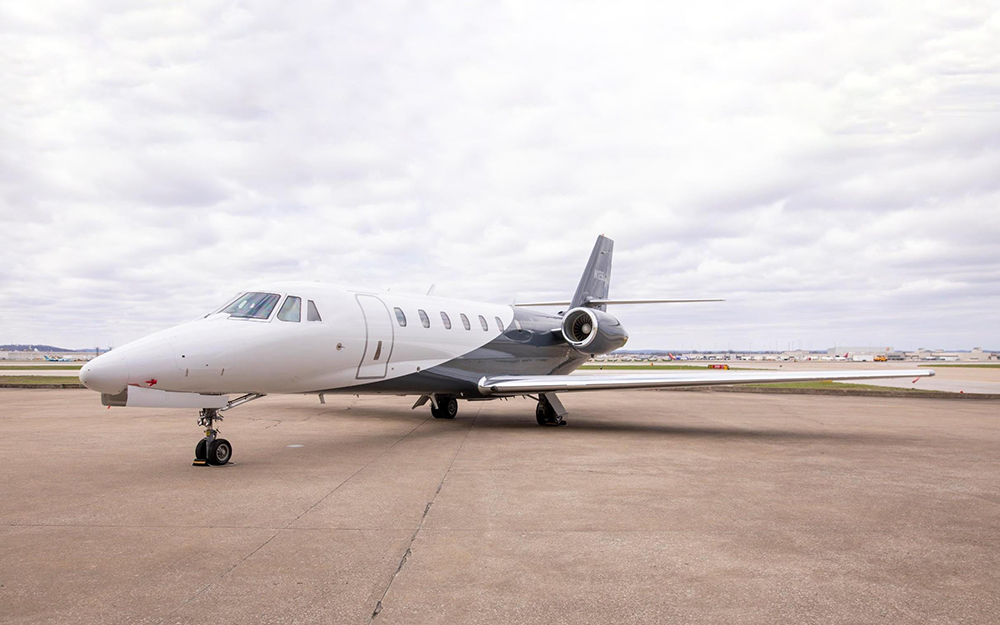

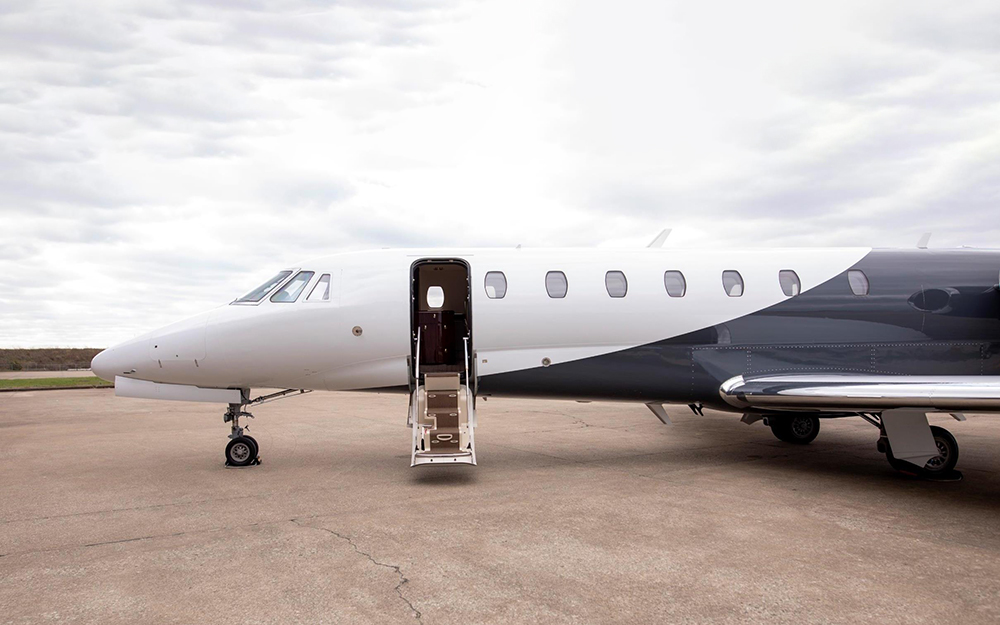

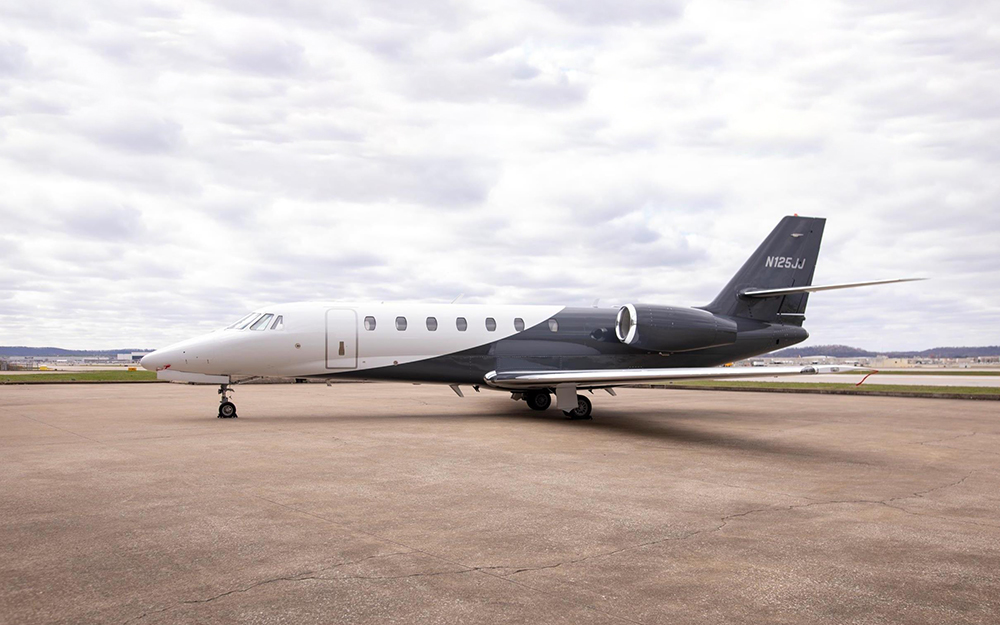

EXTERIOR

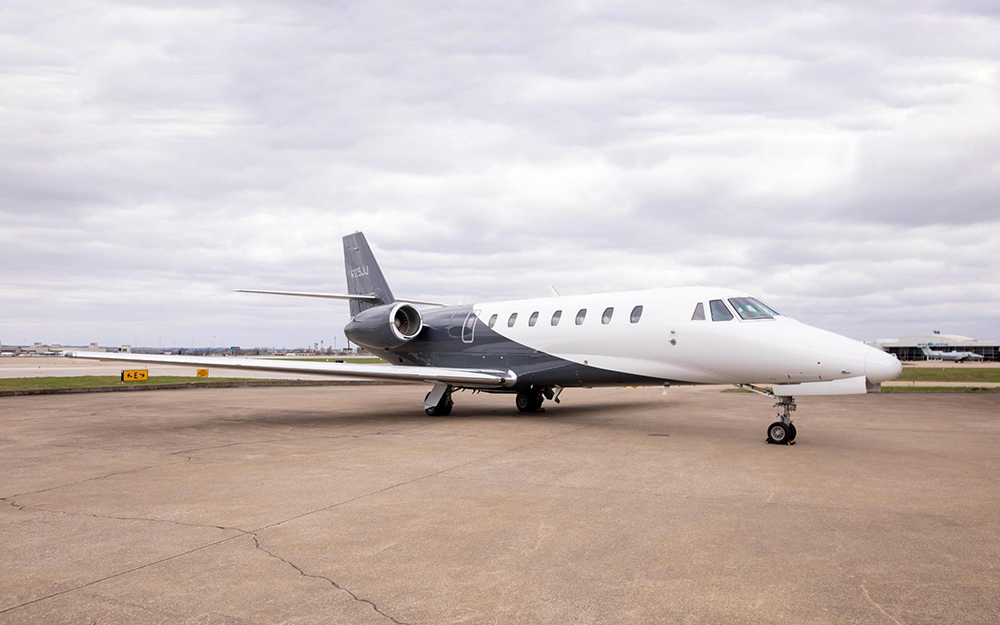

Matterhorn White and Columbia Blue Pearl under the carriage to tail with a Starlight Silver Metallic and Gray Metallic stripe.
Exterior paint completed by Foster’s Paint, Lakeland, FL in 2020
