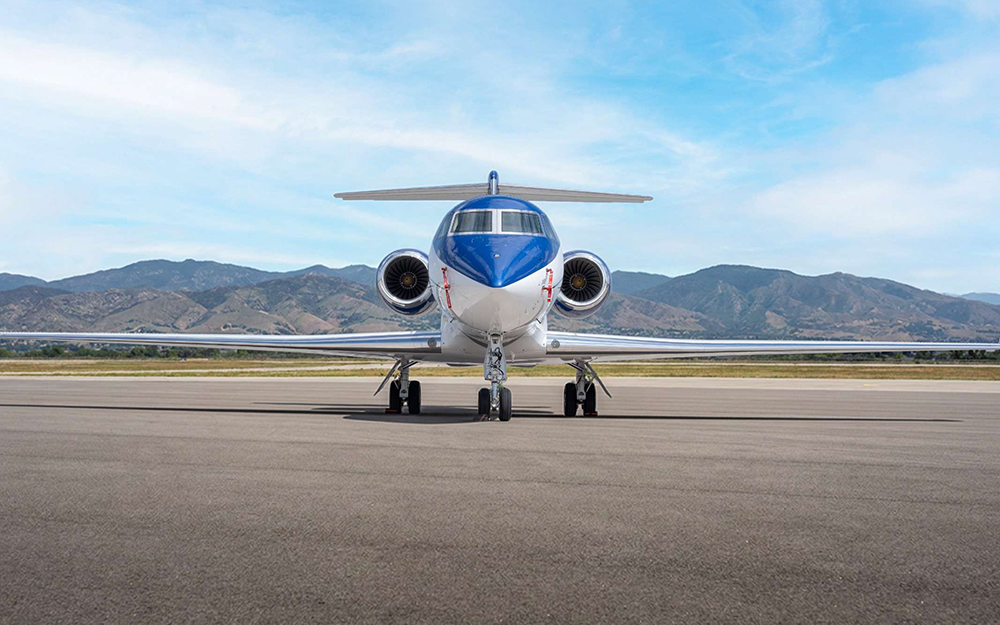

1999 GULFSTREAM GV S/N 502

HIGHLIGHTS

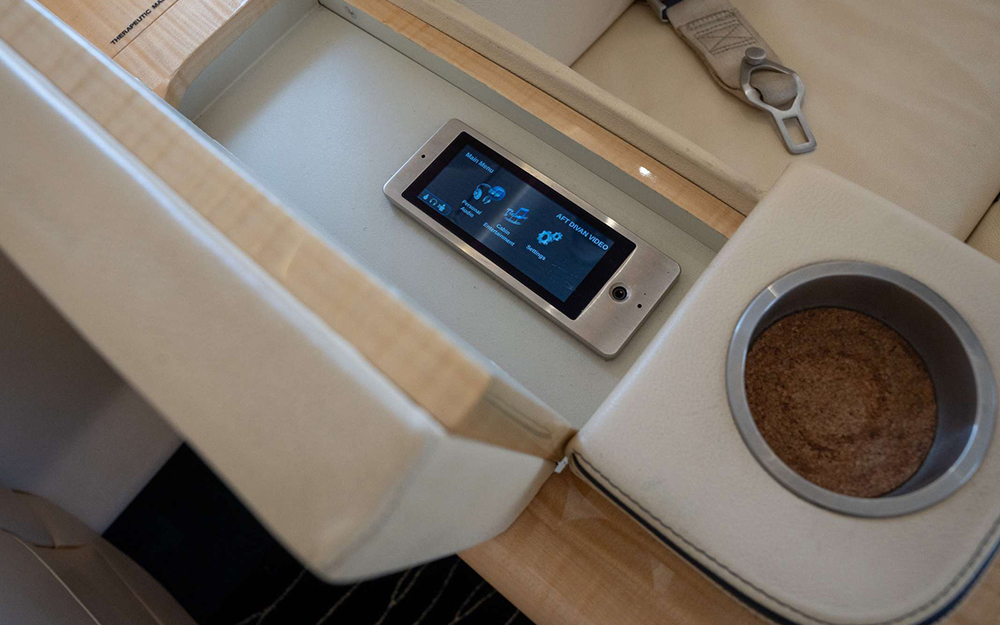

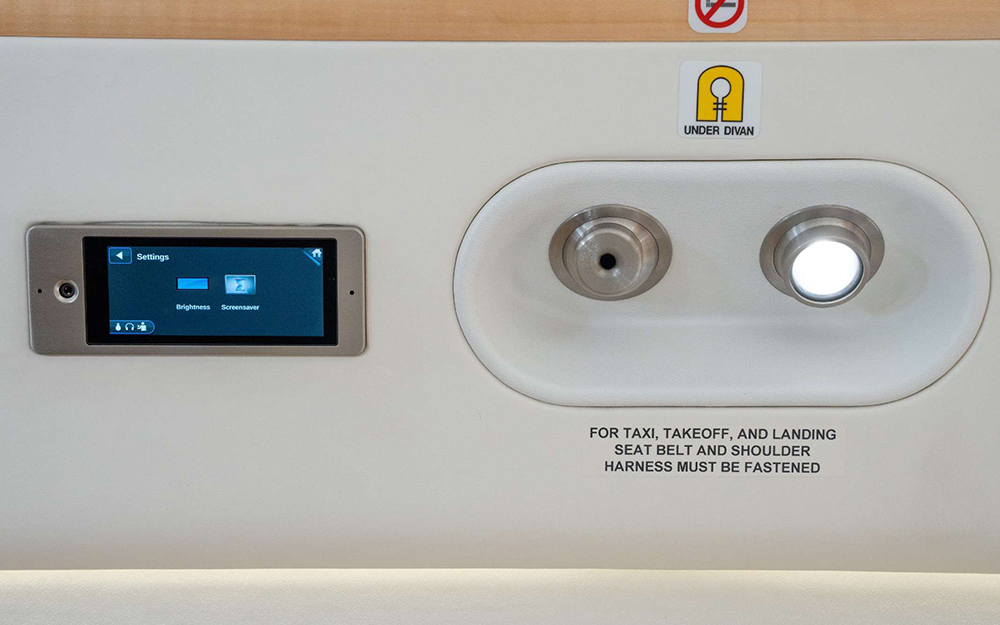

COLLINS VENUE 6000 ENTERTAINM ENT SYSTEM
VIASAT BROADBAND MULTI-LINK CONNECTIVITY
ENHANCED VISION SYSTEM (EVS)
HEADS-UP DISPLAY (HUD )
PLANE DECK DU 885’S
ADS-B OUT EQUIPPED

AIRFRAME

8,263.4 HOURS

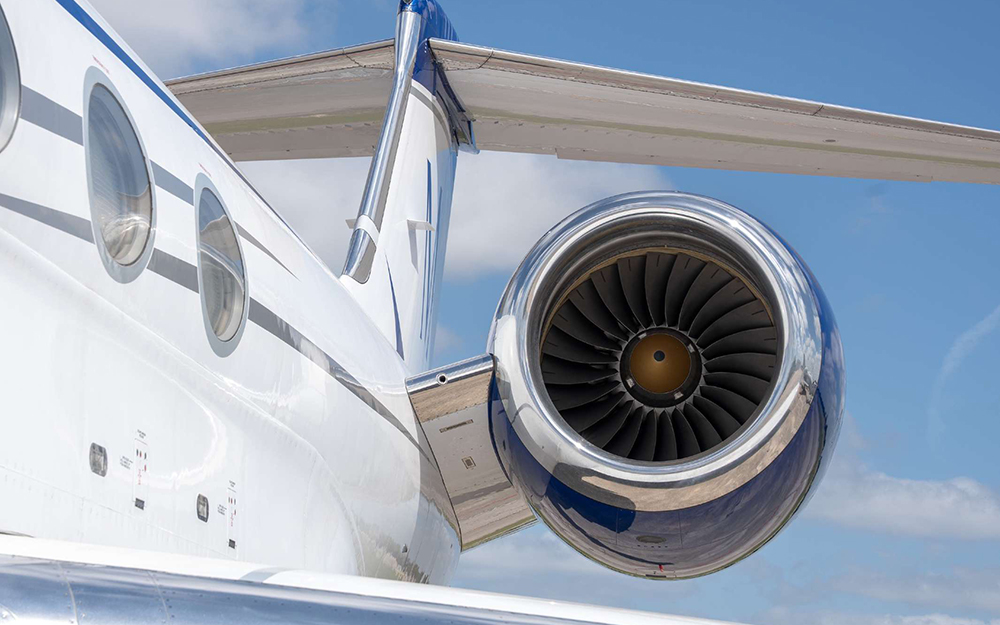

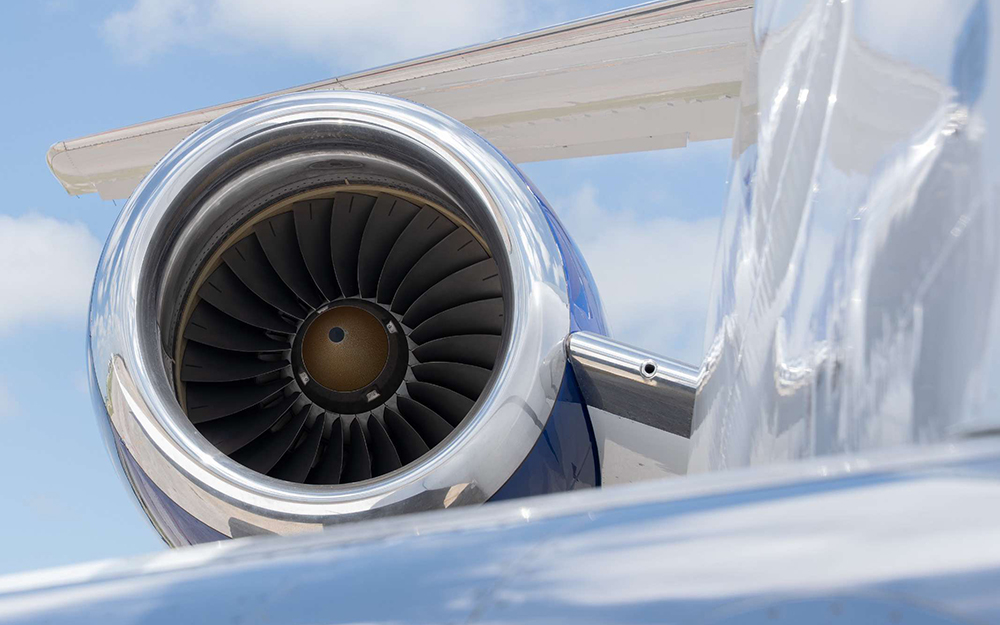

ENGINES

Engine 1
TOTAL TIME: 6,953.6 HOURS
TOTAL CYCLES: 2,766 CYCLES

Engine 2
TOTAL TIME: 7,452.7 HOURS
TOTAL CYCLES: 3,011 CYCLES

APU

6,833.5 HOURS
TOTAL LANDINGS: 3,336

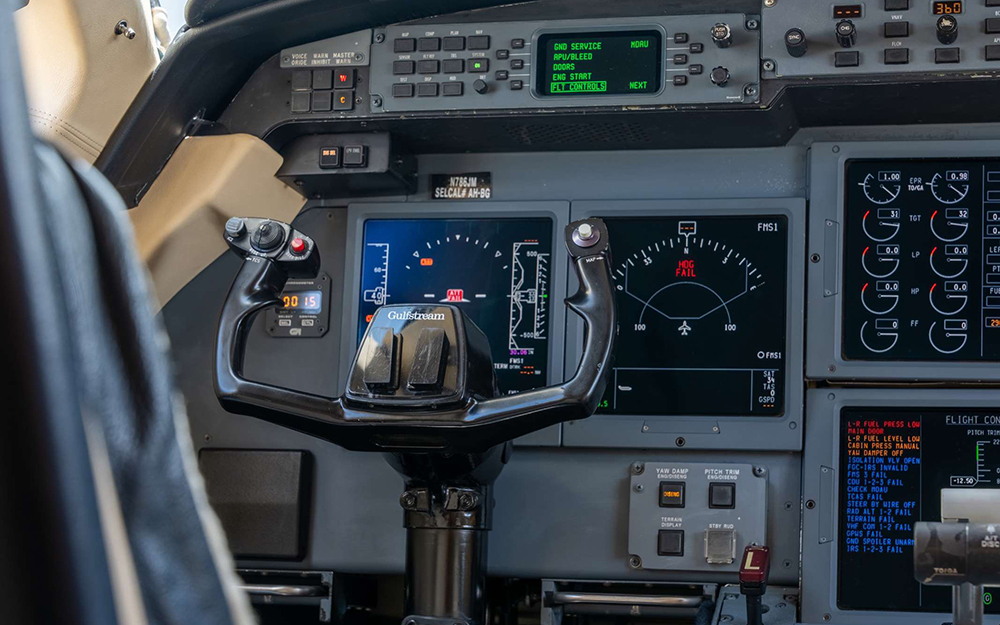

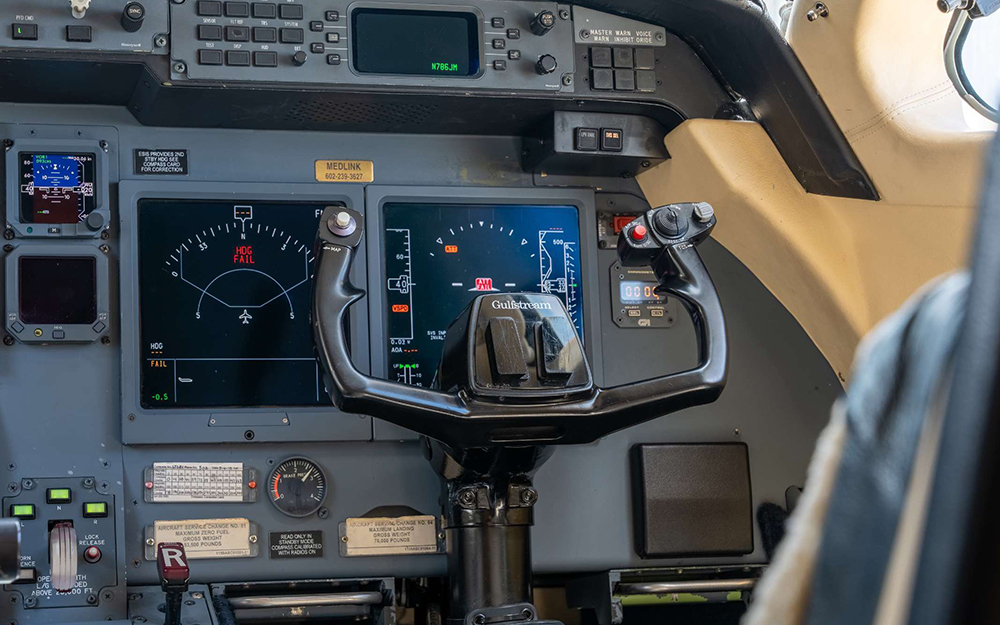

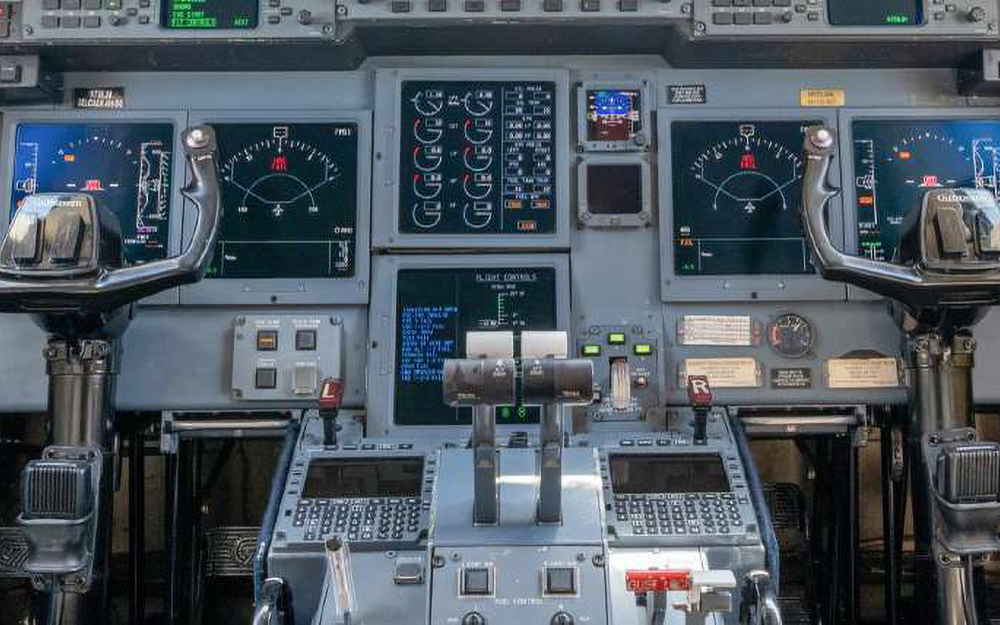

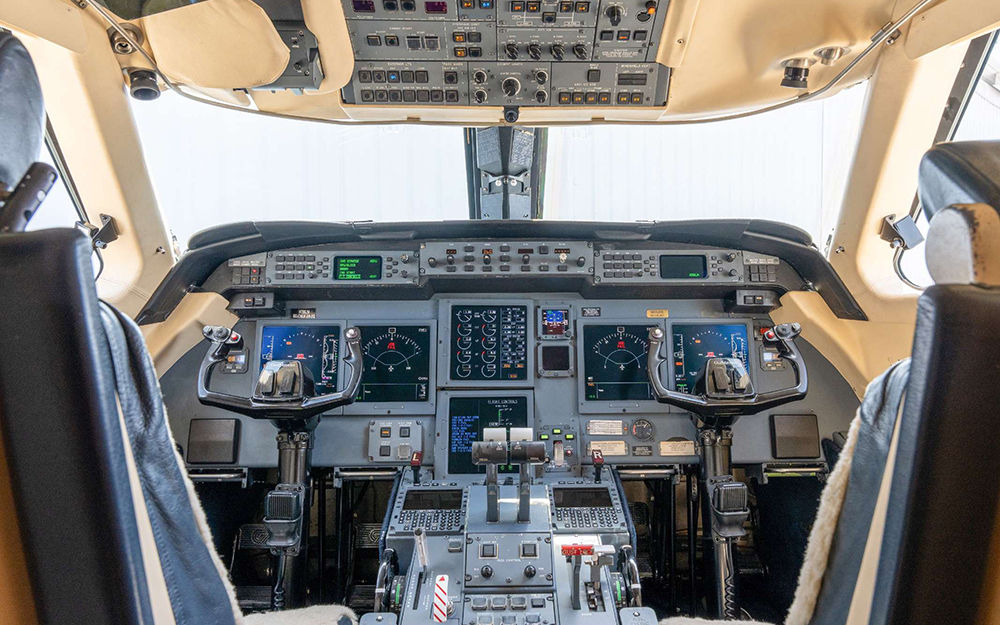

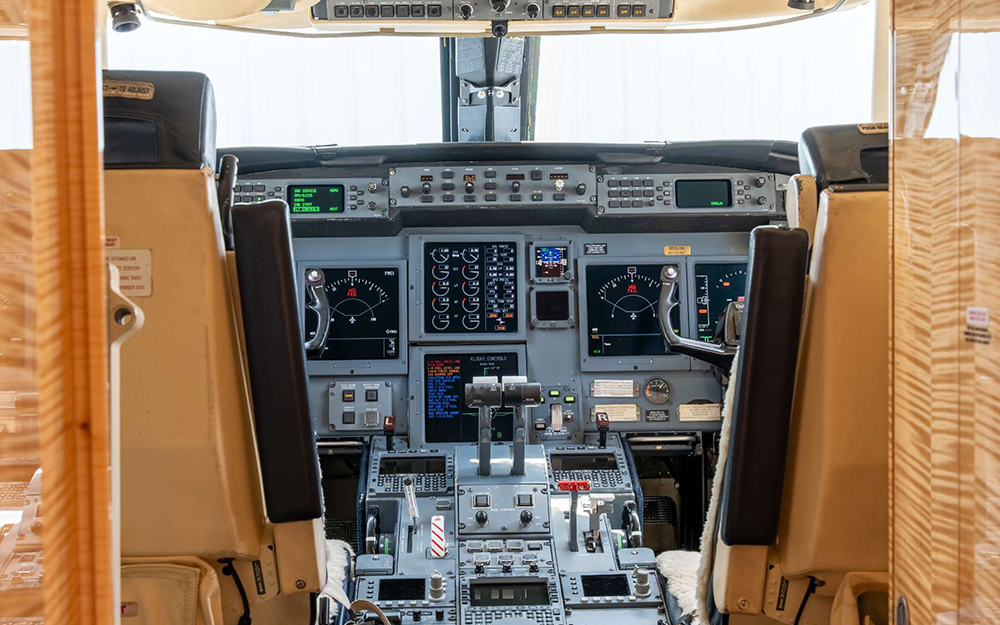

AVIONICS

FLIGHT DIRECTOR: HONEYWELL SPZ-8500
FMS: YES W/6.1 SOFTWARE
GPS: HONEYWELL HG-2021 (12-CHANNEL)
IRS: TRIPLE HONEYWELL HG-2001
TRANSPONDER: COLLINS TDR-94D MODE S
WEATHER RADAR: HONEYWELL PRIMUS 880 W/24-INCH DISH
CPDLC FANS 1/A — COM PLETED BY GULFSTREAM SAVANNAH 2019
SYNTHETIC VISION SYSTEM (SVS) — UPGRADED BY GULFSTREAM SAVANNAH 2024/2025
KU-BAND INTERNET CAPABLE — UPGRADEABLE TO KA-BAND
ADF: COLLINS ADF-462 | DME: COLLINS DME-442
HF: COLLINS H F-9034A | RADAR ALTIM ETER: HONEYWELL RT-300

STANDARD EQUIPMENT

ENHANCED VISION SYSTEM
GULFSTREAM COMPUTERIZED MAINTENANCE PROGRAM (GCMP)
SATCOM
RVSM
COCKPIT VOICE RECORDER
FLIGHT DATA RECORDER
8.33 CHANNEL SPACING
AUXILIARY POWER UNIT
TERRAIN AWARENESS & WARNING SYSTEM
TRAFFIC COLLISION AVOIDANCE SYSTEM
THRUST REVERSERS
WEATHER RADAR

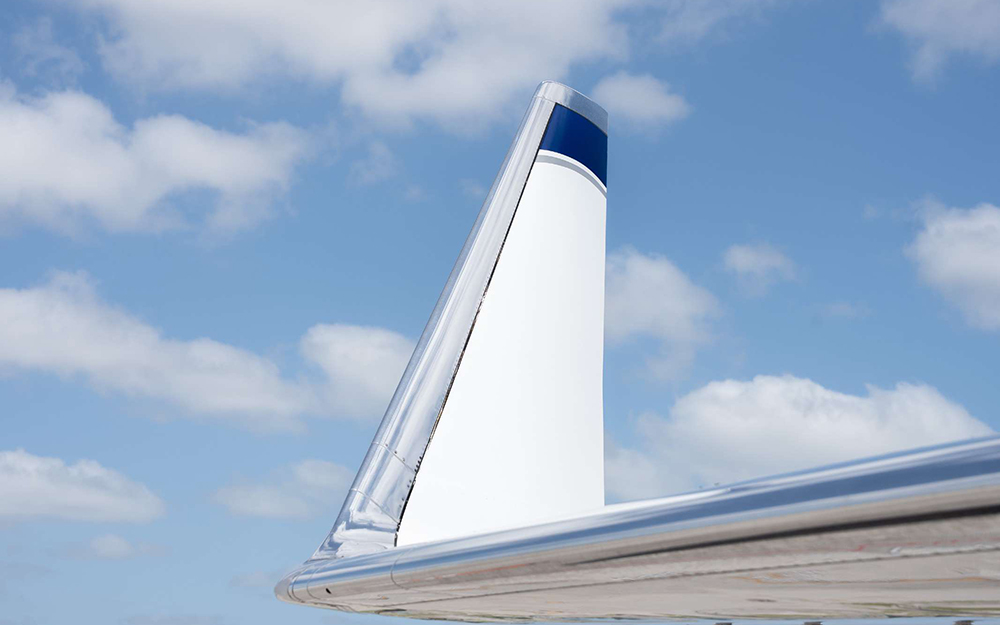

WINGLETS
EMERGENCY LOCATOR TRANSMITTER

ADDITIONAL EQUIPMENT

COCKPIT: ADS-B OUT, HEADS-UP DISPLAY, DUAL
HONEYWELL IC-800E INTEGRATED AVIONICS COMPUTERS,NZ COMPUTER, TRIPLE HONEYWELL AZ-840 MICRO AIR DATA COMPUTERS, TRIPLE HONEYWELL CD-820 CONTROL DATA UNITS
EQUIPMENT: EXTERNAL CAMERA

PROGRAMS

APU ENROLLED ON HONEYWELL MSP GOLD
AVIONICS ENROLLED ON HONEYWELL MSP AVIONICS
AIRFRAME ENROLLED ON CASP
MAINTENANCE TRACKING ON G-CMP

UPGRADES

KU-BAND INTERNET CAPABLE — UPGRADEABLE TO KA-BAND
ADS-B OUT MANDATE COMPLIANT — COMPLETED BY GULFSTREAM SAVANNAH 2019
CPDLC FANS 1/A COMPLIANT — COMPLETED BY GULFSTREAM SAVANNAH 2019
SYNTHETIC VISION UPGRADE — COMPLETED BY GULFSTREAM SAVANNAH 2024/2025
PART 2 TAIL CORROSION INSPECTION COMPLETED BY GULFSTREAM SAVANNAH 2024/2025

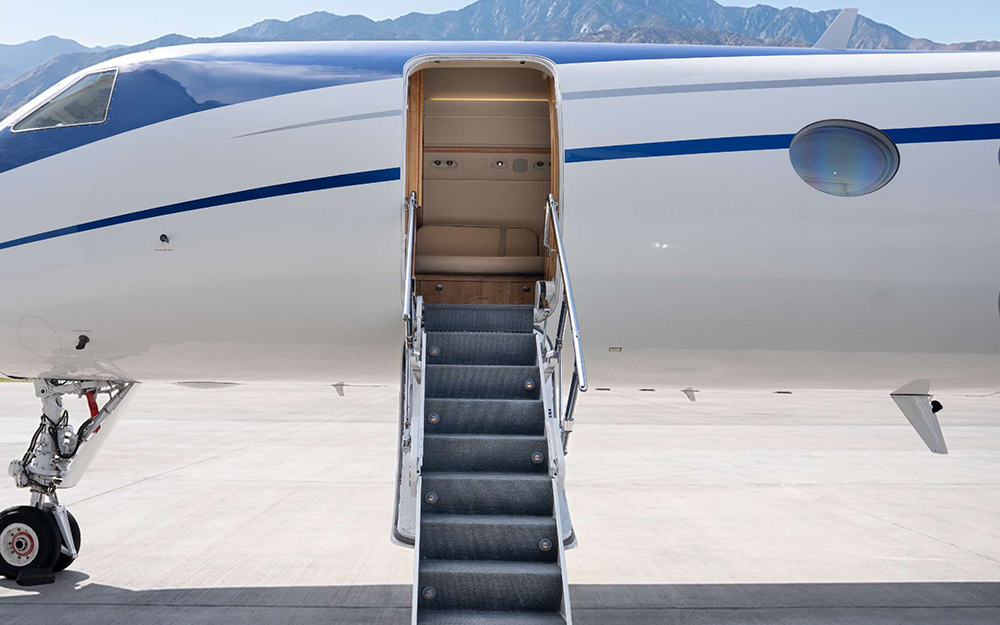

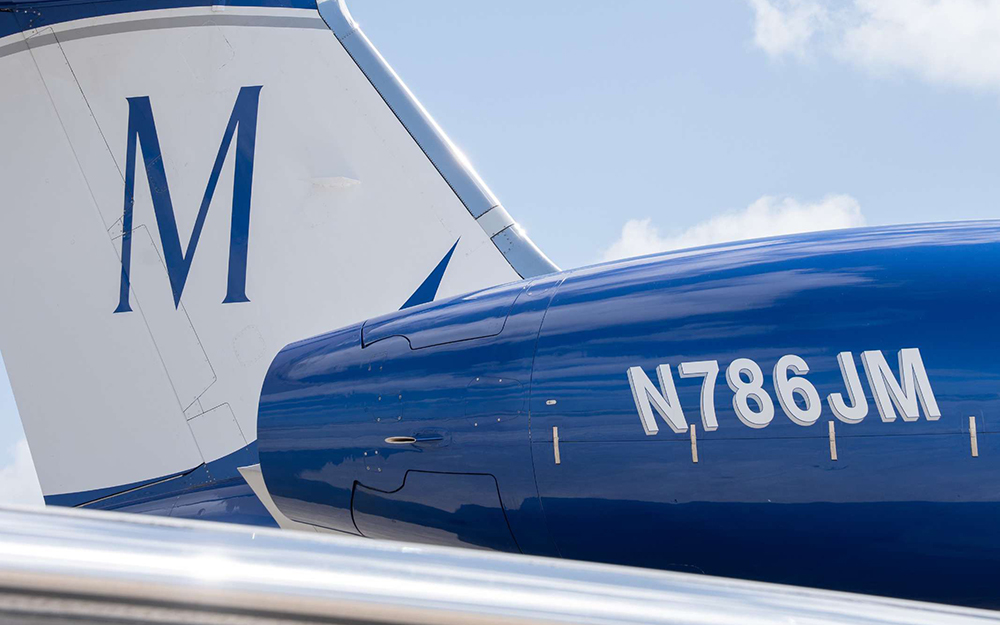

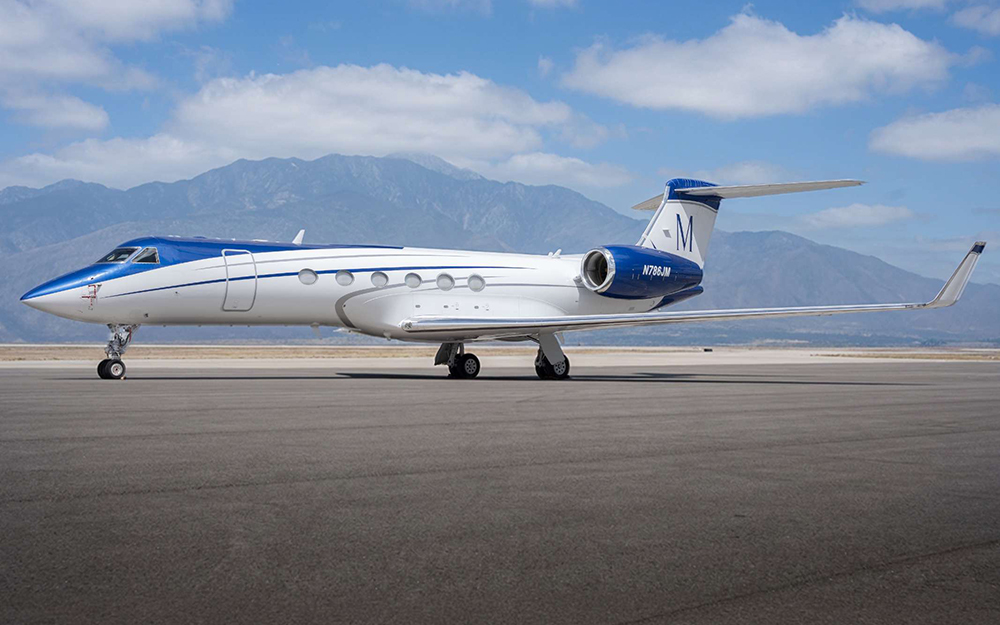

EXTERIOR

WHITE BASE WITH ROYAL BLUE ACCENT STRIPING

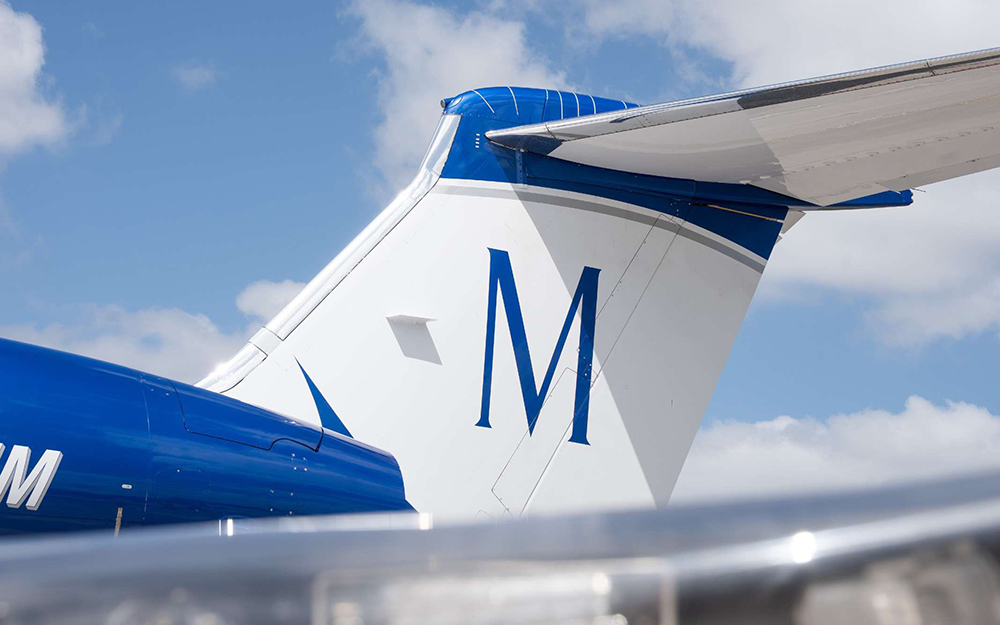

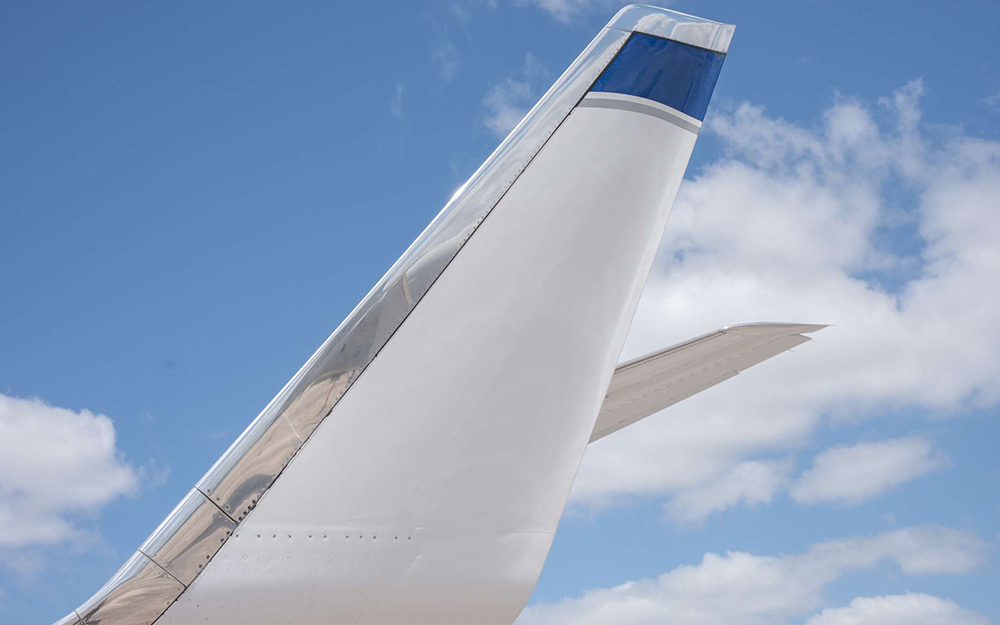

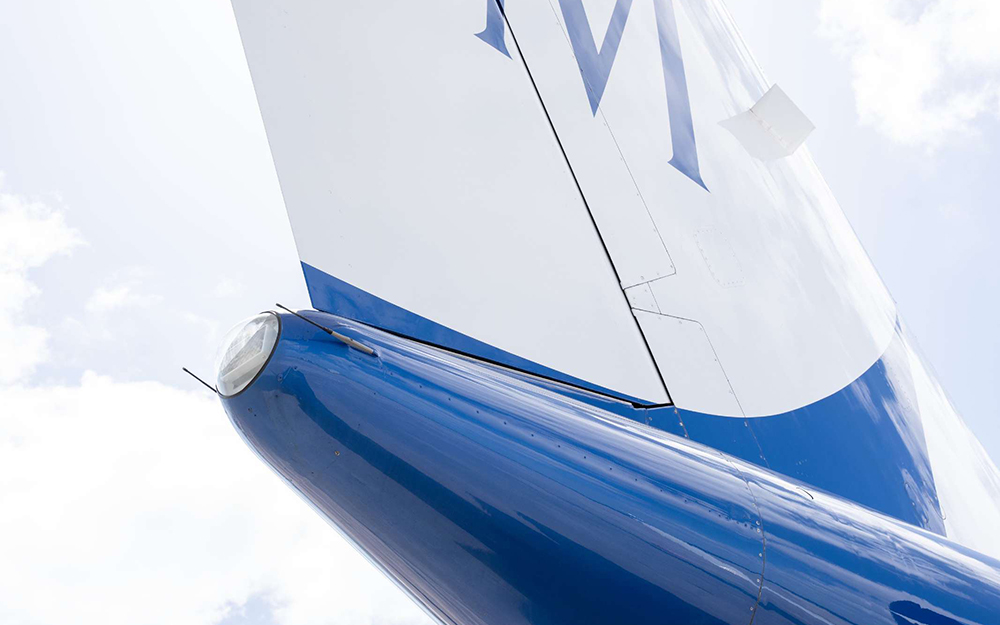

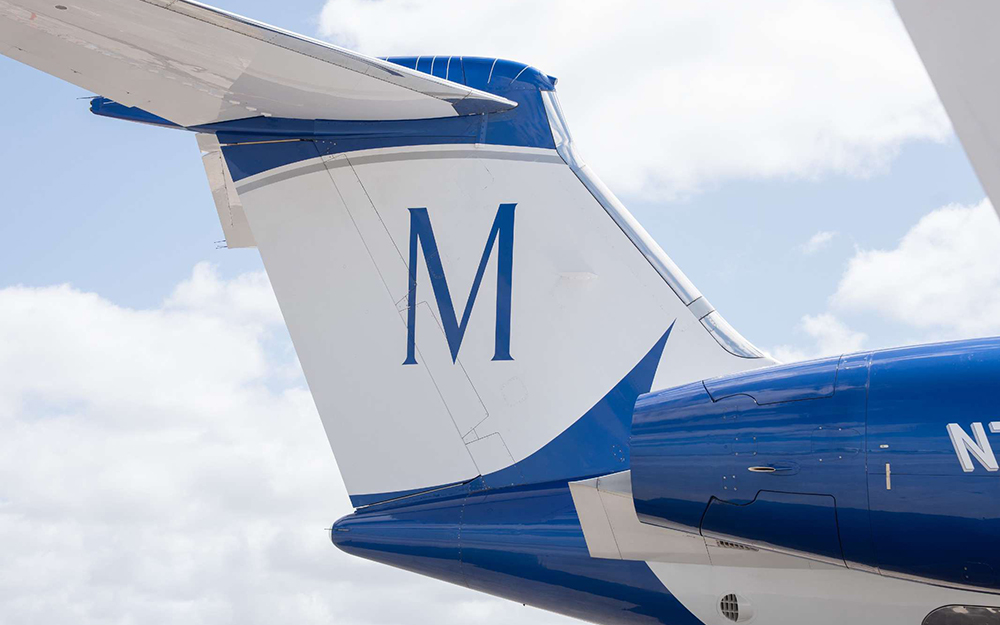

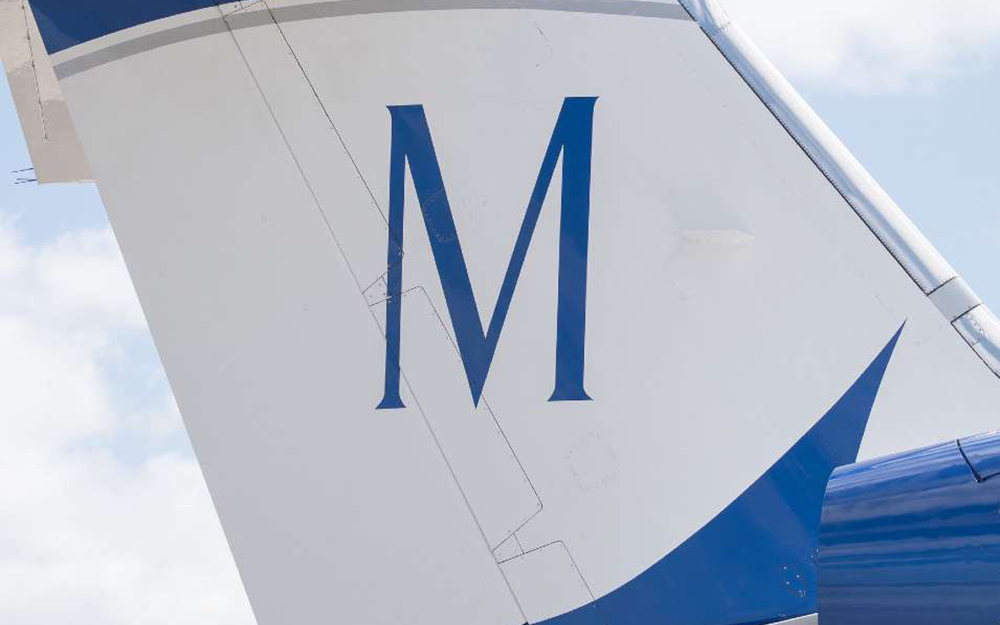

BLUE TAIL WITH CORPORATE LOGO DETAIL
PAINTED IN 2019 BY GULFSTREAM
