2020 BOMBARDIER GLOBAL 6500 S/N 60016
Price
Price On Request
Description
HIGHLIGHTS
7500 Interior Styling w/ Patented Nuage Seats
Increased Range & Performance vs. 6000
Ka-Band Internet
13 Passengers Configuration
AIRFRAME
| Total Time Since New | 568 Hours (As of January 2023) |
| Total Landings Since New | 173 Landings |
| Entry into Service Date | September 17, 2020 |
| Program Coverage | Available |
| Current Location | Bombardier – London Biggin Hill |
ENGINES
| Left Engine | Right Engine | |
| Description | Rolls-Royce BR700-710D5-21 | |
| Serial Number(s) | 56023 | 56022 |
| Total Time Since New | 568 Hours | 568 Hours |
| Total Cycles Since New | 173 Cycles | 173 Cycles |
| Program Coverage | Available | Available |
APU
| Description | Honeywell RE220 (GX) |
| Serial Number | P-1023 |
| APU Total Time Since New | 725 Hours |
| APU Cycles | 517 Cycles |
| Program Coverage | Available |

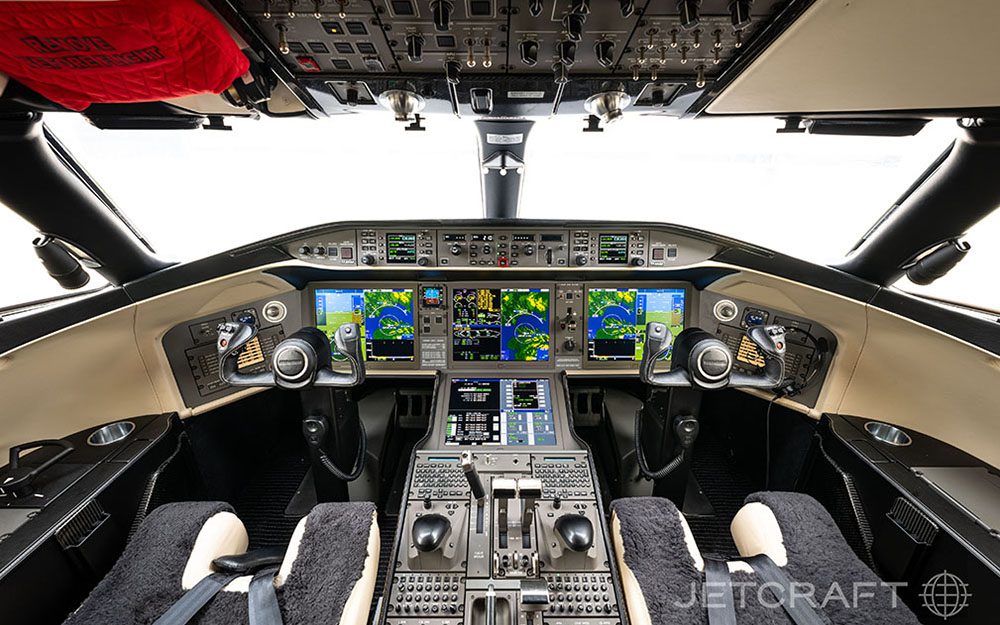

AVIONICS
The Bombardier Global 6500 is equipped with an integrated, Rockwell Collins Pro-Line Fusion Avionics suite. A general summary of this aircraft’s avionics suite is as follows:
| Type of Unit | Quantity | Unit Description |
| EFIS (Electronic Flight Instrument System) | Quad | Collins AFD-6520 |
| FMS (Flight Management System | Triple | Collins Integrated |
| ADC (Air Data Computers) | Triple | Collins ADC-3020 |
| GPS (Global Positioning System) | Dual | Collins GPS-4000S |
| NAV (Navigation Radio) | Dual | Collins NAV-4000 |
| DME (Distance Measuring Equipment) | Dual | Collins DME-4000 |
| IRU (Inertial Reference System) | Triple | Honeywell LASEREF VI |
| HUD (Heads Up Display) | Single | Bombardier |
| EVS (Enhanced Vision System) | Single | Bombardier |
| SVS (Synthetic Vision System) | Single | Collins SVM-6110H |
| VHF COM (Very High Freq. Communication) | Triple | Collins VHF-4000 |
| HF COM (High Freq. Communications) | Dual | Collins HF-9031A |
| SATCOM (Satellite Communications) | Single | Collins SDU-2200 |
| WX RAD (Weather Radar) | Single | Collins RTA-4118 |
| LDS (Lightning Detection System) | Single | L3 Harris WX-1000E |
| RADIO ALT (Radio Altimeter) | Dual | Collins ALT-4000 |
| XPNDR (Transponder) | Single | Collins TDR-94D |
| TSS (Traffic Surveillance System) | Single | Collins TSS-4100 |
| CVR (Cockpit Voice Recorder | Single | L3 Harris FA2100 |
| FDR (Flight Data Recorder) | Single | L3 Harris FA2100 |
| ELT (Emergency Locator Transmitter) | Single | Artex B406-4 |
| QAR (Quick Access Recorder) | Single | Collins QAR-100 |
ENTERTAINMENT
| Monitors | Forward and Aft Bulkhead |
| Airshow System | Rockwell Collins |
| Cabin Management System | Rockwell Collins Venue |
CONNECTIVITY
| Internet | Ka-Band |
| Phone System | Dual Channel Iridium System |

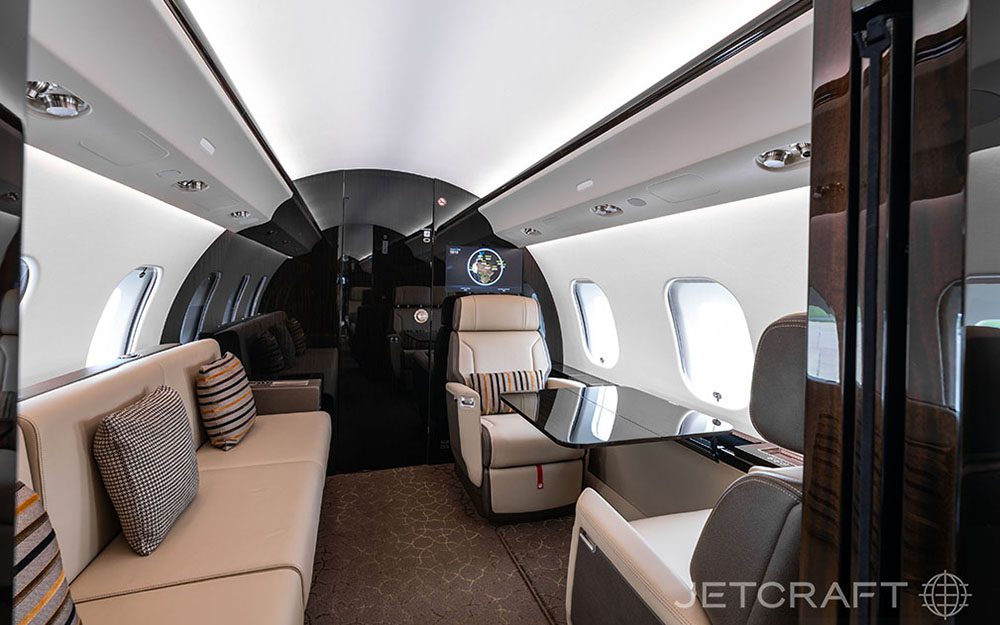

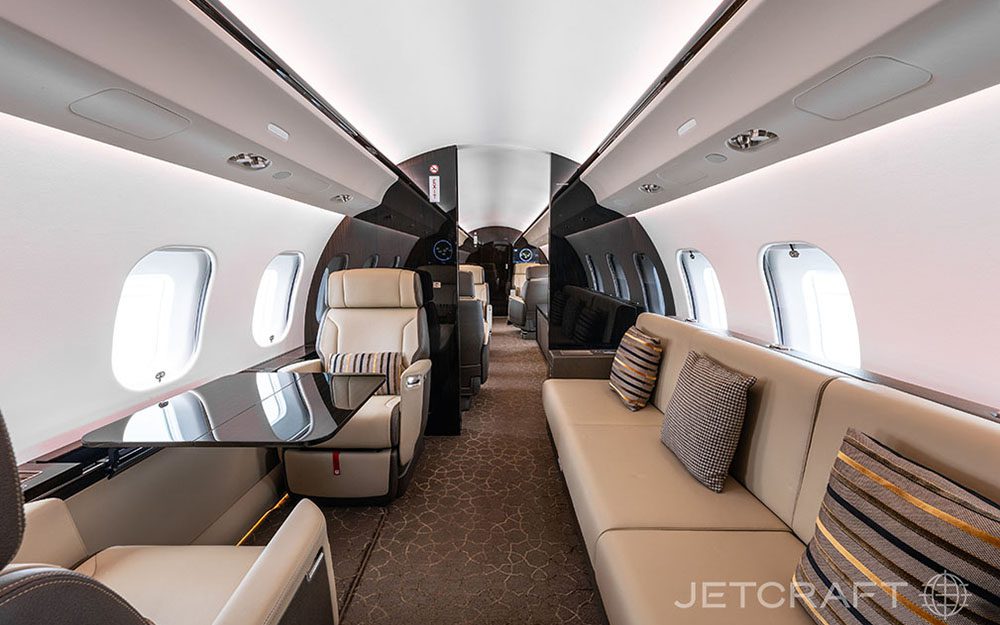

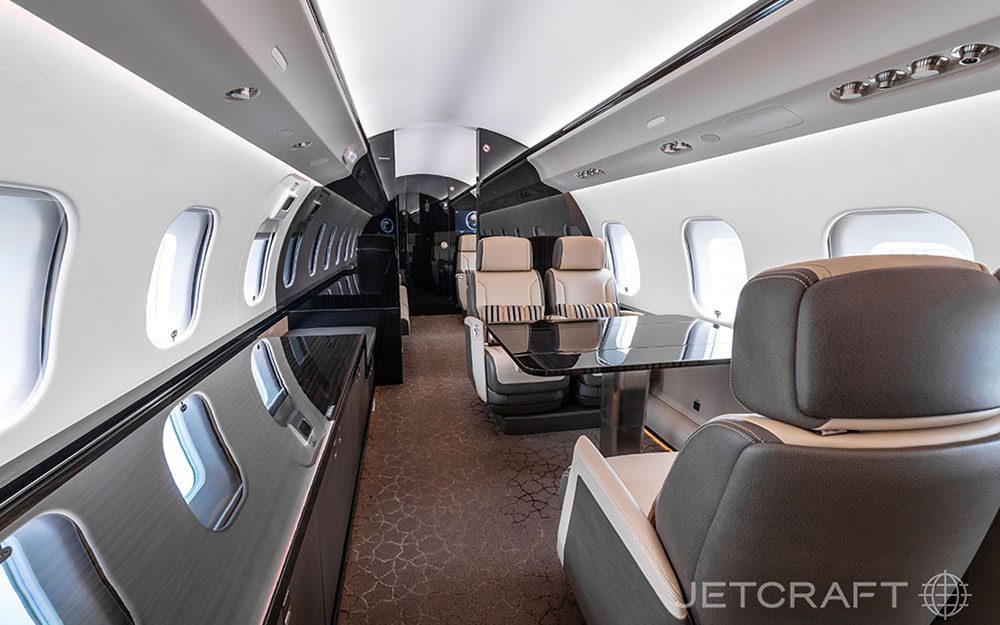

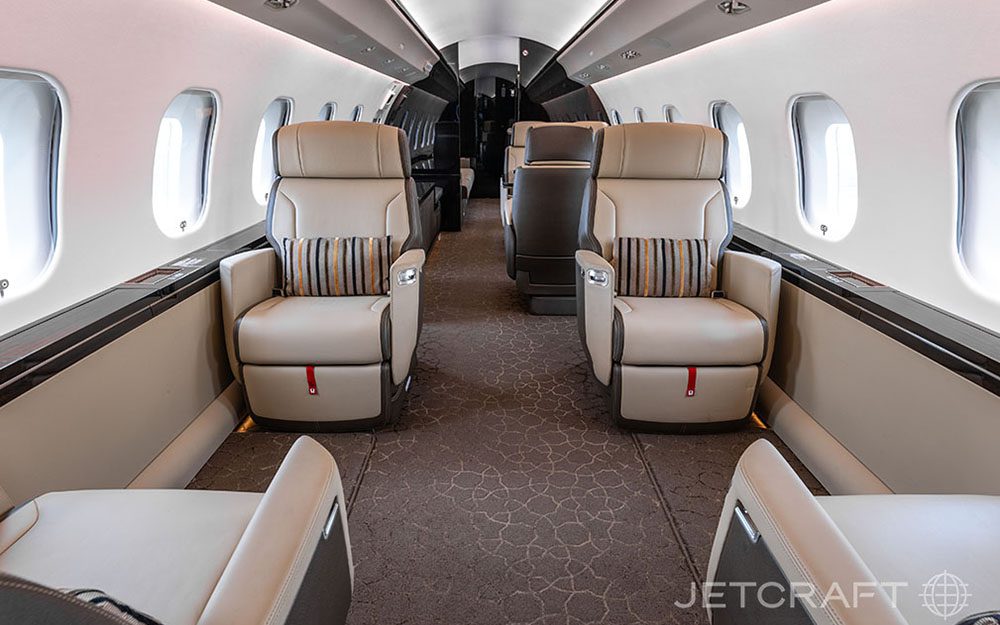

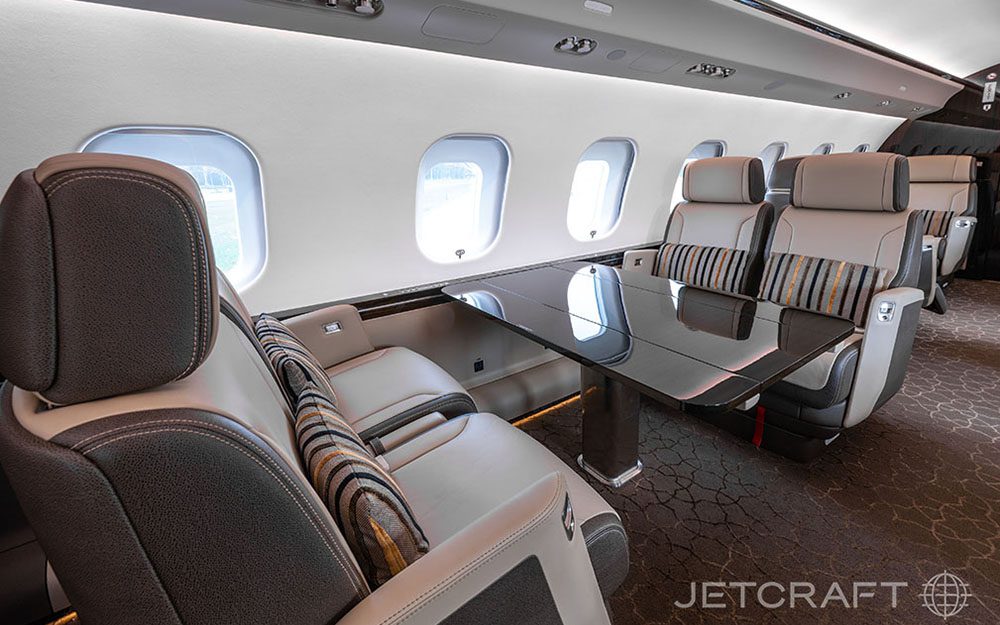

INTERIOR
| Number of Passengers | Thirteen (13) |
| Galley Location | Forward |
| Forward Cabin Configuration | Four (4) Place Executive Club with Pullout Tables |
| Mid Cabin Configuration | Four (4) Place Conference Grouping Opposite a Credenza |
| Aft Cabin Configuration | Two (2) Place Executive Club Opposite a Three (3) Place Divan (Forward divan seat not certified for taxi, takeoff or landing when removable cabin bulkhead is installed) |
| Lavatory Location(s) | Forward Crew and Aft Executive |
| Crew Rest | Forward |
| Jumpseat | Yes |
| Galley Equipment | Combination Microwave/Convection Oven, Steam Oven, and Air Chiller |

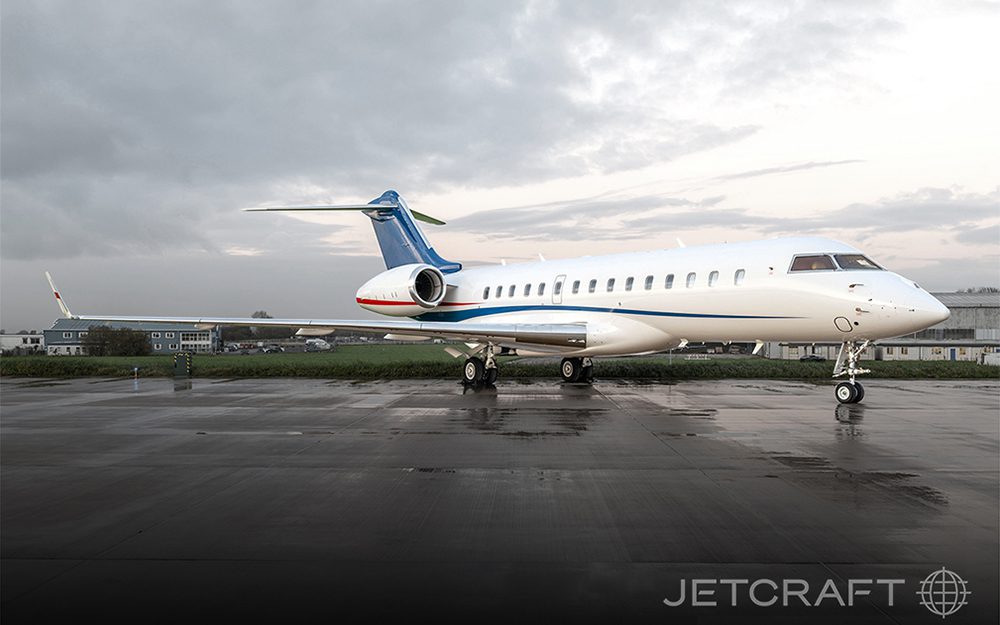

EXTERIOR
| Base Paint Color | Matterhorn White |
| Stripe Colors | Sapphire Blue and Toreador Red |
