2008 BOMBARDIER GLOBAL XRS S/N 9254
Price
Price On Request
Description
HIGHLIGHTS
Fully Enrolled on Programs
180 Month Underway at Duncan Aviation
New Carpet and Lower Sidewall Replacement Underway
Jet Connex – Ka-Band
Crew Force Measuring System
AIRFRAME
| Total Time Since New | 2,807 Hours (As of January 10, 2023) |
| Total Landings Since New | 1,130 Landings |
| Certification Date | July 17, 2007 |
| Entry into Service Date | April 29, 2008 |
| Current Location | Duncan Aviation – Lincoln, Nebraska |
| Program Coverage | Bombardier Smart Parts |
| Maintenance Tracking | CAMP |
ENGINES
| Left Engine | Right Engine | |
| Description | Rolls Royce BR700-710A2-20 | |
| Serial Number(s) | 12617 | 12618 |
| Total Hours Since New | 2,807 Hours | 2,807 Hours |
| Total Cycles Since New | 1,130 Cycles | 1,130 Cycles |
| Program Coverage | Rolls Royce Corporate Care | |
APU
| Description | Honeywell RE220 |
| Serial Number | P-378 |
| APU Total Time Since New | 3,082 Hours |
| APU Total Cycles Since New | 2,750 Cycles |
| Program Coverage | Honeywell MSP |
AVIONICS

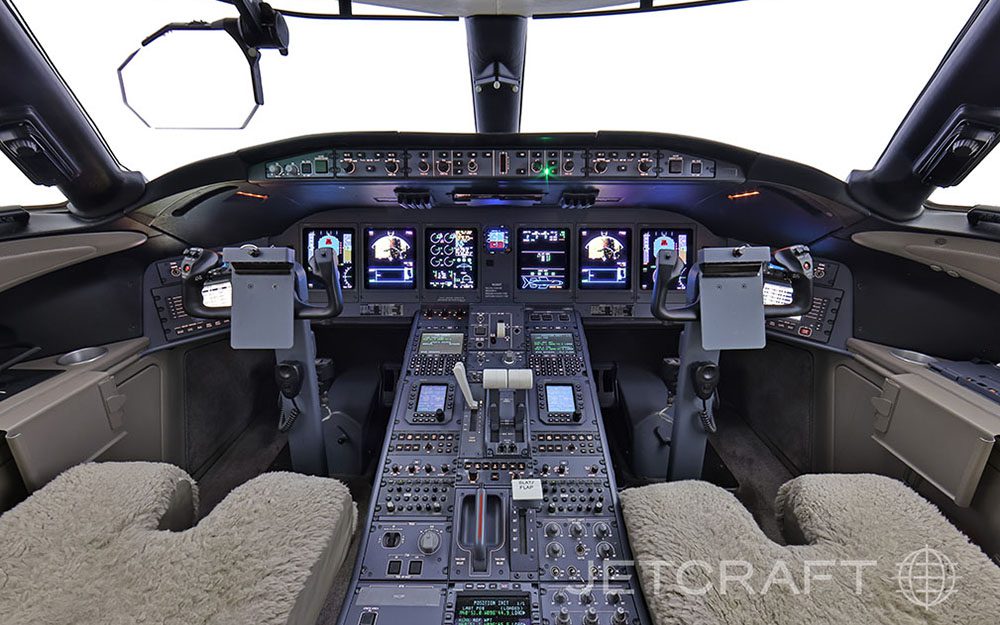

The Bombardier Global XRS is equipped with an integrated, Honeywell Primus 2000XP avionics suite. A general summary of this aircraft’s avionics suite is as follows:
| Type of Unit | Quantity | Unit Description |
| EFIS (Electronic Flight Instrument System) | Six-Tube | Honeywell DU-870 |
| FMS (Flight Management System) | Triple | Honeywell NZ-2000 |
| CDU (Central Display Unit) | Triple | Honeywell CD-820 |
| IRS (Inertial Reference System) | Triple | Honeywell LASEREF |
| GPS (Global Positioning System) | Dual | Honeywell |
| MADC (Micro Air Data Computer) | Triple | Honeywell AZ-950 |
| NAV (Navigation Radio) | Dual | Honeywell RZ-851 |
| IAC (Integrated Avionic Computer) | Triple | Honeywell IC-810 |
| HUD (Head Up Display) | Single | Bombardier Head Up Display |
| EVS (Enhanced Vision System) | Single | Bombardier Enhanced Vision System |
| VHF COM (Very High Freq. Communications) | Triple | Honeywell RCZ-833M (Dual) and RCZ-833 (Single) |
| HF COM (High Freq. Communications) | Dual | Collins HF-9031A |
| SATCOM (Satellite Communications) | Single | Collins SRT-2100 |
| WRADAR (Weather Radar) | Single | Honeywell RDR-7000 |
| RADAR ALT (Radar Altimeter) | Dual | Collins ALT-4000 |
| XPNDR (Transponder) | Dual | Honeywell RZ-851 |
| EGPWS (Enhanced Ground Proximity Warning System) | Single | Honeywell Mark V EGPWS |
| TCAS (Traffic Collision Avoidance System) | Single | TCAS 2000 |
| CVR (Cockpit Voice Recorder) | Single | Honeywell SSCVR |
| FDR (Flight Data Recorder) | Single | Honeywell SSFDR |
| ELT (Emergency Locator Transmitter) | Single | Artex |
MAJOR INSPECTION STATUS
| Inspection | Last Performed | Next Due |
| 15 Month | December 2021 | Underway at Duncan Aviation |
| 30 Month | October 2020 | Underway at Duncan Aviation |
| 60 Month | December 2018 | Underway at Duncan Aviation |
| 120 Month | December 2018 | April 2028 |
| 180 Month | – | Underway at Duncan Aviation |
NOTEABLE SERVICE BULLETINS
| SB700-11-020 – Increased Maximum Take-Off Weight (MTOW) to 99,500 lbs. |
| SB700-31-034 Rev 2 – Batch 3.3 Avionic Software Upgrade |
| SB700-34-053 Rev 3 – FANS 1/A+ and RNP 4 |
| SB700-34-054 Rev 2 – Introduction of SBAS with LPV Approach Capability |
| SB700-31-020 Rev 2 (Part A & B) Flight Data Recording System – Installation of the Force Transducer Units and Activation of the Crew Force Measuring System |
ENTERTAINMENT
| Displays | Forward and Aft Bulkhead Displays |
| Airshow System | Collins Airshow w/ Moving Maps |
CONNECTIVITY
| Phone System | Iridium ICS-200 System |
| Internet | Jet ConneX – Ka-Band |
INTERIOR
| Number of Passengers | Fourteen (14) |

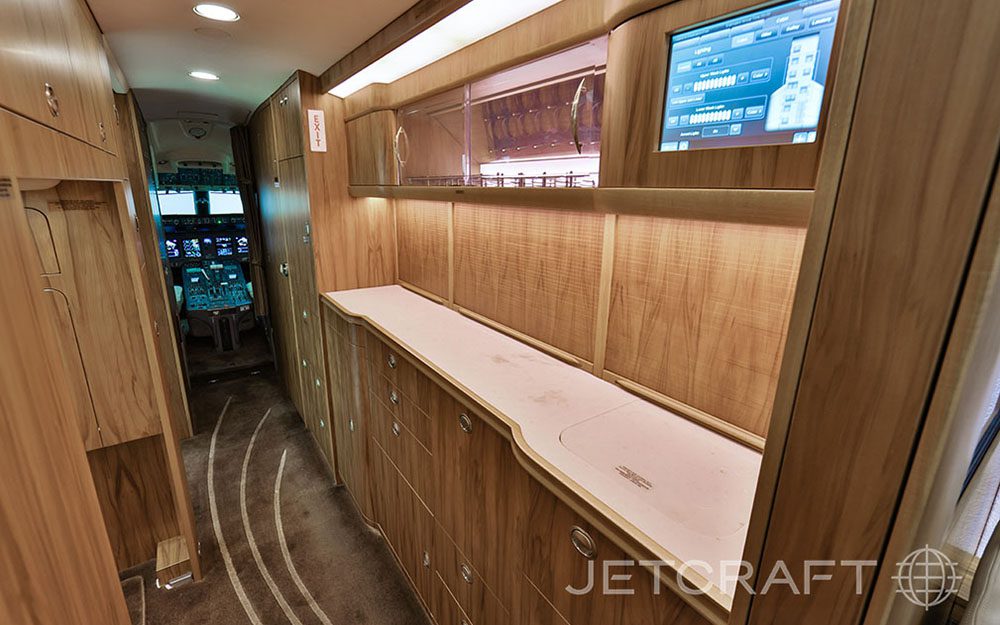

| Galley Location | Forward |

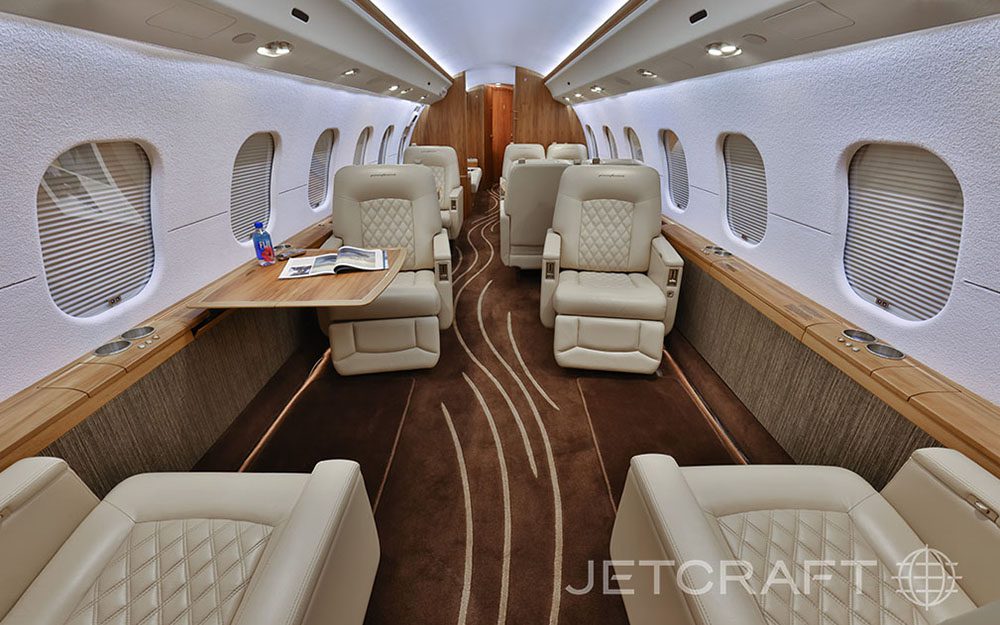

| Forward Cabin Configuration | Four (4) Place Double Club |

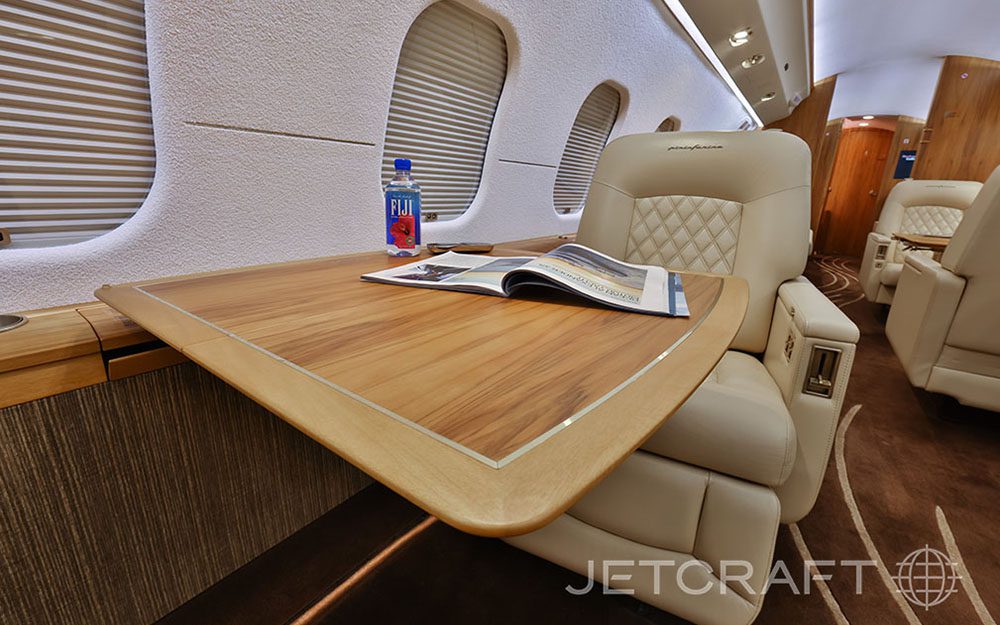

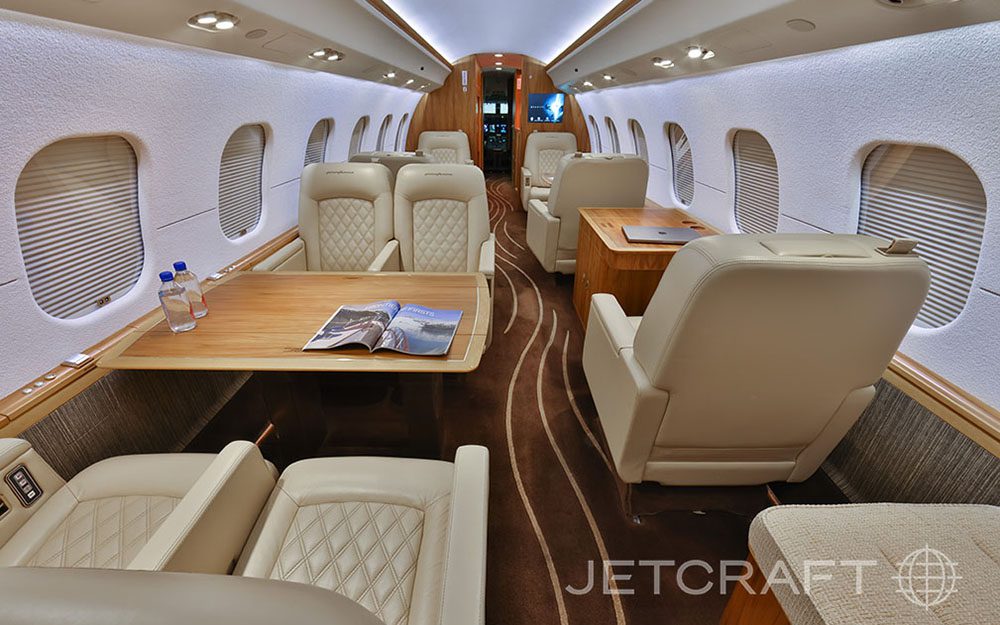

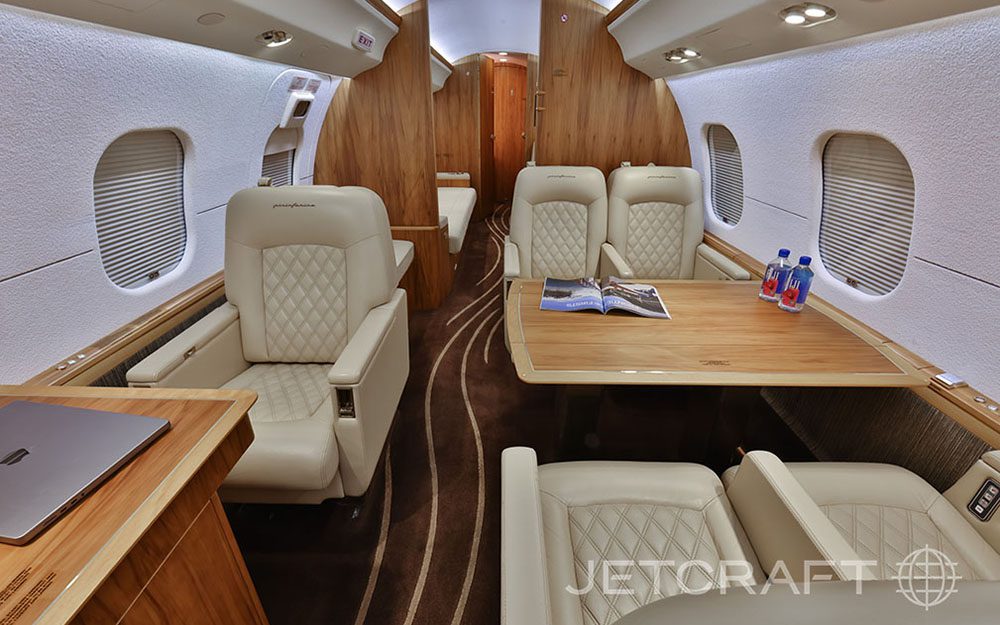

| Mid Cabin Configuration | Four (4) Place Conference Group Opposite One (1) Single Seat w/ Workstation |

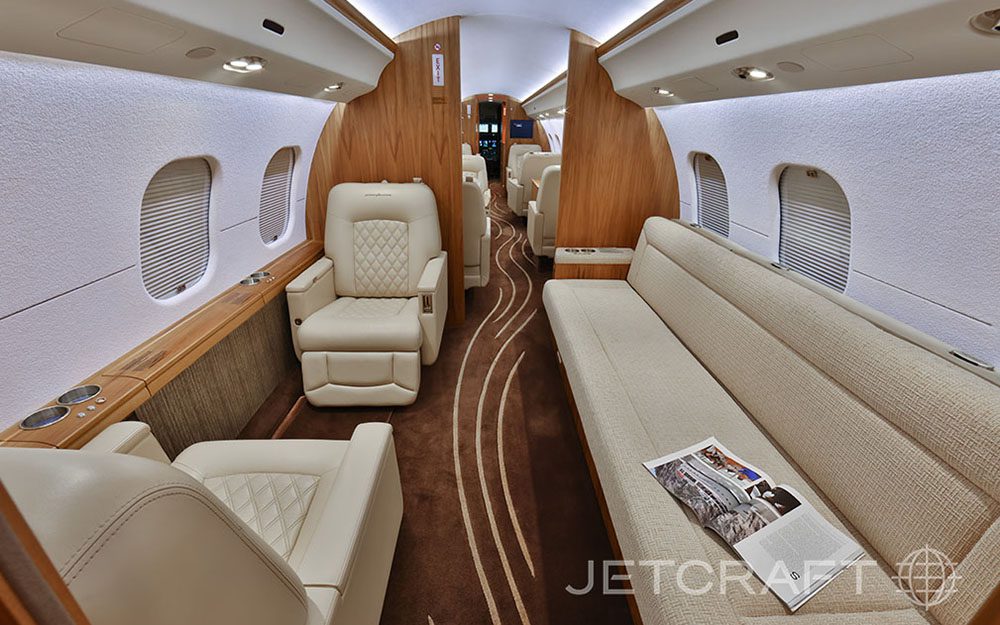

| Aft Cabin Configuration | Two (2) Place Club Opposite a Three (3) Place Divan (When Mid-Cabin Bulkhead is removed) |
| Sleeping Configuration | Four (4) Jet Beds For Sleeping Up To Six (6) Passengers |
| Lavatory Location(s) | Forward Crew and Aft Executive |
| Crew Rest | Forward |
| Last Refurbishment | Cabin Woodwork Refurbishment in August 2015 at Ruag |

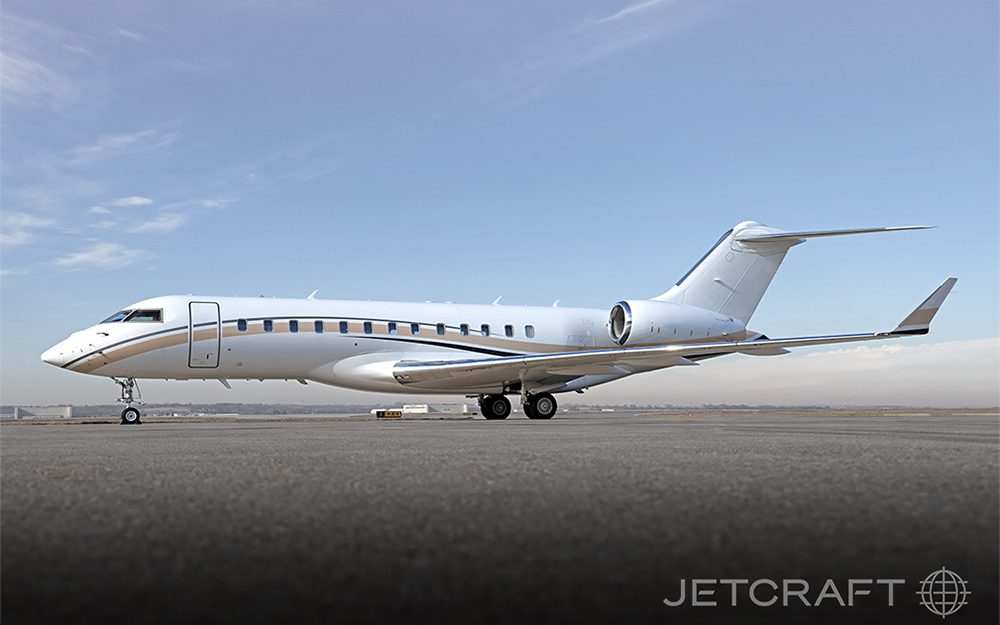

EXTERIOR
| Base Paint Color(s) | Overall White |
| Stripe Color(s) | Beige and Gray |
| Last Refurbishment | Original Completion |
